Complete Control Valve Body Assembly: Disassembly

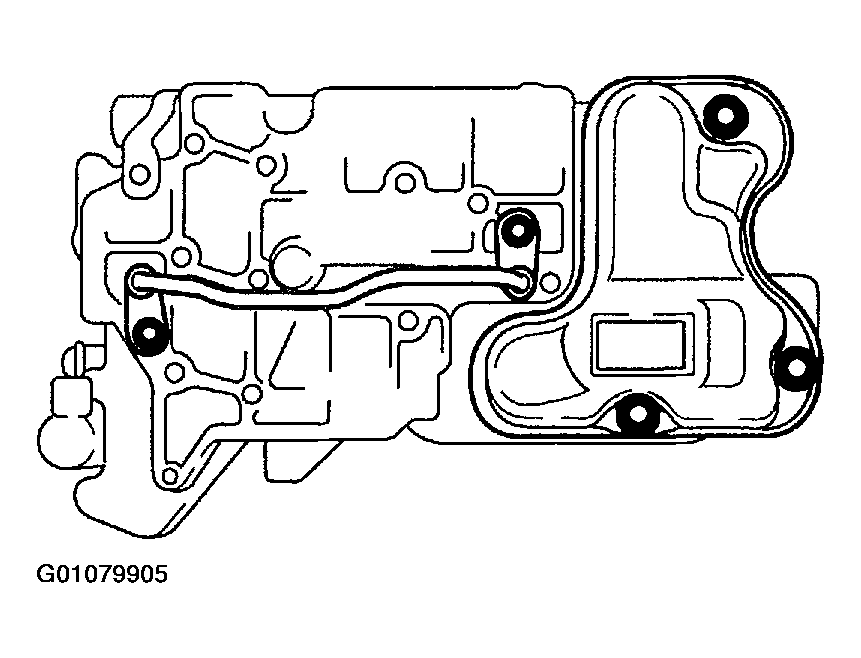

Remove oil pipe assembly.
Remove O-rings from oil pipe assembly.

Fig 1: Removing Oil Pipe Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Remove shift solenoid A.
Remove torque converter clutch solenoid valve and oil strainer.

Fig 2: Removing Torque Converter Clutch Solenoid Valve And Oil Strainer
Courtesy of KIA MOTORS AMERICA, INC.
Remove shift solenoids B and C.

Fig 3: Removing Shift Solenoids B And C
Courtesy of KIA MOTORS AMERICA, INC.
Remove linear solenoid valve.

Fig 4: Removing Linear Solenoid Valve
Courtesy of KIA MOTORS AMERICA, INC.

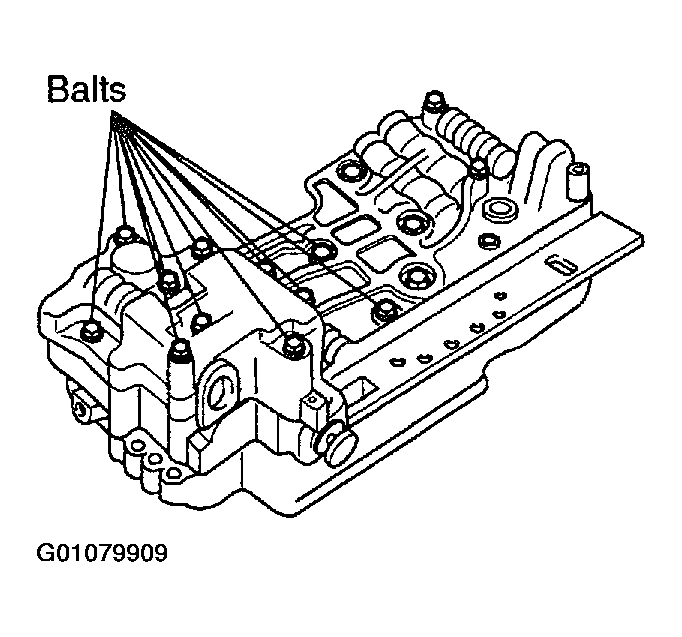

Remove nine bolts of upper control valve body.

Fig 5: Removing Upper Control Valve Body
Courtesy of KIA MOTORS AMERICA, INC.
Remove two screws from upper control valve body.
Remove gasket B, upper separator plate, oil filter, oil strainer and gasket A.

Fig 6: Removing Gasket B, Upper Separator Plate, Oil Filter, Oil Strainer And Gasket A
Courtesy of KIA MOTORS AMERICA, INC.

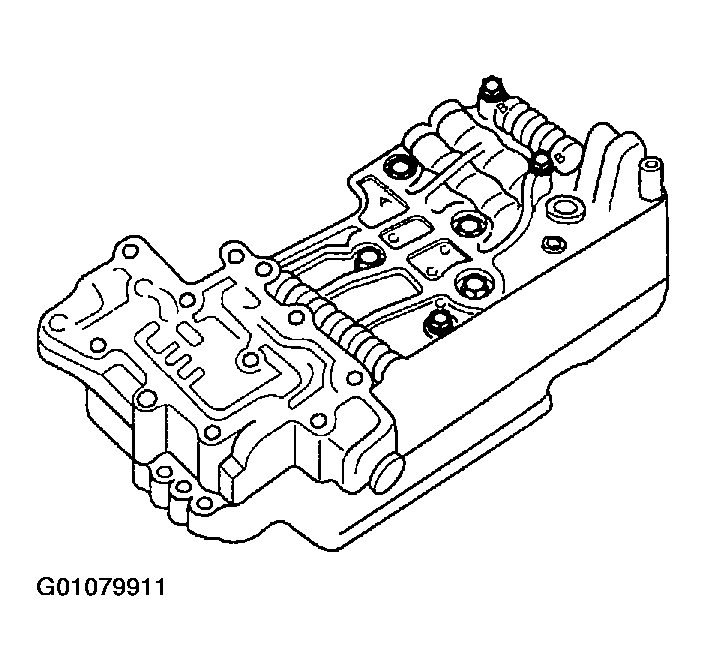

Remove seven main control valve body bolts, and remove main control valve.

Fig 7: Removing Main Control Valve
Courtesy of KIA MOTORS AMERICA, INC.

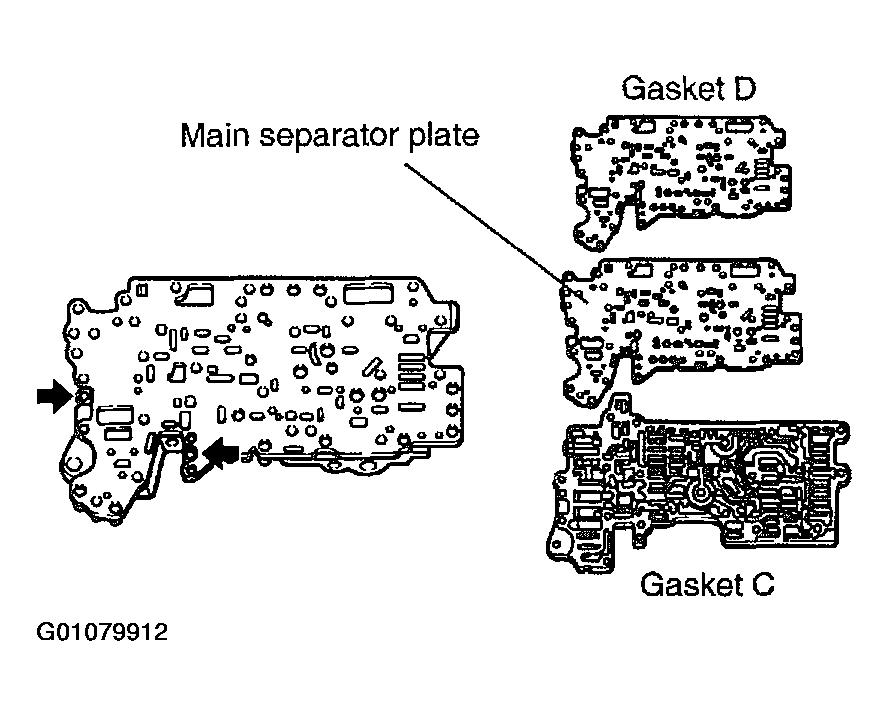

Remove gasket D, main separator plate and gasket C.

Fig 8: Removing Gasket D, Main Separator Plate And Gasket C
Courtesy of KIA MOTORS AMERICA, INC.

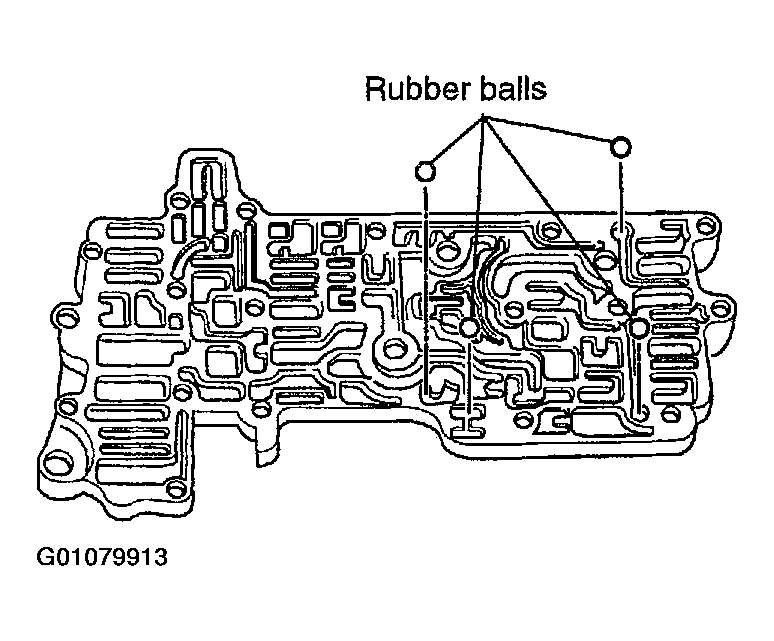

Remove four rubber balls from main control valve body.

Fig 9: Remove Four Rubber Balls From Main Control Valve Body
Courtesy of KIA MOTORS AMERICA, INC.

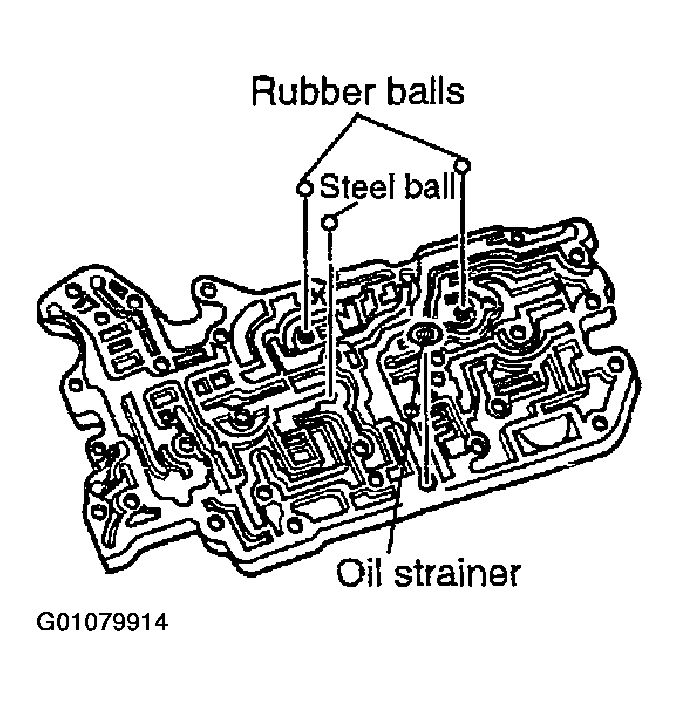

Remove oil strainer and two rubber balls from premain control valve body.

Fig 10: Removing Oil Strainer And Two Rubber Balls From Premain Control Valve Body
Courtesy of KIA MOTORS AMERICA, INC.

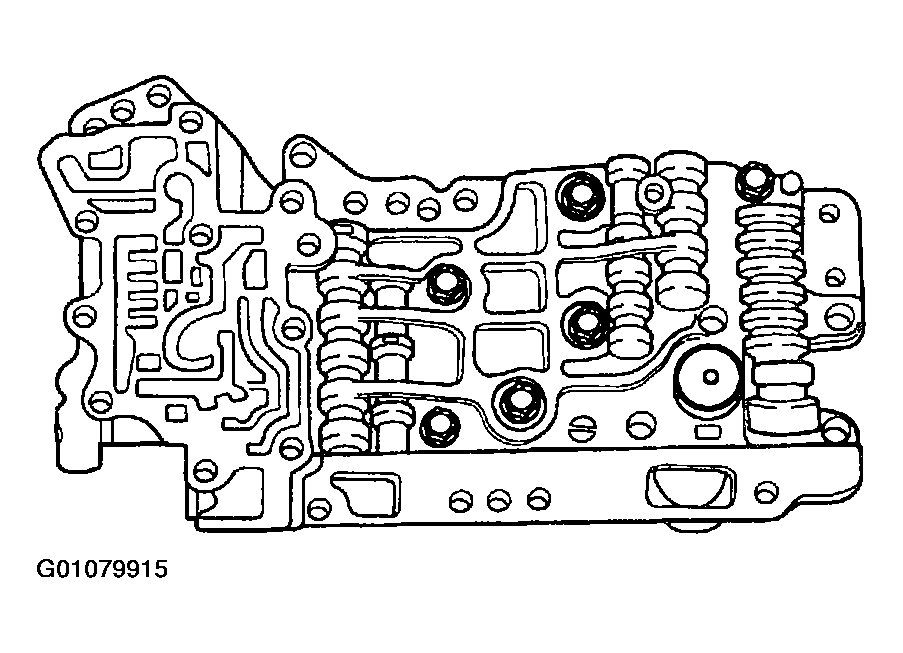

Remove six bolts, then remove premain control valve body.

Fig 11: Remove Premain Control Valve Body
Courtesy of KIA MOTORS AMERICA, INC.
Remove gasket E, lower separator plate, oil filter and gasket R.

Fig 12: Removing Gasket E, Lower Separator Plate, Oil Filter And Gasket R
Courtesy of KIA MOTORS AMERICA, INC.

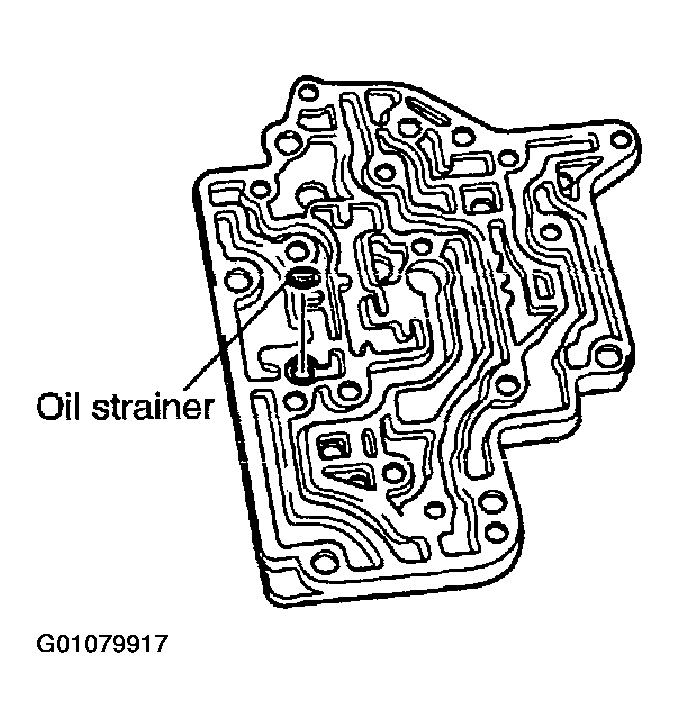

Remove oil strainer from lower control valve body.

Fig 13: Removing Oil Strainer From Lower Control Valve Body
Courtesy of KIA MOTORS AMERICA, INC.
