Emergency Override Button

WARNING: Service with engine OFF.
  1. Verify that the selector lever is locked in P range.
  2. Remove cap covering emergency access hole and insert a screwdriver into access hole, then push screwdriver.
  3. Depress lock release button and move shift lever.
  4. If not as specified, inspect and repair as necessary.

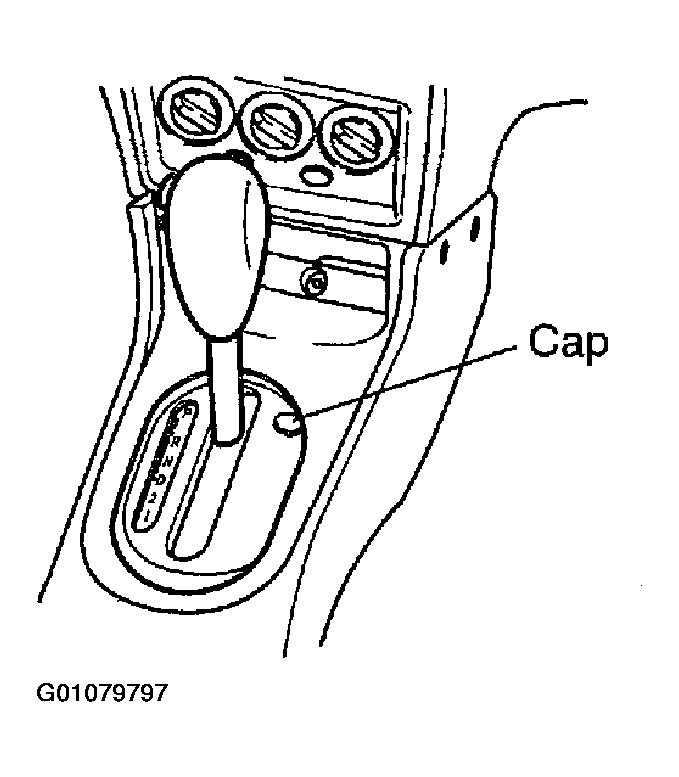

    Fig 1: Locating Emergency Override Button
    G01079797Courtesy of KIA MOTORS AMERICA, INC.
