Diagnosis & Overhaul: Components: Accumulators: Notes

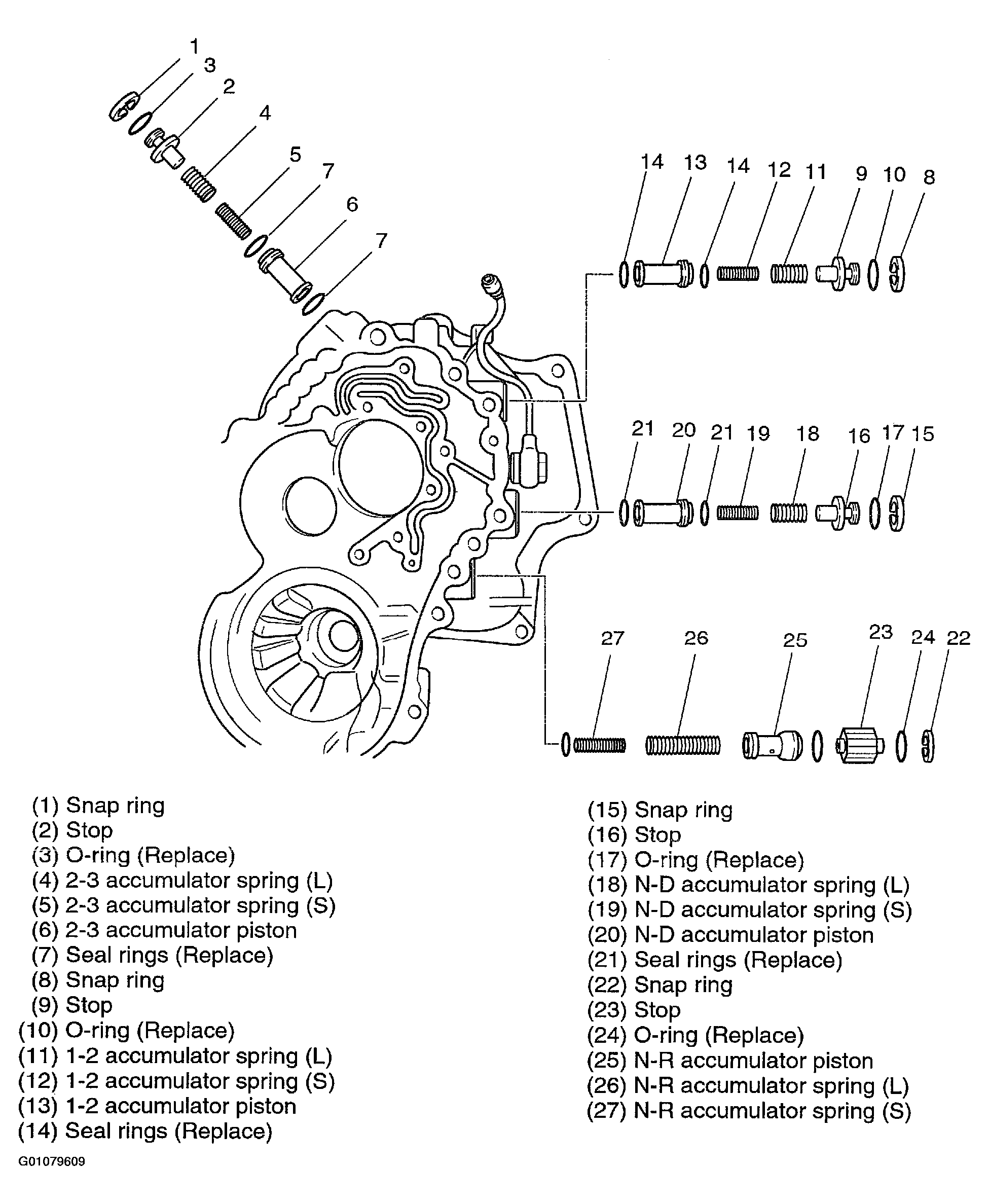

Fig 1: Illustrating Accumulators

Courtesy of KIA MOTORS AMERICA, INC.

1. Remove accumulator pistons and springs from clutch housing by applying compressed air through oil passage as shown in figure.
   Fig 2: Locating Accumulators Chart

   Courtesy of KIA MOTORS AMERICA, INC.

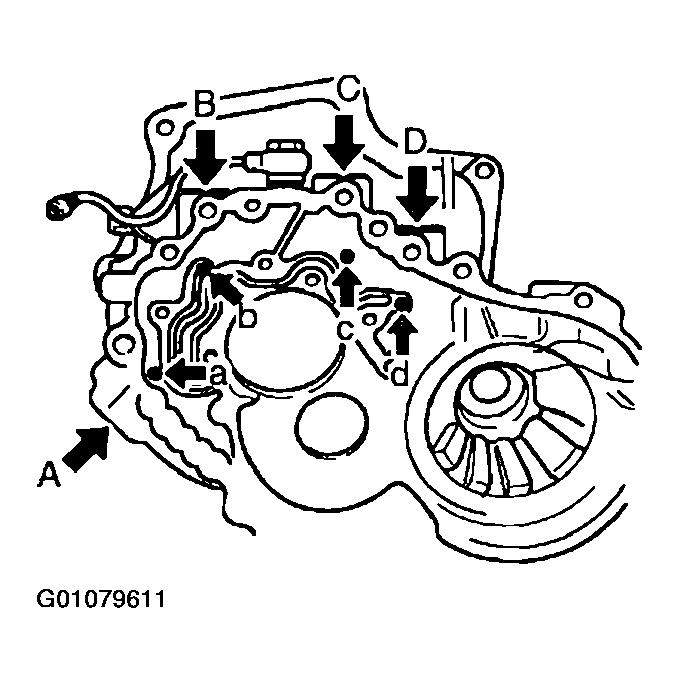

   Fig 3: Illustrating Accumulator Locations

   Courtesy of KIA MOTORS AMERICA, INC.
