Vacuum Hose Routing

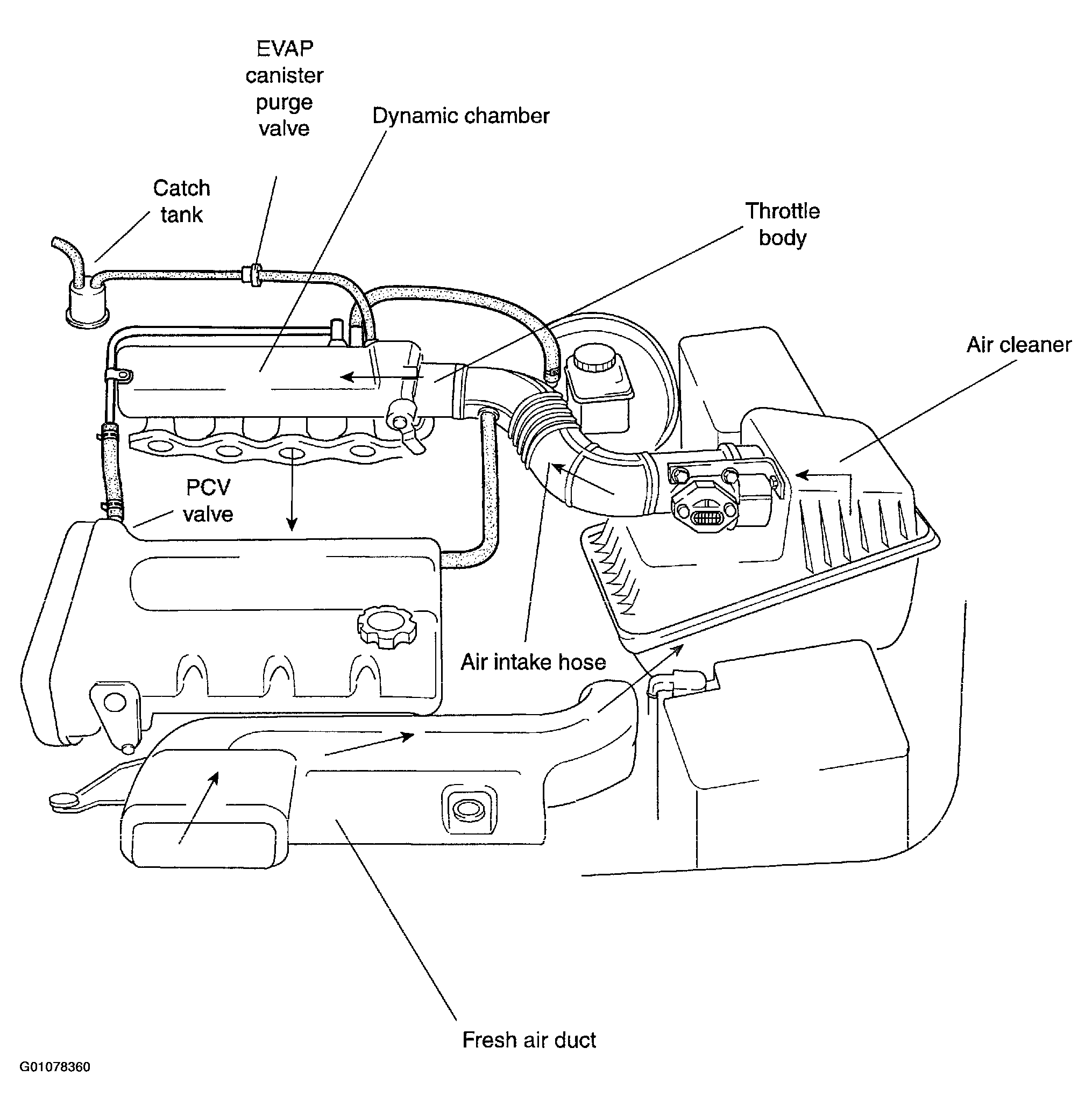

Fig 1: Illustrating Vacuum Hose Routing

G01078360

Courtesy of KIA MOTORS AMERICA, INC.
