Lubrication System: Specification: Notes

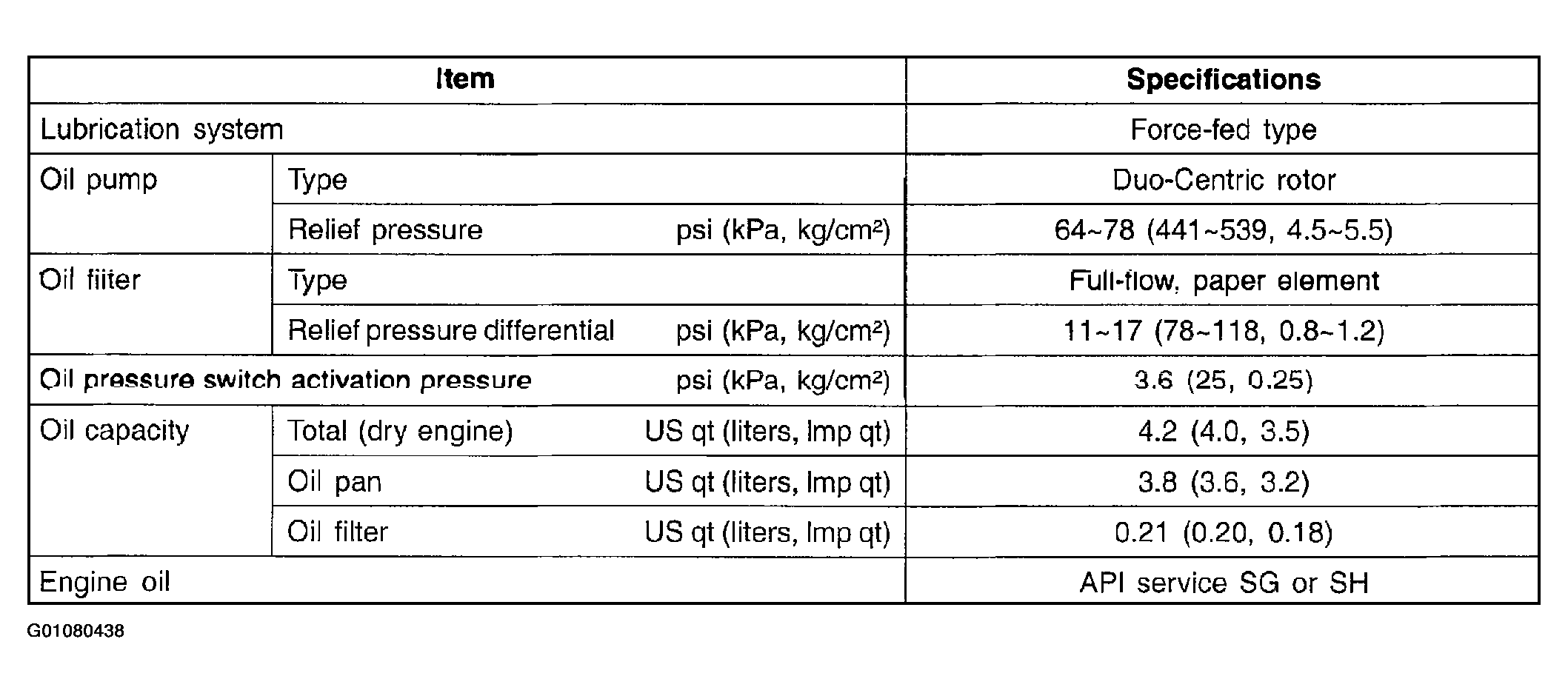

Fig 1: Lubrication System Specification Chart

G01080438

Courtesy of KIA MOTORS AMERICA, INC.
