Engine Compartment Fuse/Relay Box

NOTE: Engine compartment fuse/relay box is located on driver's side of engine compartment, behind air cleaner. See Fig 1 .

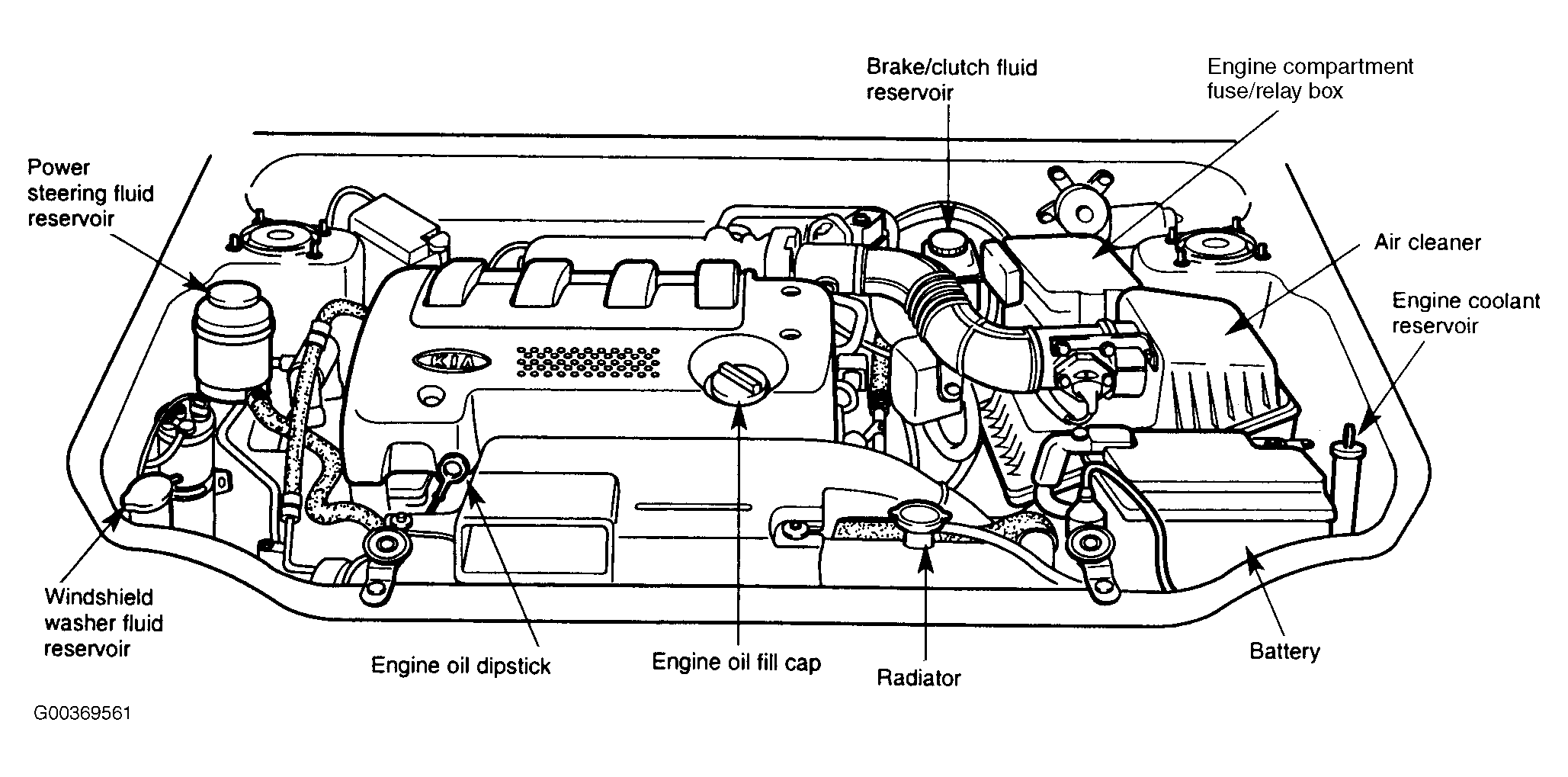

Fig 1: Locating Engine Compartment Fuse/Relay Box
G00369561Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Locating & Identifying Components On Engine Compartment Fuse/Relay Box
G00369564Courtesy of KIA MOTORS AMERICA, INC.
