Fluid Level Check

  1. Park the vehicle on a flat, level surface, start the engine, and then turn the steering wheel several times to raise the temperature of the fluid to approximately 50-60°C.

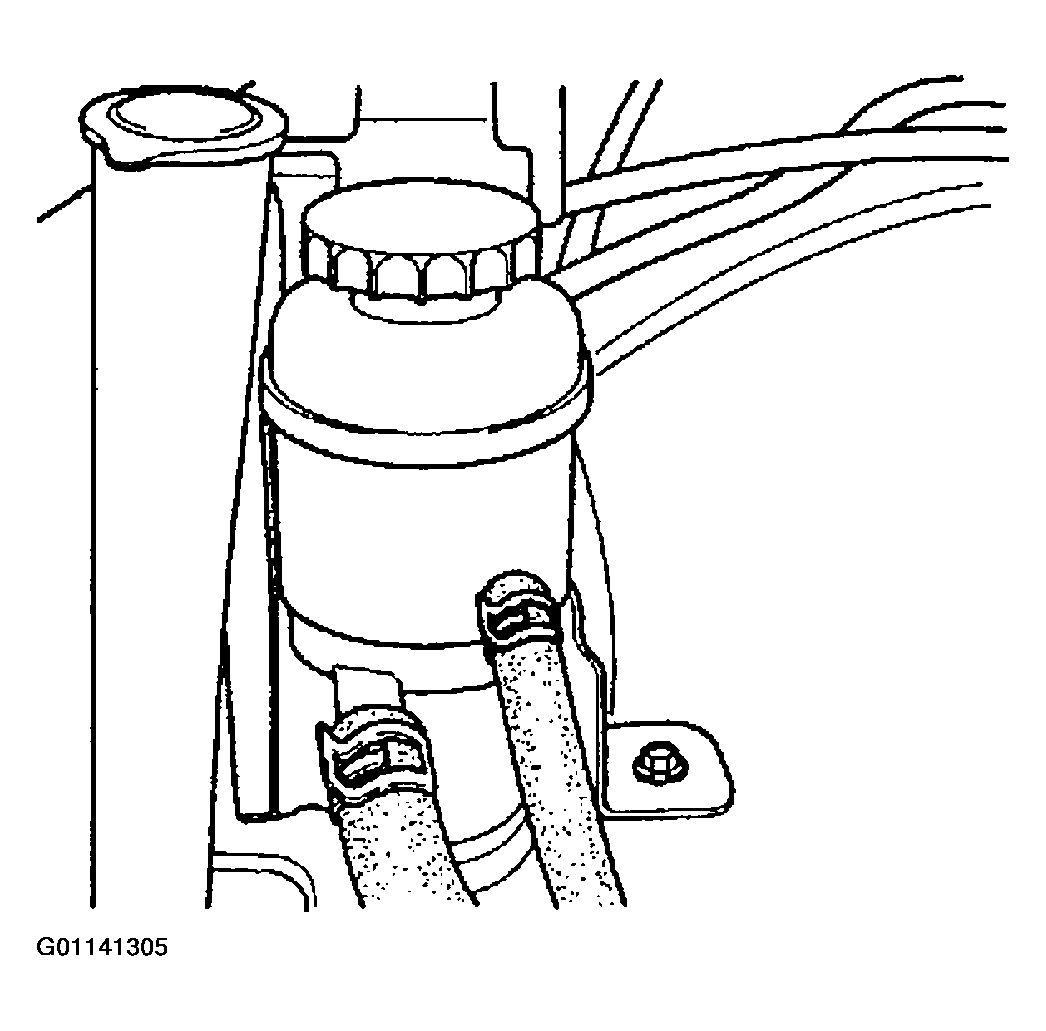

    Fig 1: Identifying Power Steering Reservoir
    G01141305Courtesy of KIA MOTORS AMERICA, INC.
  2. With the engine running, turn the wheel all the way to the left and right several times.
  3. Check the fluid in the oil reservoir for foaming or milkiness.
  4. Check the difference of the fluid level when the engine is stopped, and while it is running. If the fluid level changes considerably, air bleeding should be done.
    Fig 2: Illustrating Fluid Level Levels
    G01141306Courtesy of KIA MOTORS AMERICA, INC.
