Evaporative Emission Control System: Components

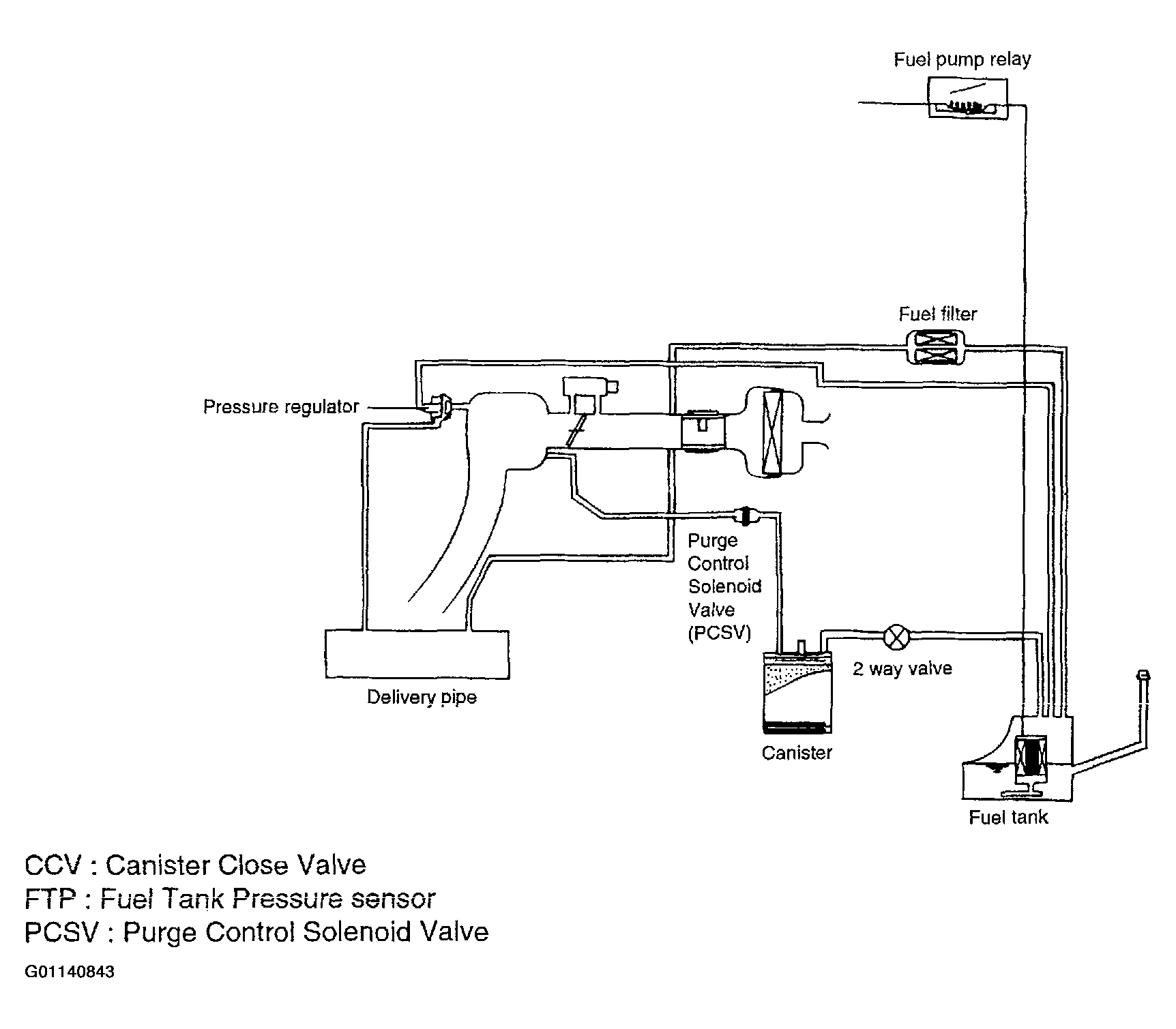

Fig 1: Illustrating Evaporative Emission Control System Components

G01140843

Courtesy of KIA MOTORS AMERICA, INC.
