ECM Location & ECM Connector Identification

Engine Control Module is located right side of dash, below glove box, near kick panel. See Fig 1 and Fig 2 .

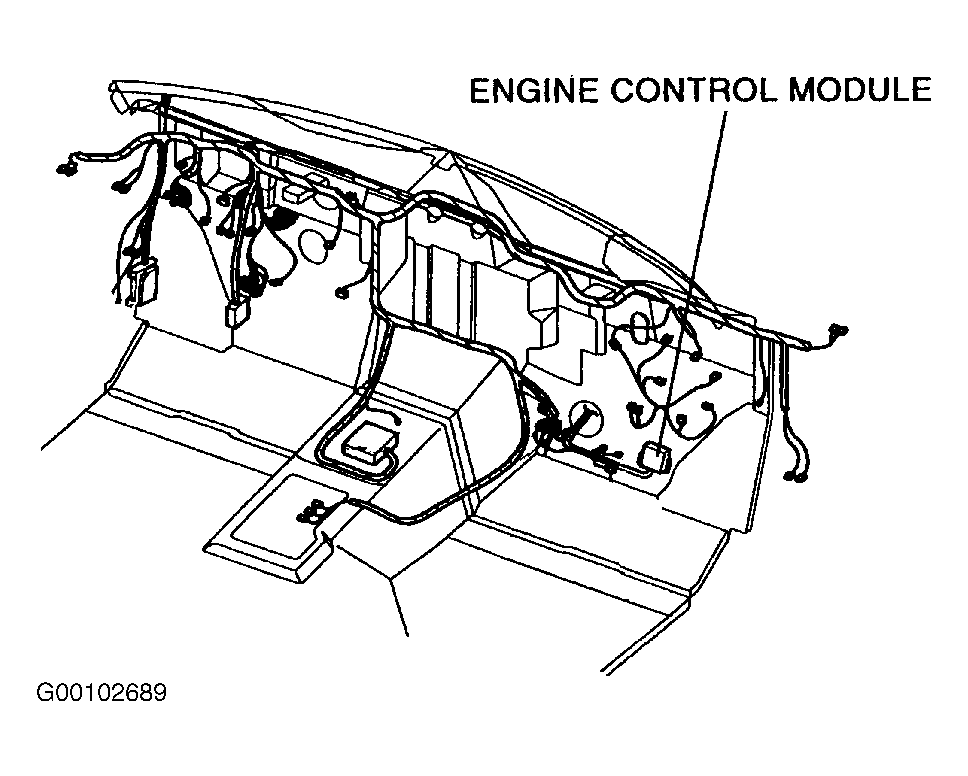

Fig 1: Locating Engine Control Module

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Identifying Engine Control Module Connectors & Terminals

Courtesy of KIA MOTORS AMERICA, INC.

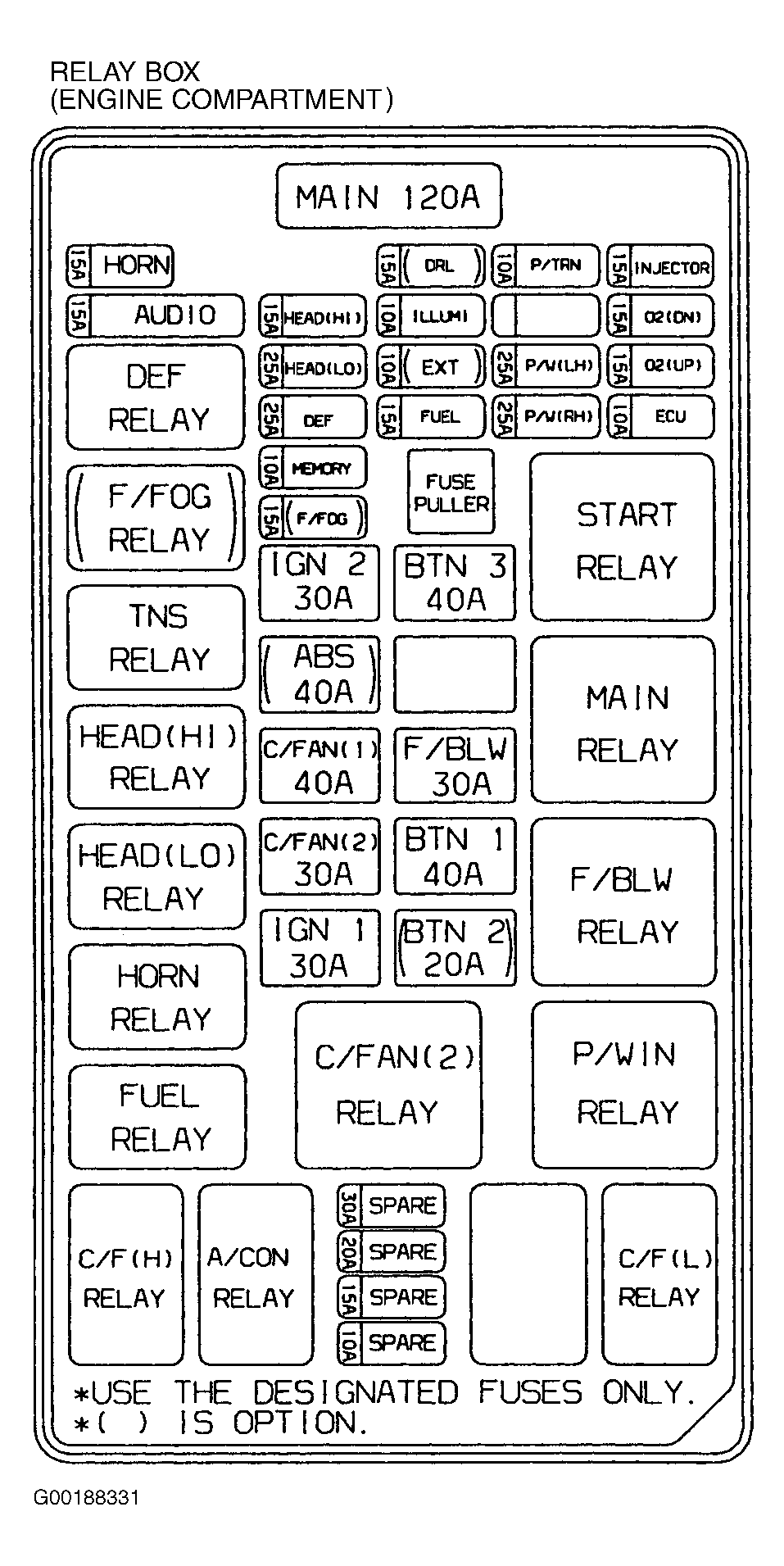

Fig 3: Locating Relay Box (Engine Compartment)

Courtesy of KIA MOTORS AMERICA, INC.
