Removal And Installation: Removal

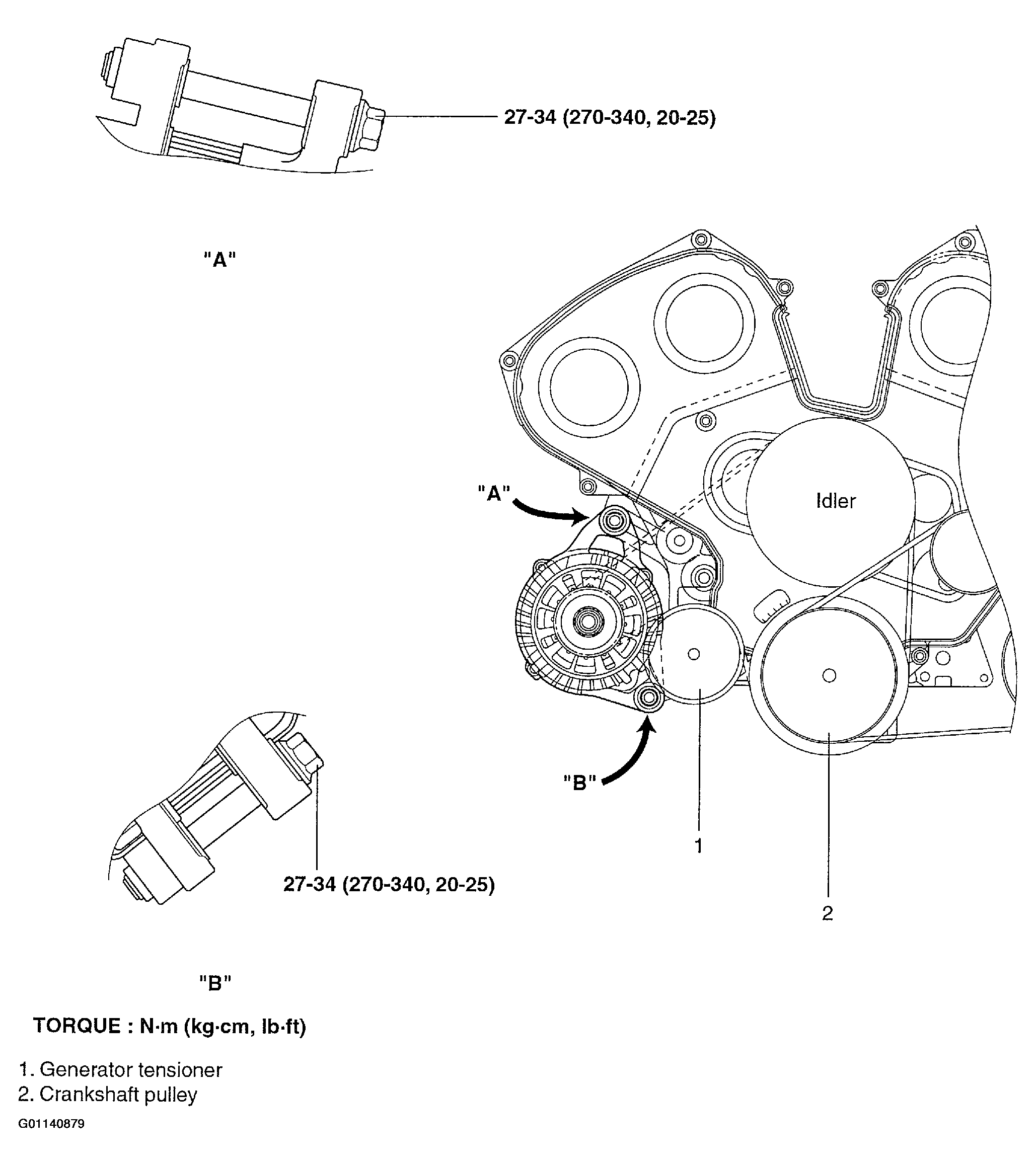

Fig 1: Illustrating Generator Mounting Components

G01140879

Courtesy of KIA MOTORS AMERICA, INC.
