Kia
>>
2003
>>
Sorento EX, 4WD, Part Time
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Connector End Views
>>
Automatic Temperature Control Panel Connector End Views
Automatic Temperature Control Panel Connector End Views

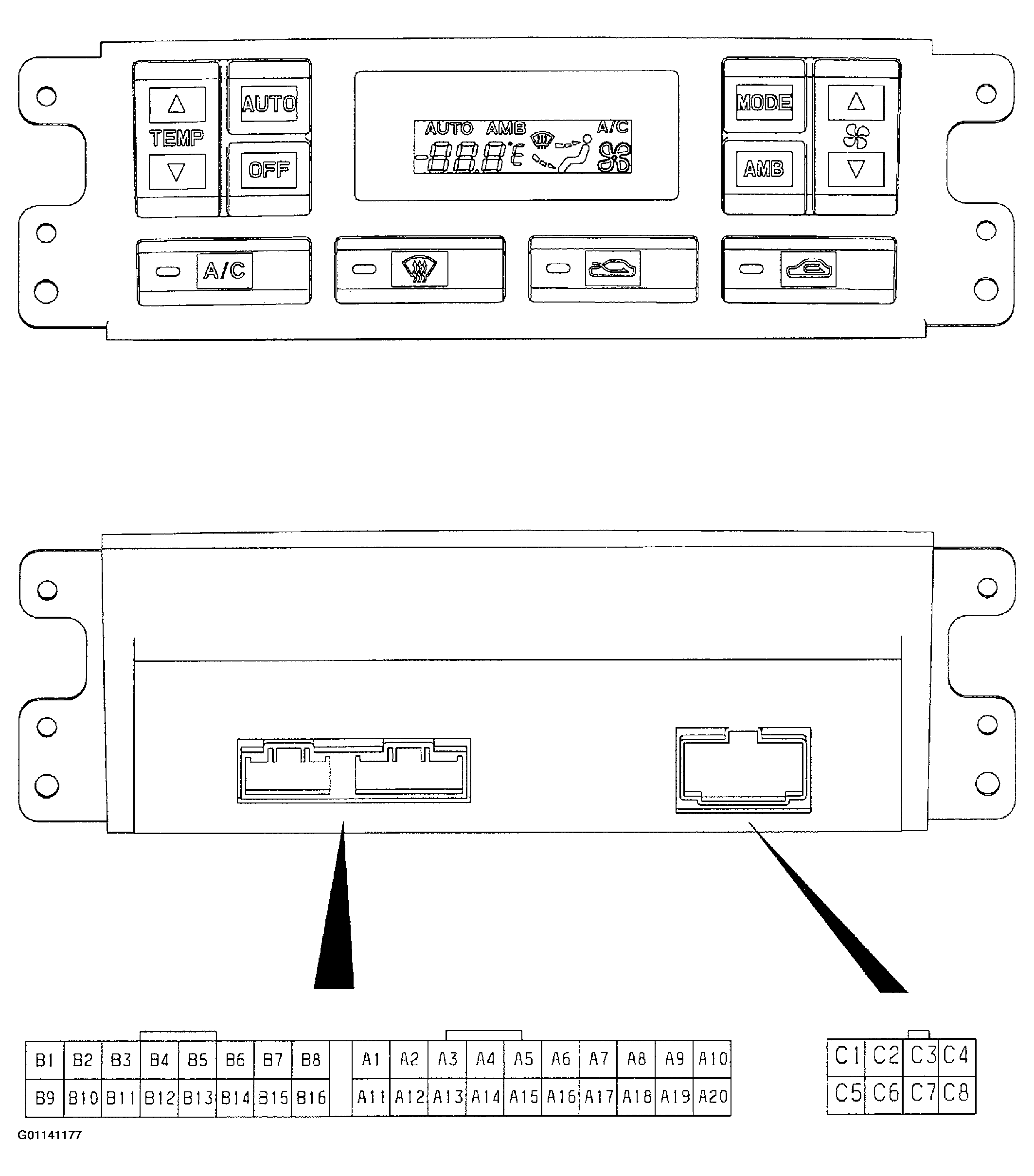

Fig 1: Automatic Temperature Control Panel Connector End Views
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
