Kia
>>
2003
>>
Sorento EX, 4WD, Part Time
>>
Repair and Diagnosis
>>
Body & Frame
>>
Power Windows
>>
Power Window Switch
>>
Circuit Diagram
Circuit Diagram

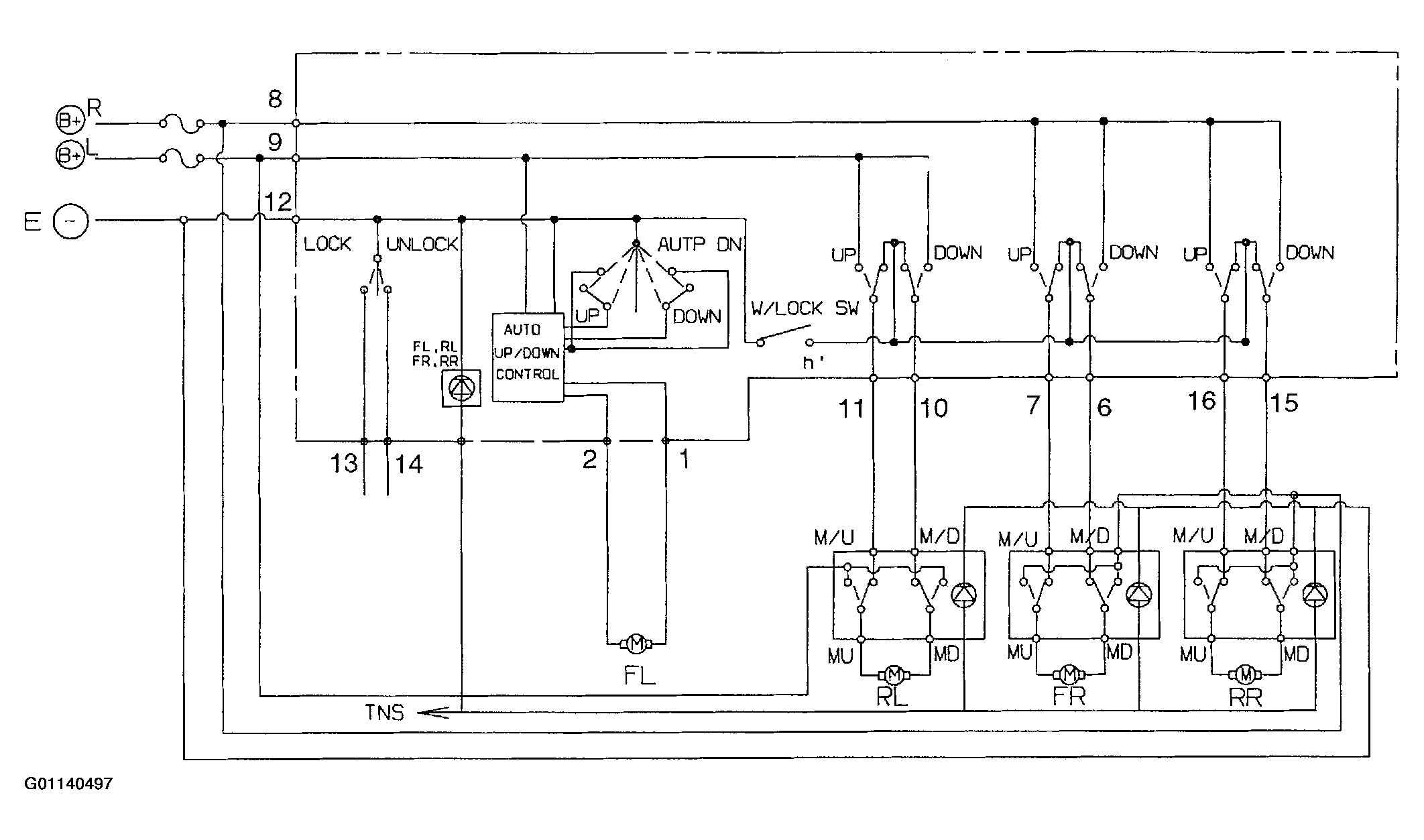

Fig 1: Power Window Switch Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
