ETACS Pin No. And Description
ETACS Pin No. And Description

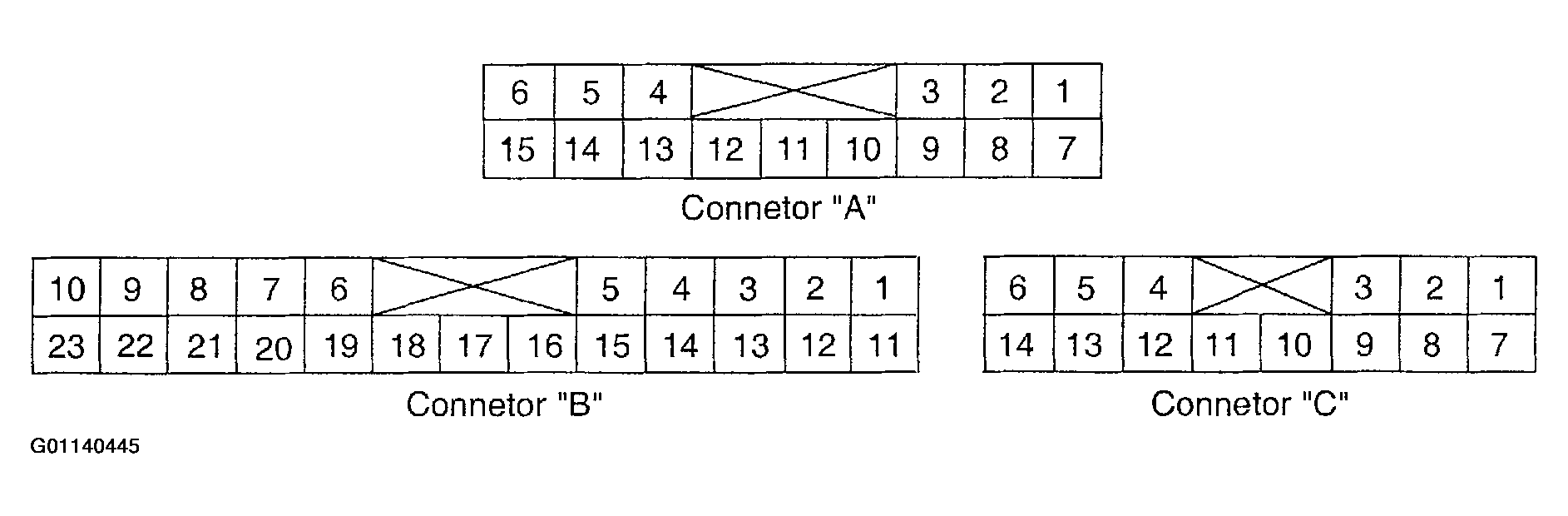

Fig 1: Illustrating ETACS Connector Pinout
Courtesy of KIA MOTORS AMERICA, INC.

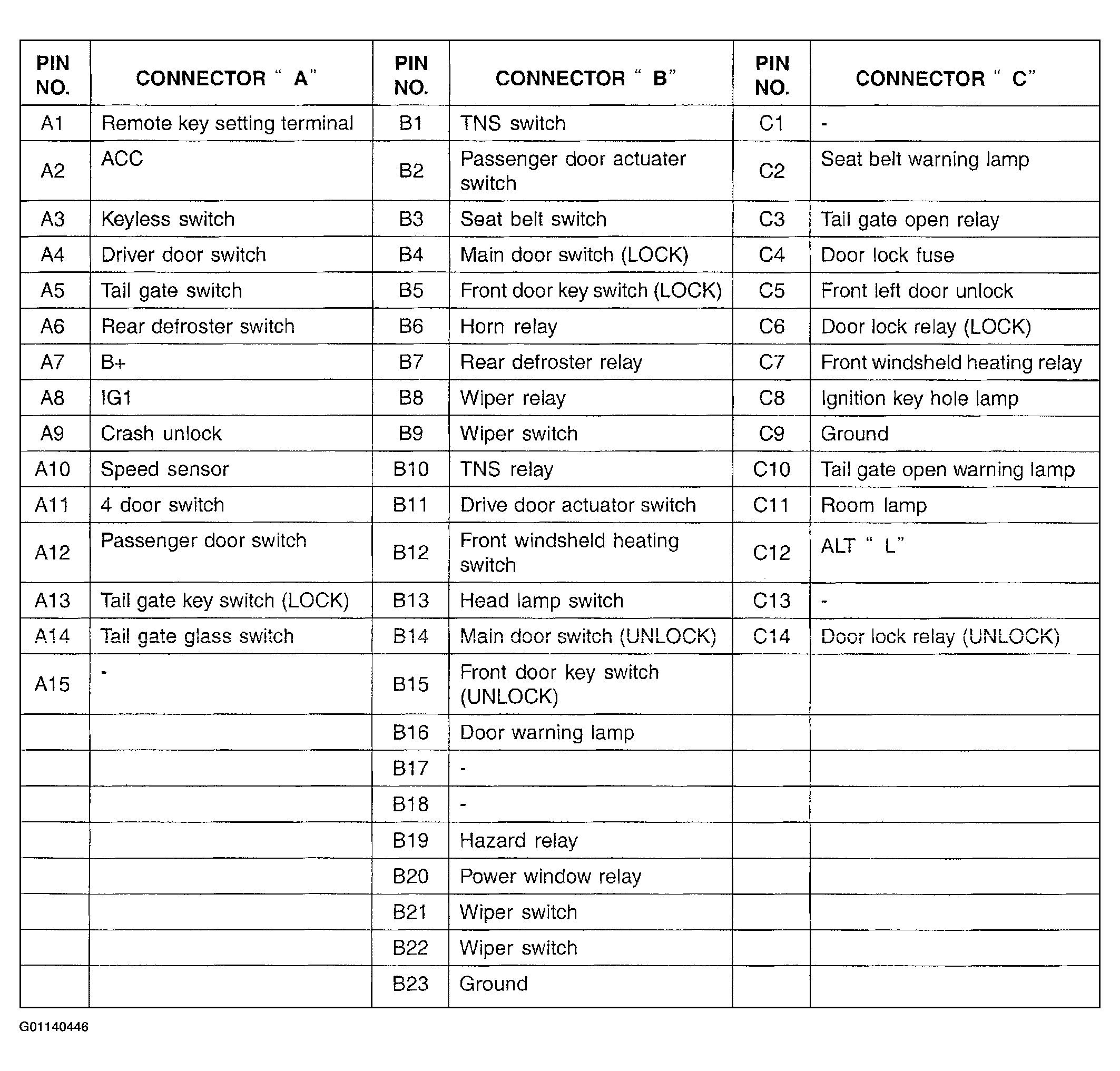

Fig 2: Illustrating Pin No. And Description
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
