Cruise Control Module: Testing

  1. Connect a voltmeter between cruise control unit terminals and ground. (Connector Q01 connected.)
  2. Turn ignition switch "ON" and check that terminal voltages are as described on the following page.
    Fig 1: Cruise Control Connector Pinout
    G01140926Courtesy of KIA MOTORS AMERICA, INC.

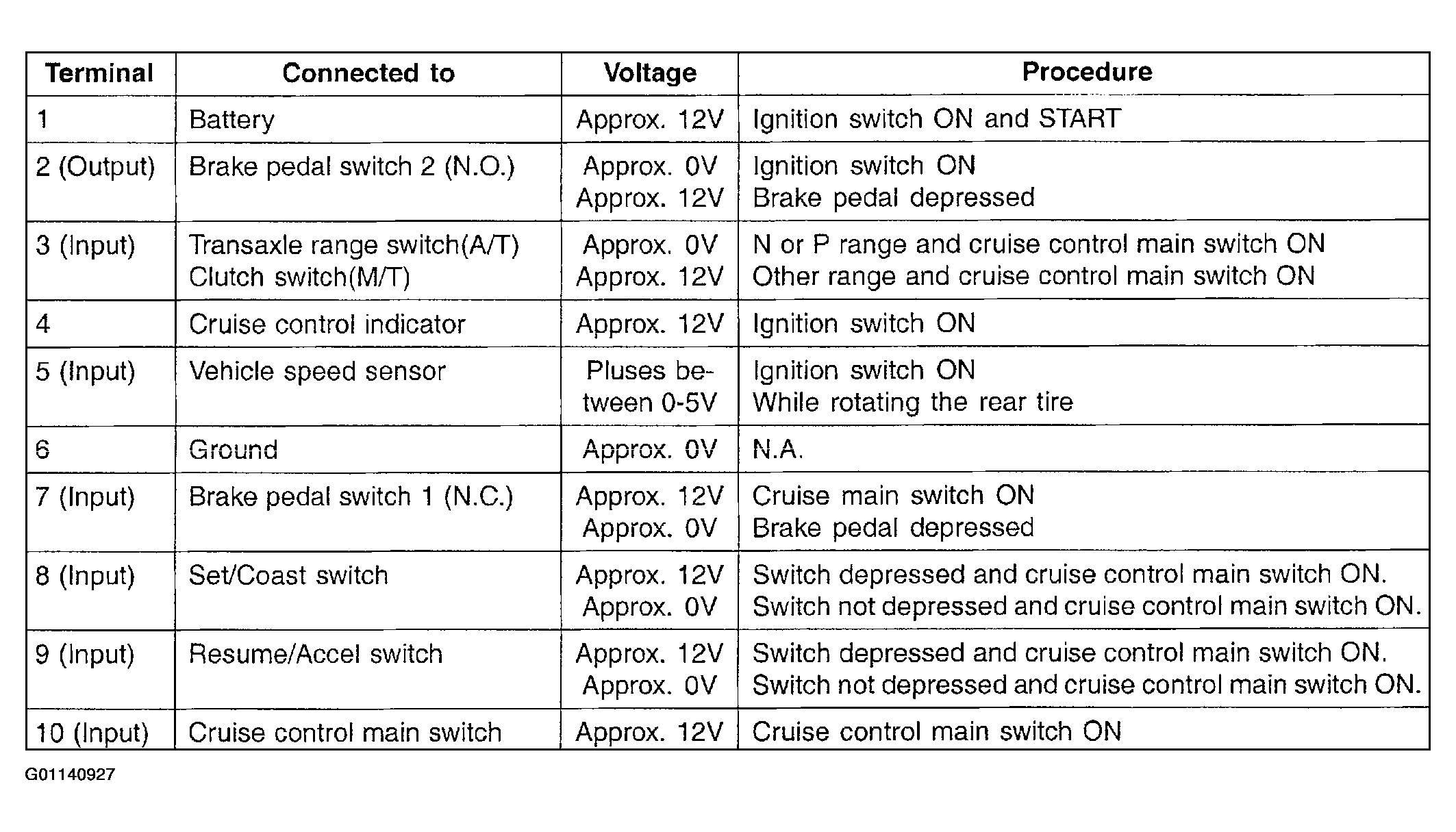

    Fig 2: Terminal Testing Chart
    G01140927Courtesy of KIA MOTORS AMERICA, INC.
