Front Suspension System
>>
Strut Assembly
>>
Component
Strut Assembly: Component

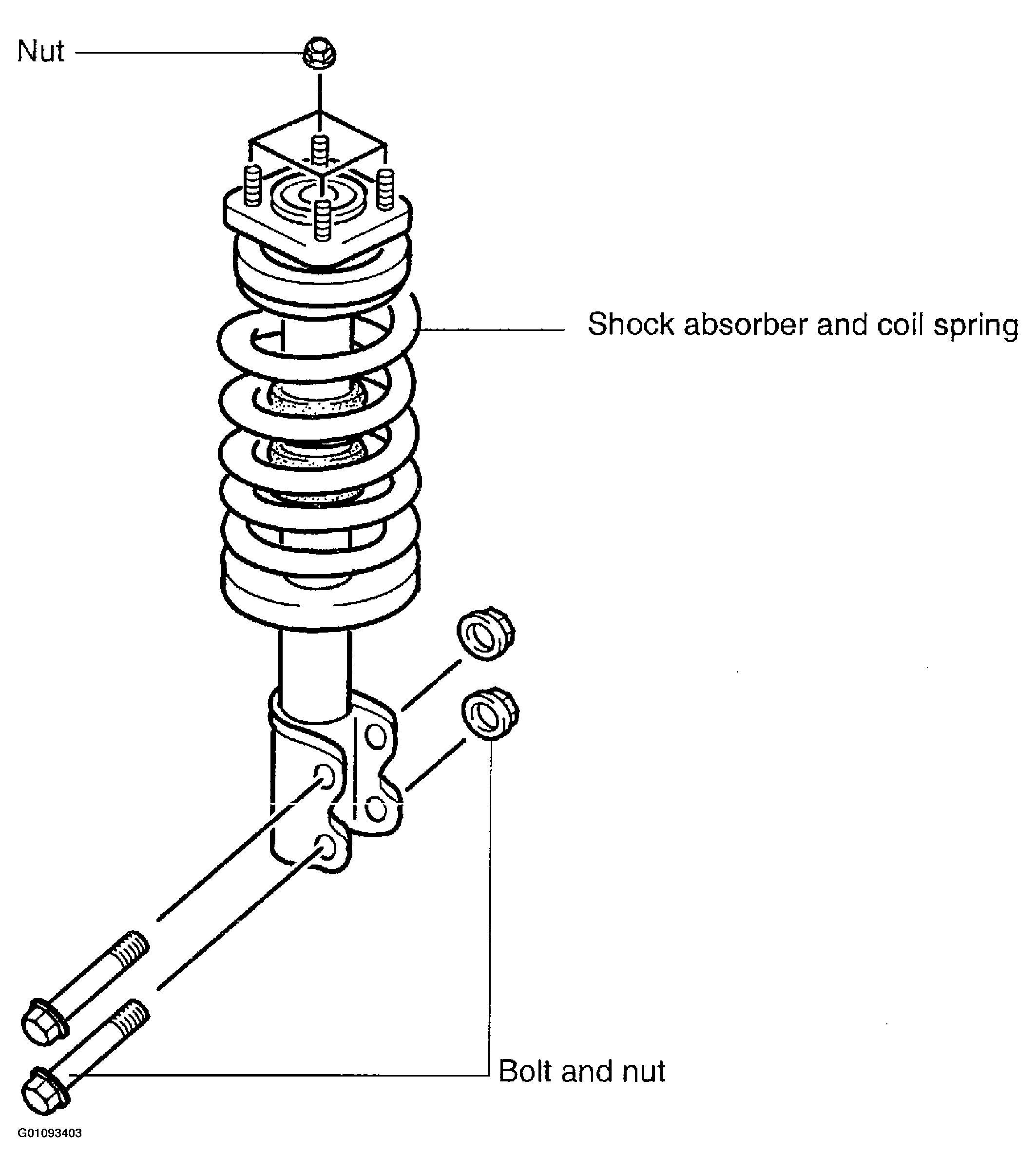

Fig 1: Illustrating Strut Assembly
Courtesy of KIA MOTORS AMERICA, INC.

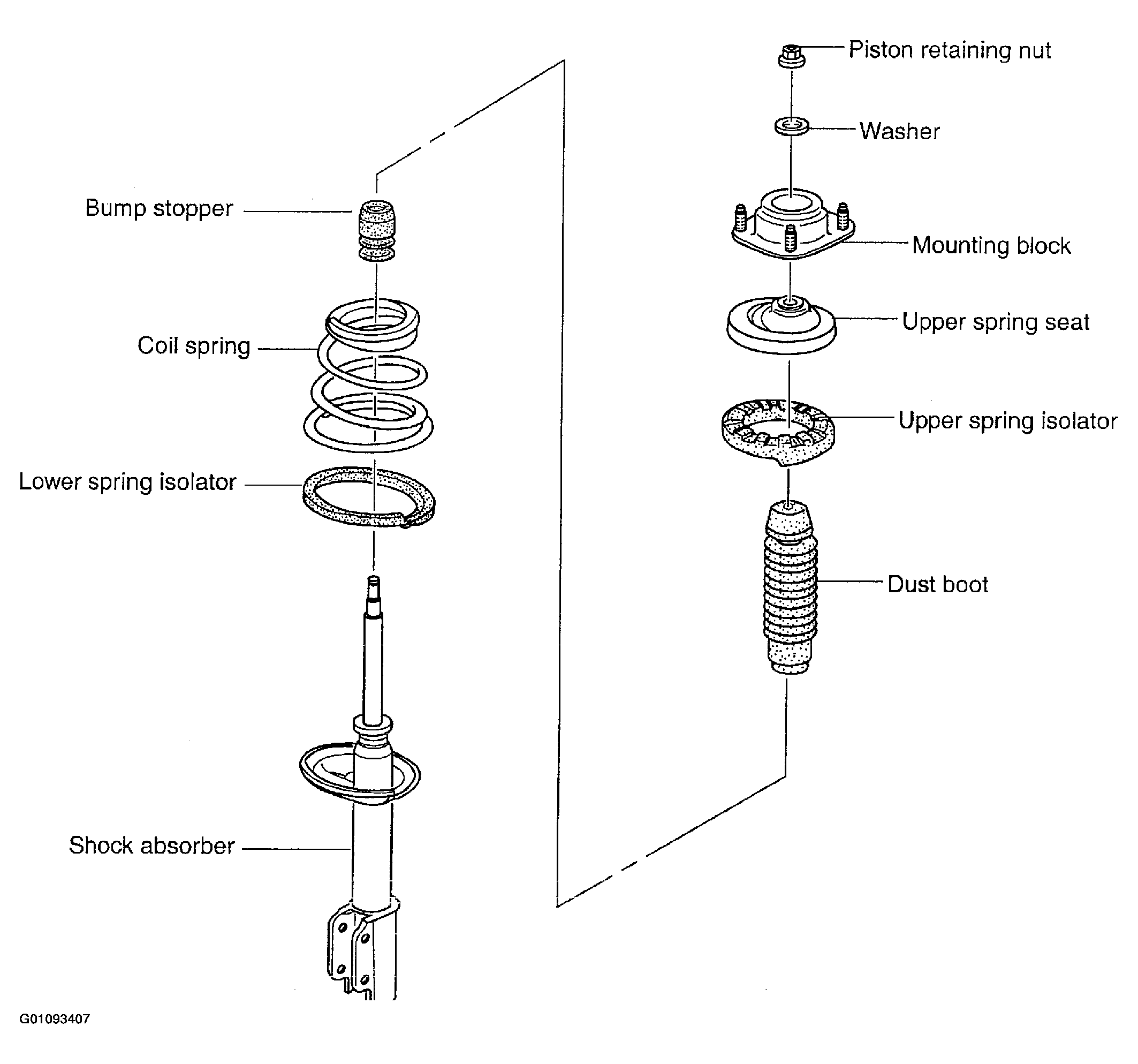

Fig 1: Illustrating Strut Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
