Component Locations

COMPONENT LOCATIONS

Component	Location
Engine Compartment Fuse Box	On Left Side Of Engine Compartment
Passenger Compartment Fuse Box	Behind Left Kick Panel
Temperature Gauge Sending Unit	Behind Thermostat Housing
Vehicle Speed Sensor (VSS)	On Left Rear Top Of Transmission

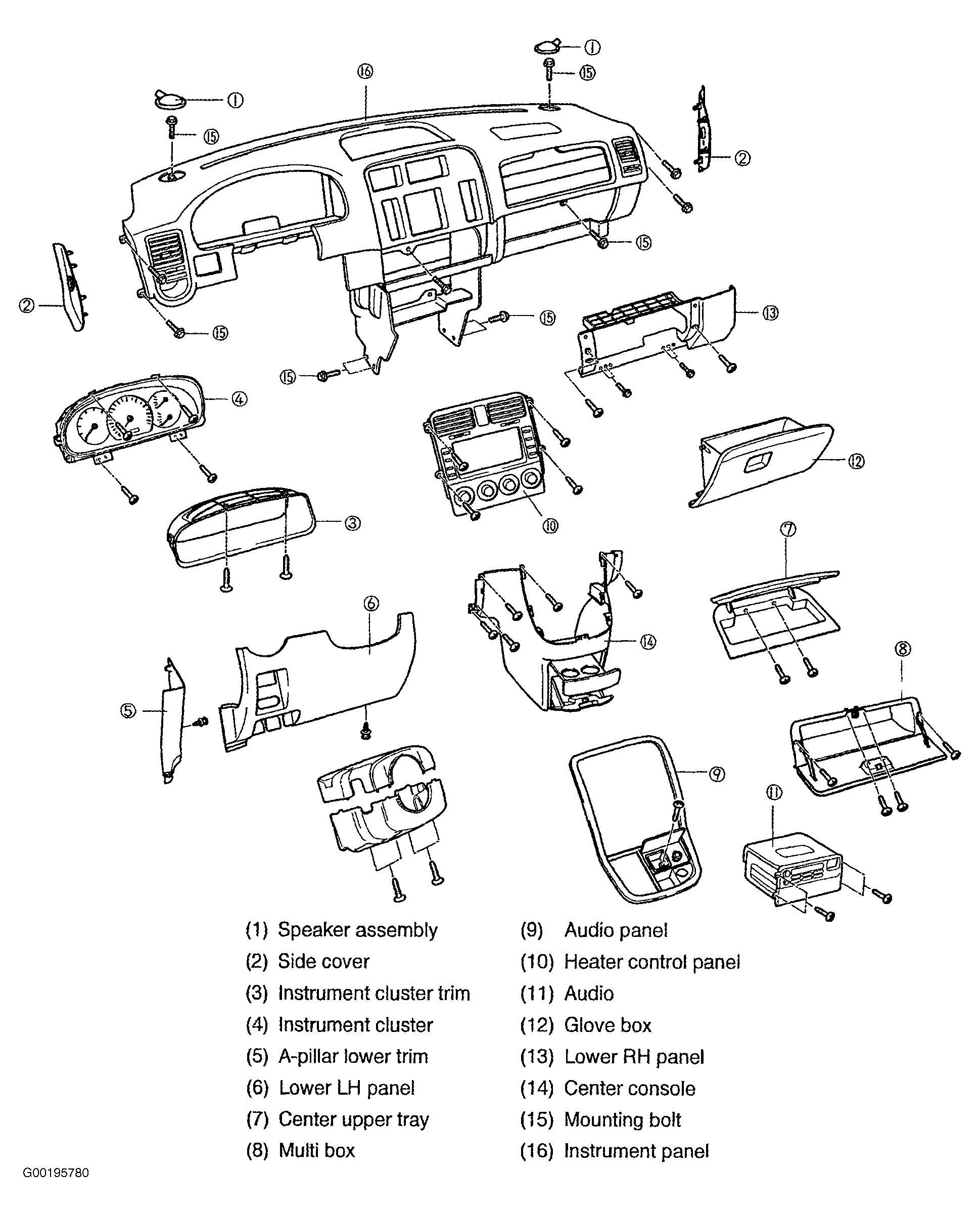

Fig 1: Identifying Instrument Panel Assembly

Courtesy of KIA MOTORS AMERICA, INC.
