Removal & Installation: Generator: Removal

NOTE: Put on gloves to protect hands during working.

CAUTION: Cutting the stator coil lead line connecting to the rectifier may damage the generator because the rectifier and the stator coil lead line are soldered together. So, do not disassemble further.

Remove the generator cover using a screwdriver or equivalent.

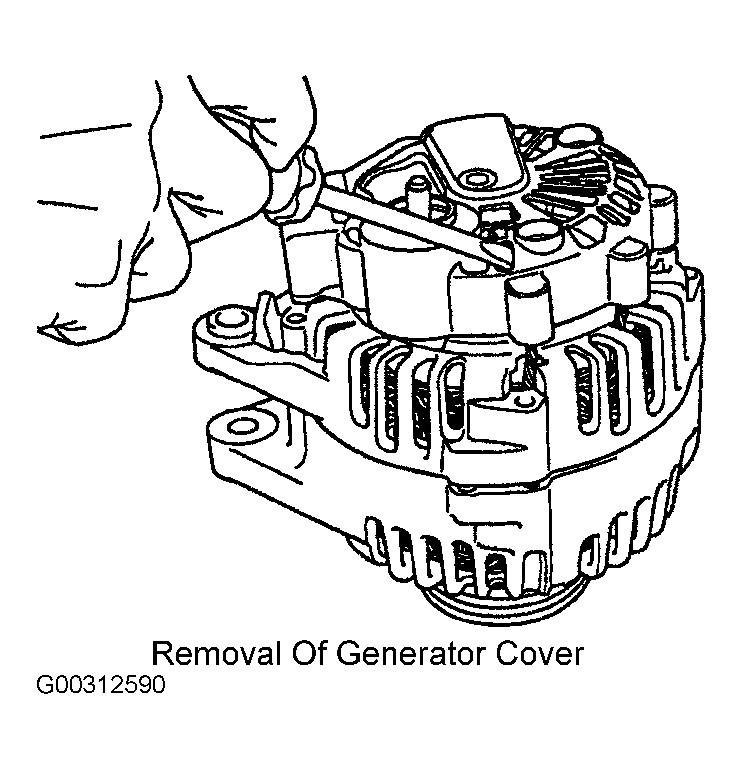

Fig 1: Removal of Generator Cover
Courtesy of KIA MOTORS AMERICA, INC.
After loosening the 3 mounting bolts, detach the brush holder assembly.

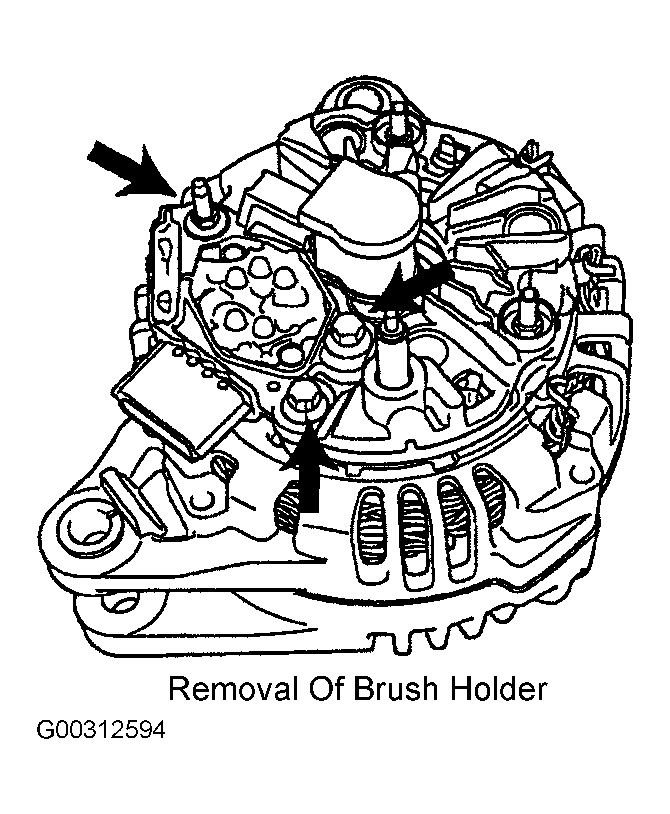

Fig 2: Brush Holder Removal
Courtesy of KIA MOTORS AMERICA, INC.
Remove the nut, pulley, and spacer.

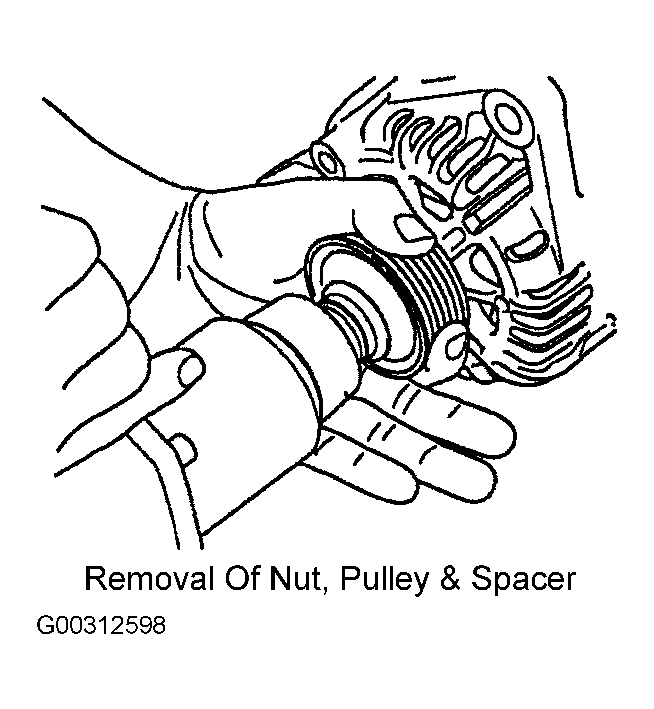

Fig 3: Removal of Nut, Pulley and Spacer
Courtesy of KIA MOTORS AMERICA, INC.
Reassembly is the reverse of disassembly.

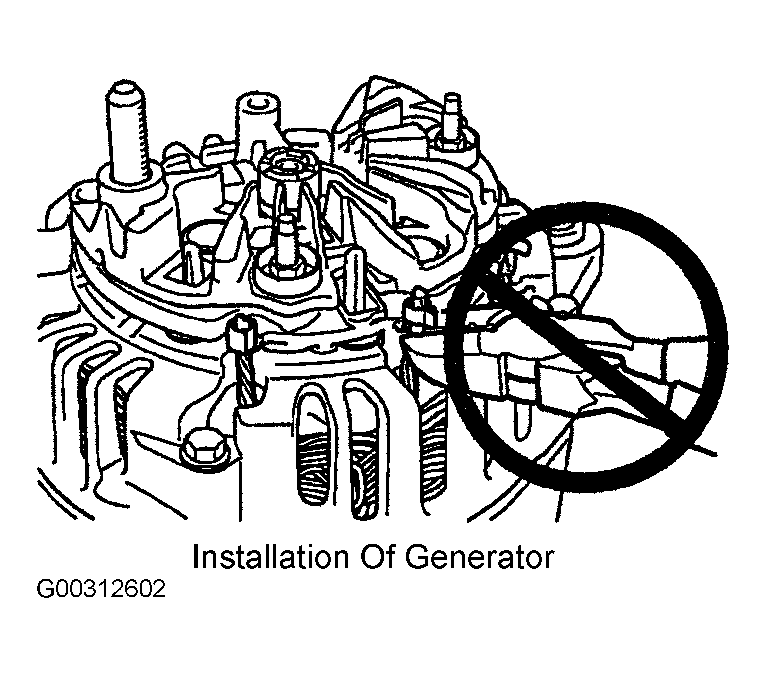

Fig 4: Installation of Generator
Courtesy of KIA MOTORS AMERICA, INC.
