Power Seat Switch: Inspection

Operate the power seat switch and check the continuity between terminals. If continuity is not as specified, replace the switch.

Fig 1: Illustrating Power Seat Switch Connector

Courtesy of KIA MOTORS AMERICA, INC.

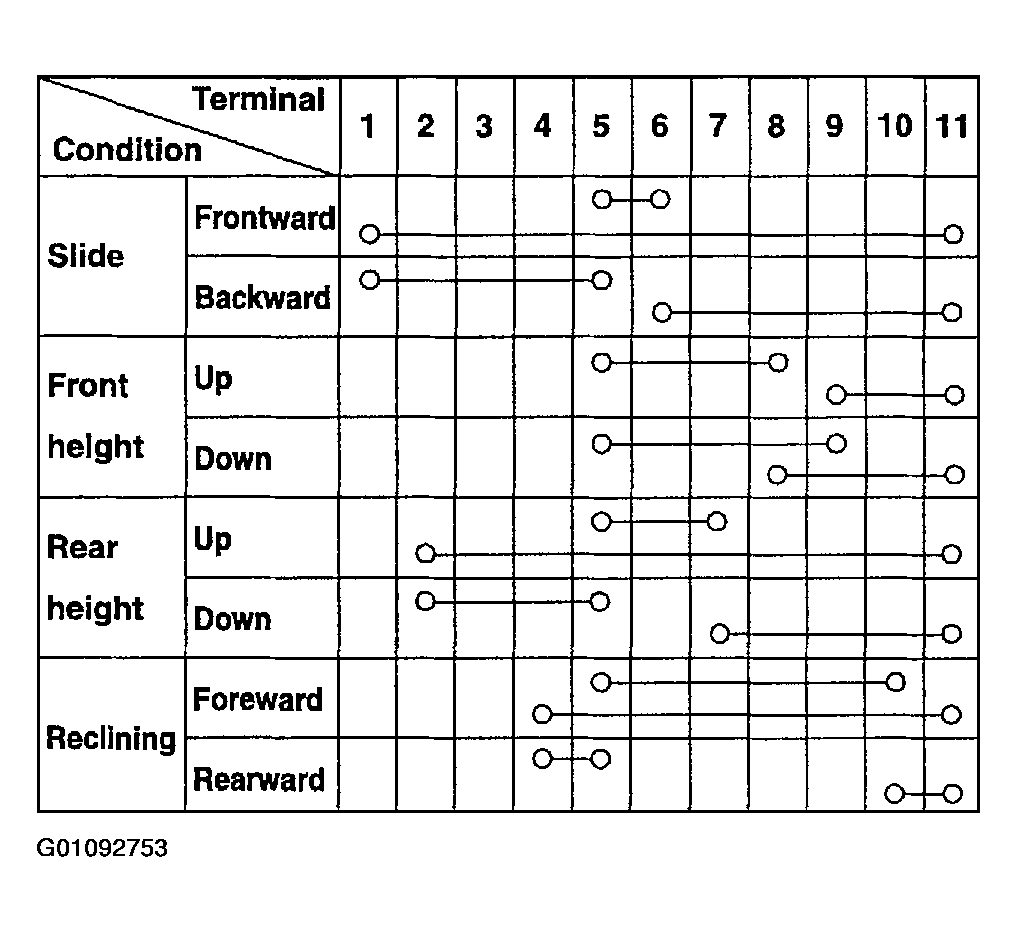

Fig 2: Power Seat Switch Operation Chart

Courtesy of KIA MOTORS AMERICA, INC.
