2003
>>
Sedona EX
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Immobilizer Control System
>>
Diagnosis
>>
Pin Connection
Pin Connection

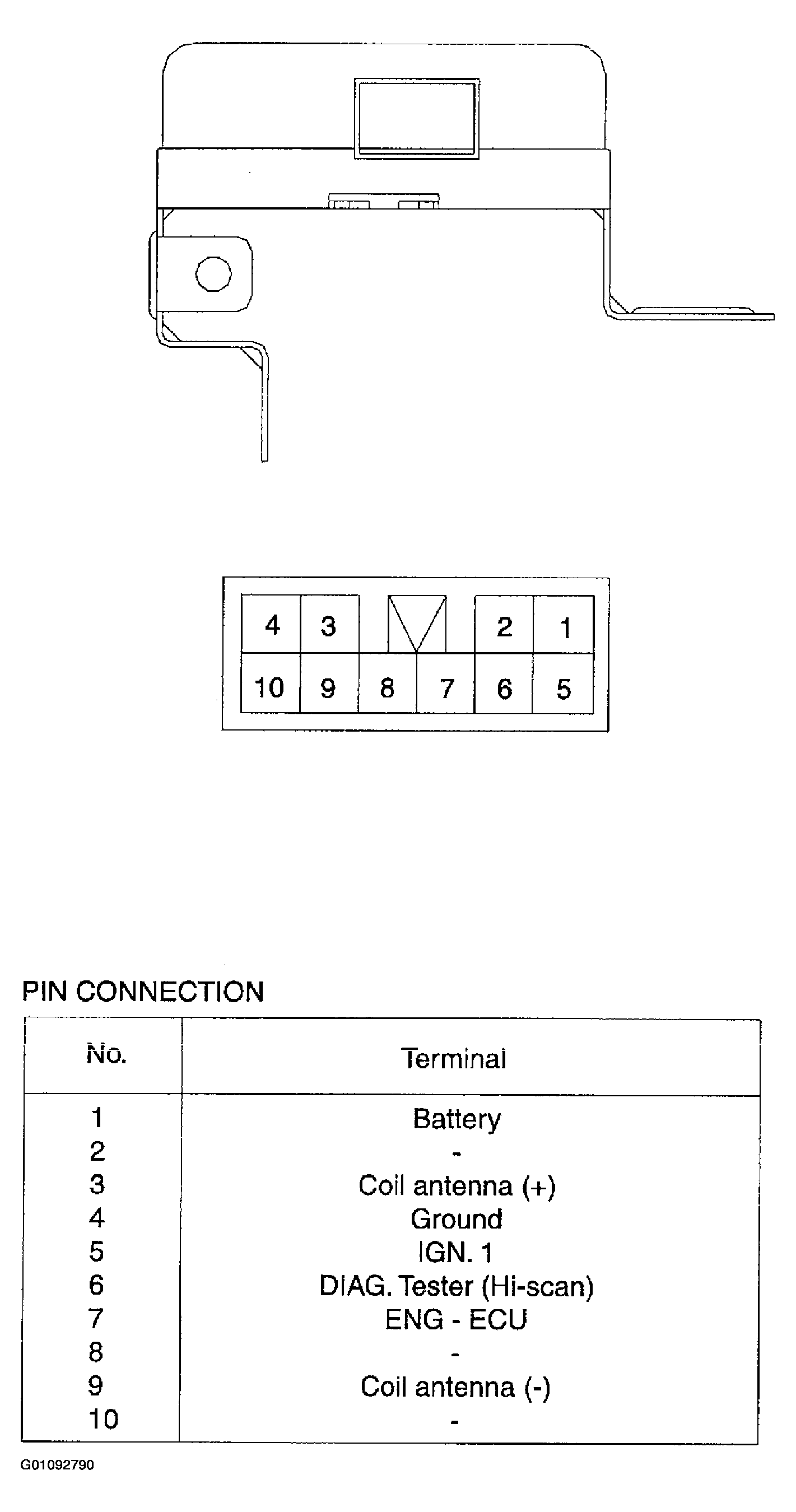

Fig 1: Identifying Immobilizer System Connector & Terminal Pin Outs
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
