Control Cable Adjustment

  1. Move the shift lever to position "N".
  2. Release the adjusting nut at the connection between the transaxle control cable and the manual control lever and separate them.

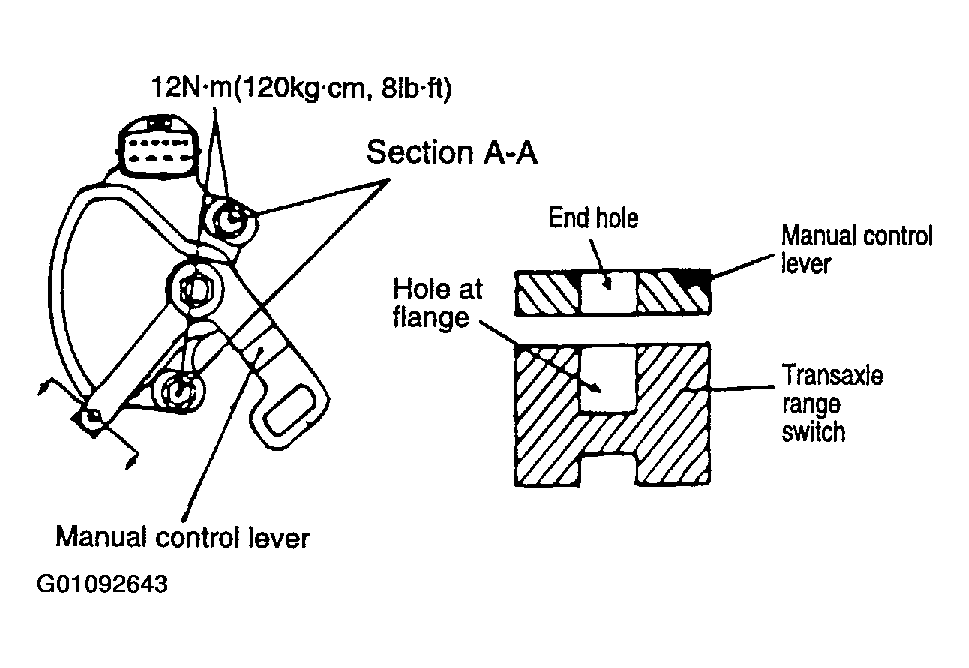

    Fig 1: Illustrating Control Cable Adjustment
    G01092643Courtesy of KIA MOTORS AMERICA, INC.
  3. Move the manual control lever to position "N".
  4. Insert +/-0.197 in. (+/-5 mm) pin into holes +/-0.197 in. (+/-5 mm) transaxle range switch and the manual control lever. Adjust the transaxle range switch and manual control lever at position "N" correctly.
CAUTION: If you DO NOT  insert +/-0.197 in (+/-5 mm) pin, position "N" may move when tightening the adjusting nut.

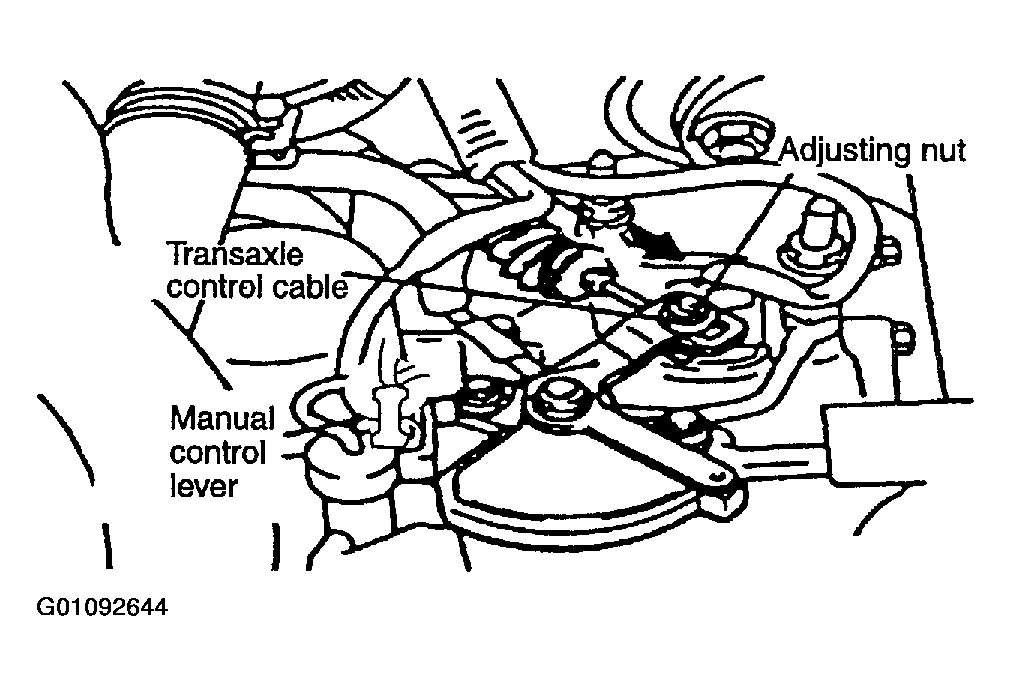

Fig 2: Adjusting Control Cable
G01092644Courtesy of KIA MOTORS AMERICA, INC.
