Sub Frame Mounts

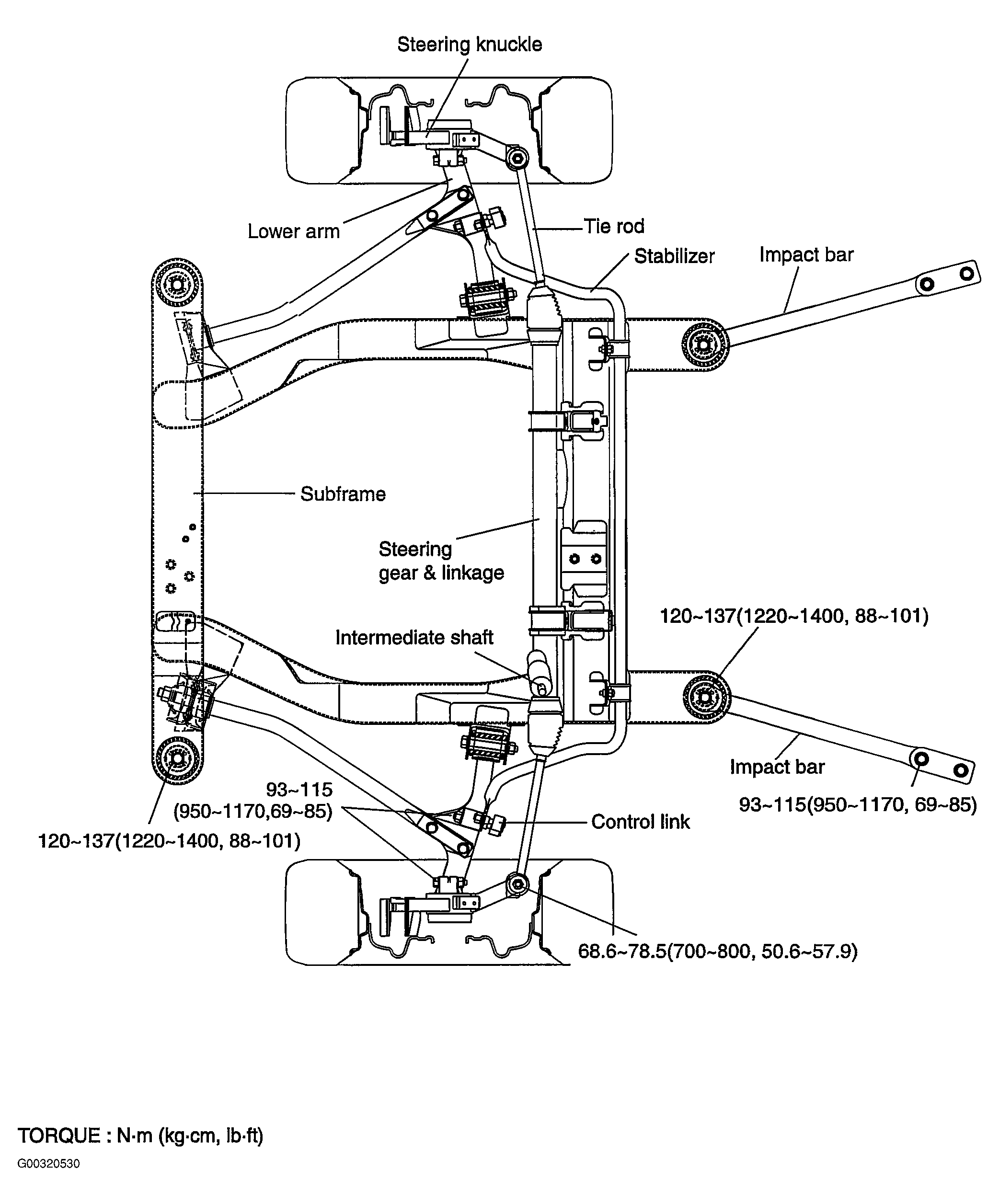

Fig 1: Identifying Subframe Mounts

G00320530

Courtesy of KIA MOTORS AMERICA, INC.
