Shift Lever Disassembly

  1. Disassemble in the order shown in the figure.
  2. Inspect all parts and repair or replace as necessary.
  3. Assemble in the reverse order of disassembly, see ASSEMBLY  .

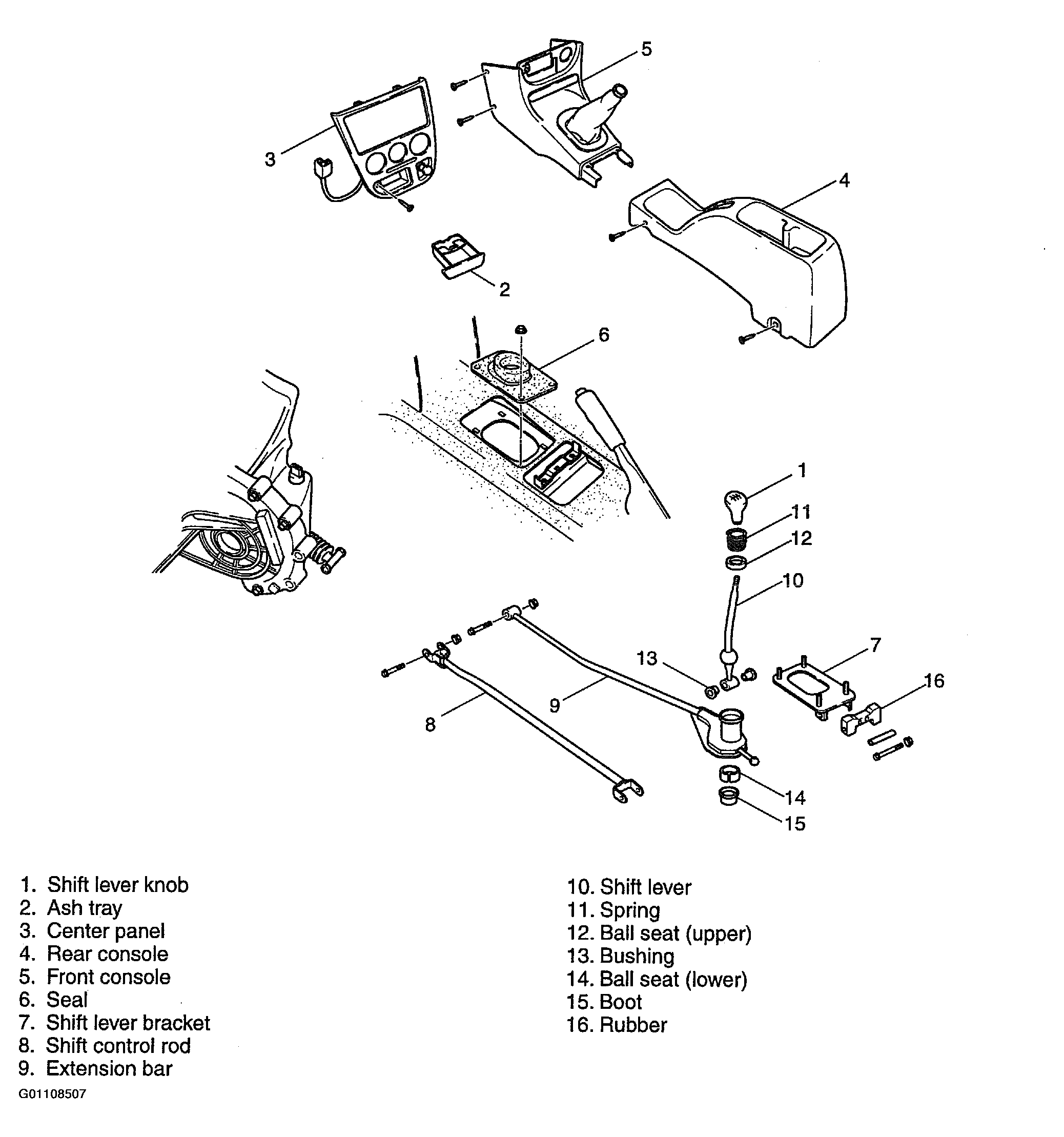

    Fig 1: Illustrating Shift Lever & Control Rod Components
    G01108507Courtesy of KIA MOTORS AMERICA, INC.
