Oil Inspection

  1. Raise vehicle and support it with safety stands.
  2. Remove the speedometer driven gear.
    NOTE: Keep vehicle level when checking oil level.
    Fig 1: Verifying Transmission Oil Level
    G01108351Courtesy of KIA MOTORS AMERICA, INC.
  3. Verify that oil level is within the specification.
  4. If oil level is low, fill specified amount and type of oil through the speedometer driven gear.

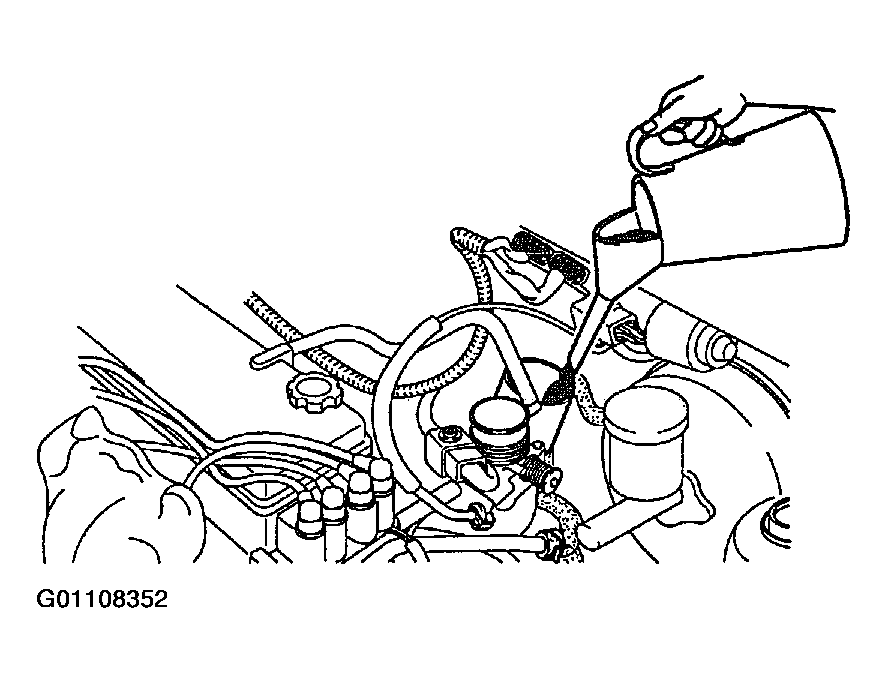

    Fig 2: Fill Oil Level To Specified Amount
    G01108352Courtesy of KIA MOTORS AMERICA, INC.
  5. Reinstall the speedometer driven gear in case.
  6. Lower vehicle.
