Disassembly, Inspection & Reassembly: Differential: Disassembly/Inspection/Assembly

1. Before disassembly, inspect backlash of side gears and pinion gears, refer to PREINSPECTION  .
2. Disassemble in order shown in figure, refer to DISASSEMBLY  .
3. Inspect all parts and repair or replace as necessary.
4. Assemble in reverse order of disassembly, refer to ASSEMBLY  .
5. Measure backlash after assembly, see BACKLASH OF SIDE GEAR AND PINION GEAR  .

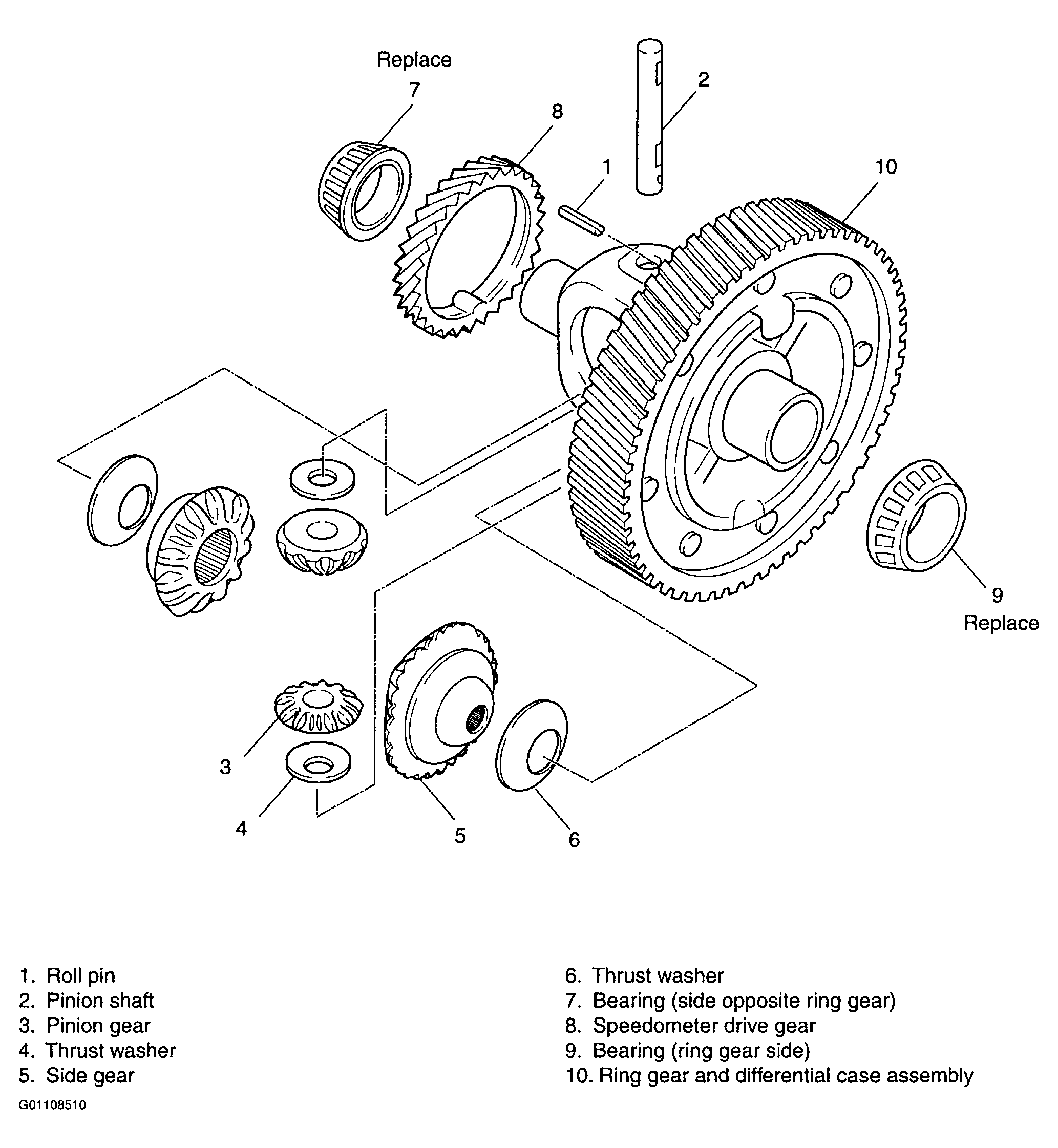

Fig 1: Exploded View Of Differential

Courtesy of KIA MOTORS AMERICA, INC.
