Repair and Diagnosis
>>
Steering
>>
Manual Steering
>>
Steering System
>>
General
>>
Troubleshooting Guide
>>
Power Steering
Power Steering

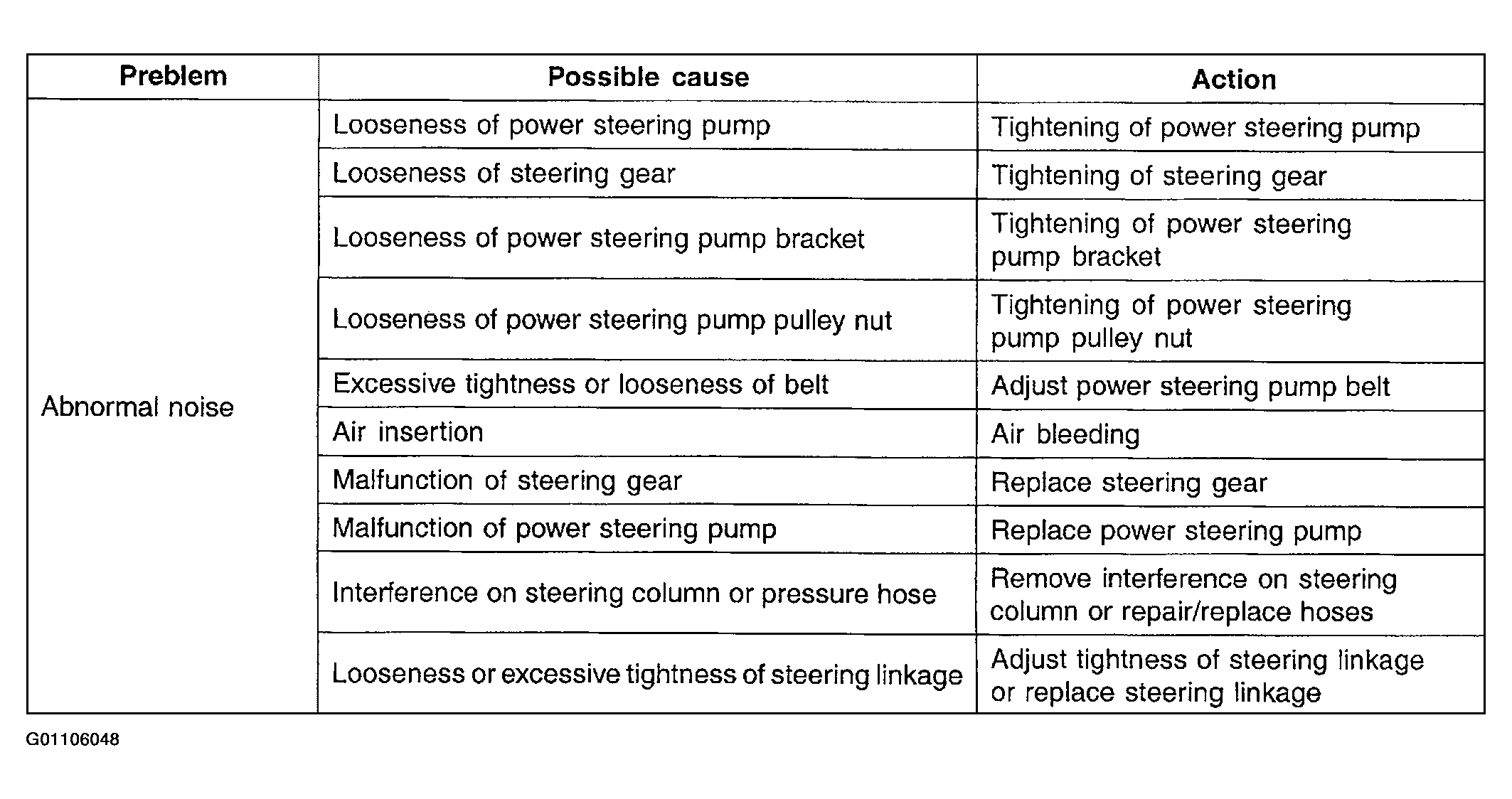

Fig 1: Power Steering Troubleshooting Guide (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

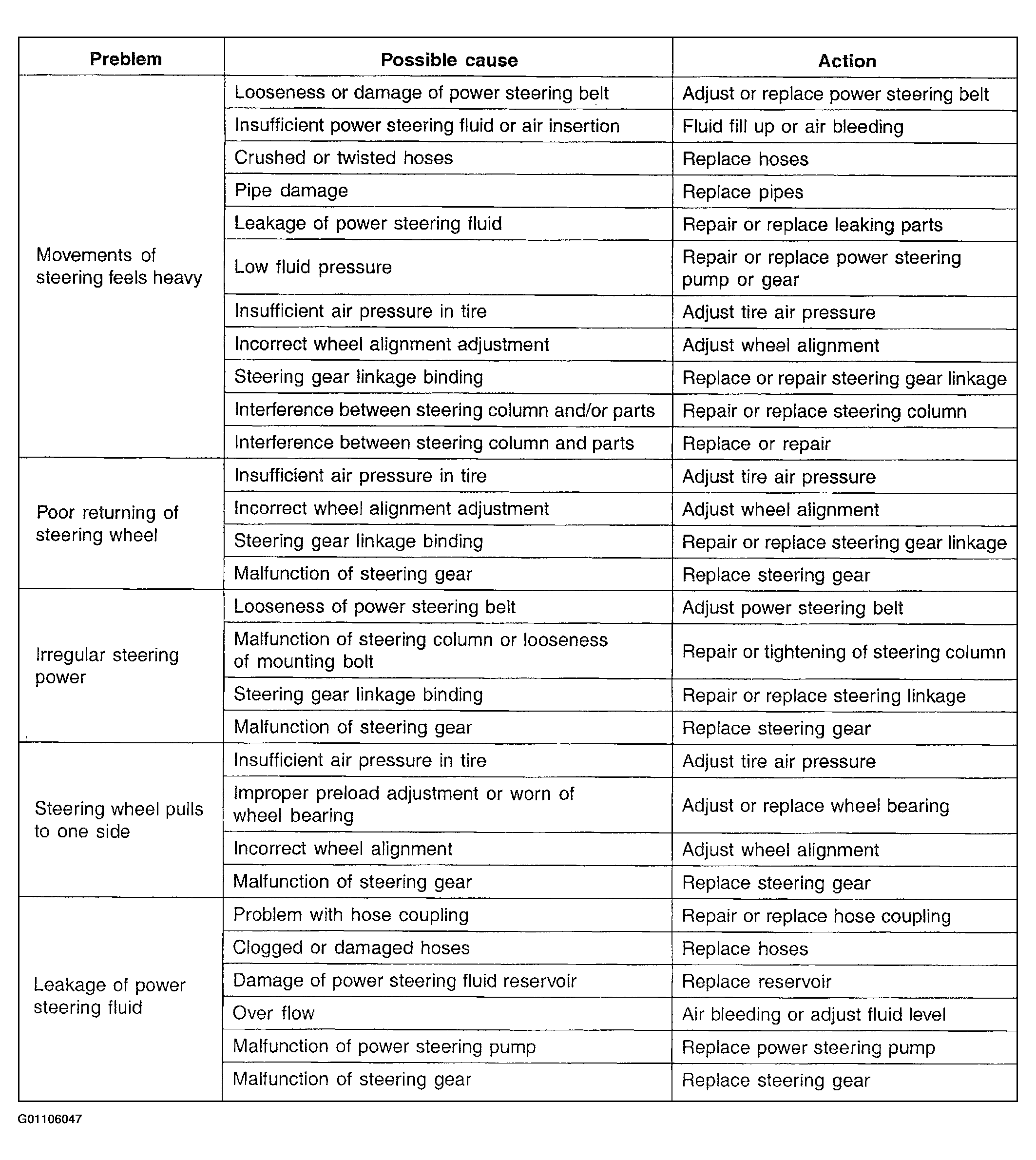

Fig 2: Power Steering Troubleshooting Guide (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
