Anti Lock: Wiring Diagram

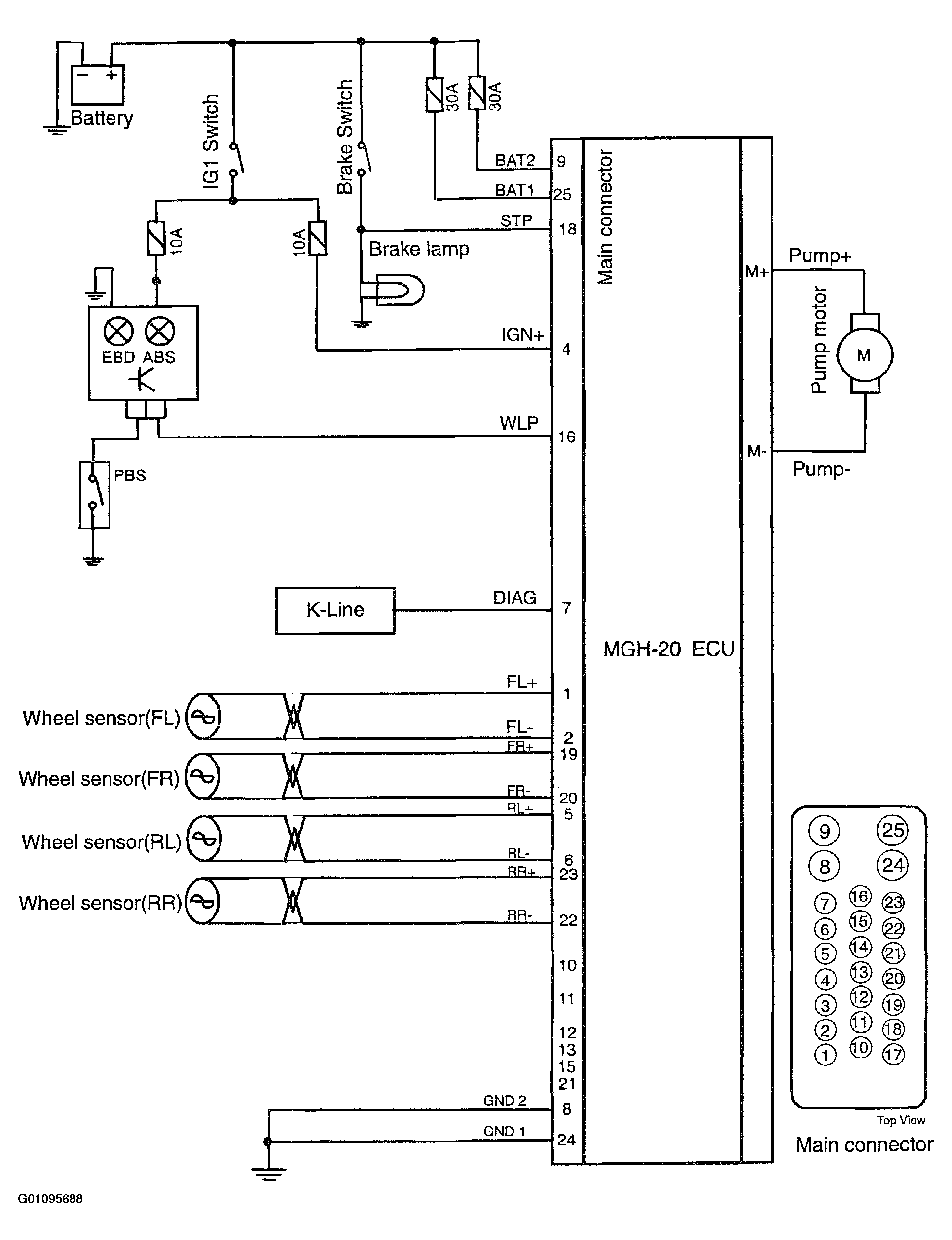

Fig 1: ABS System Wiring Diagram

G01095688

Courtesy of KIA MOTORS AMERICA, INC.
