Rio Base, Automatic
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Diagnosis & Overhaul
>>
Transaxle Disassembly
>>
Components
Transaxle Disassembly: Components

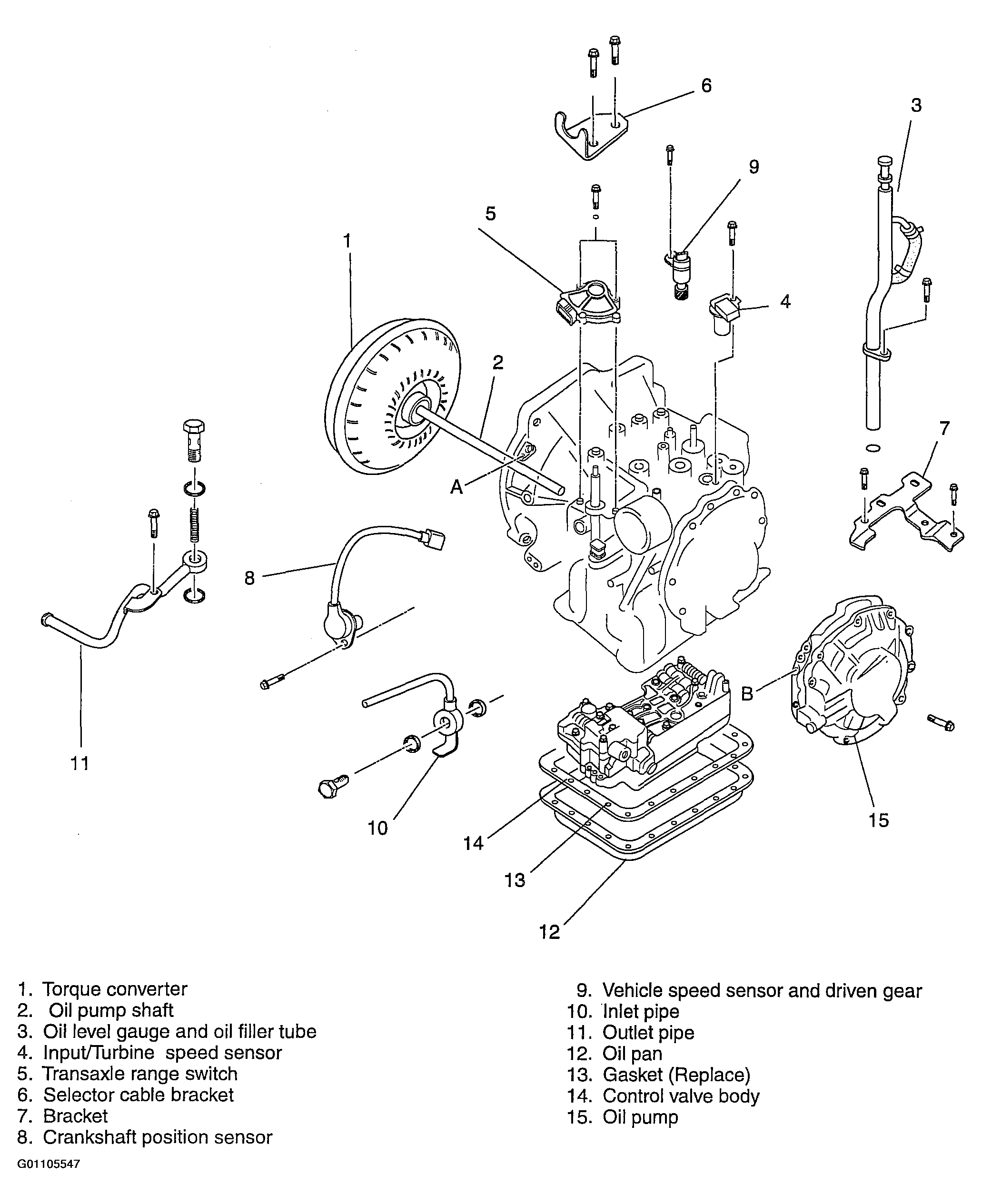

Fig 1: Identifying Transaxle Components (1 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

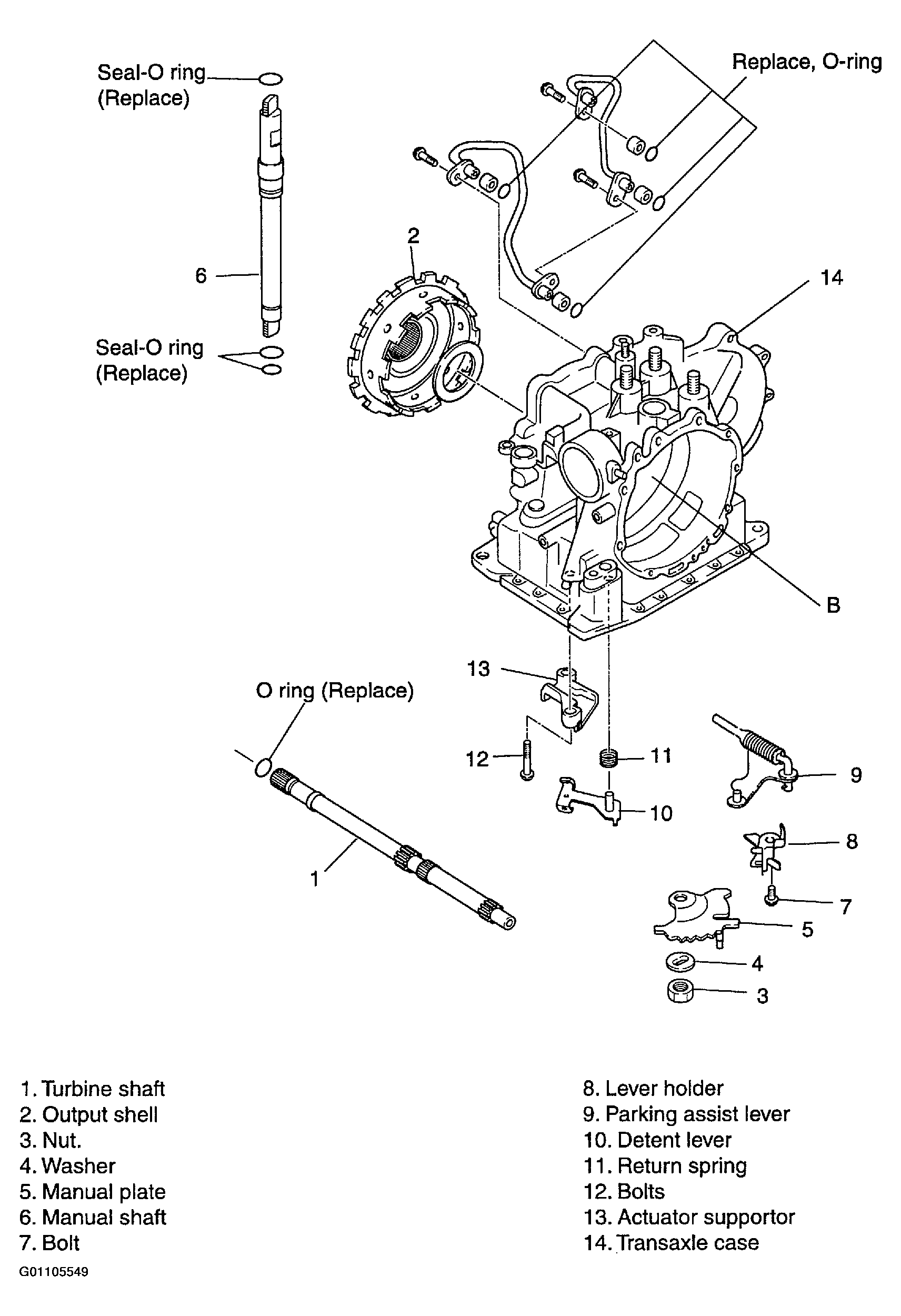

Fig 2: Identifying Transaxle Components (2 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

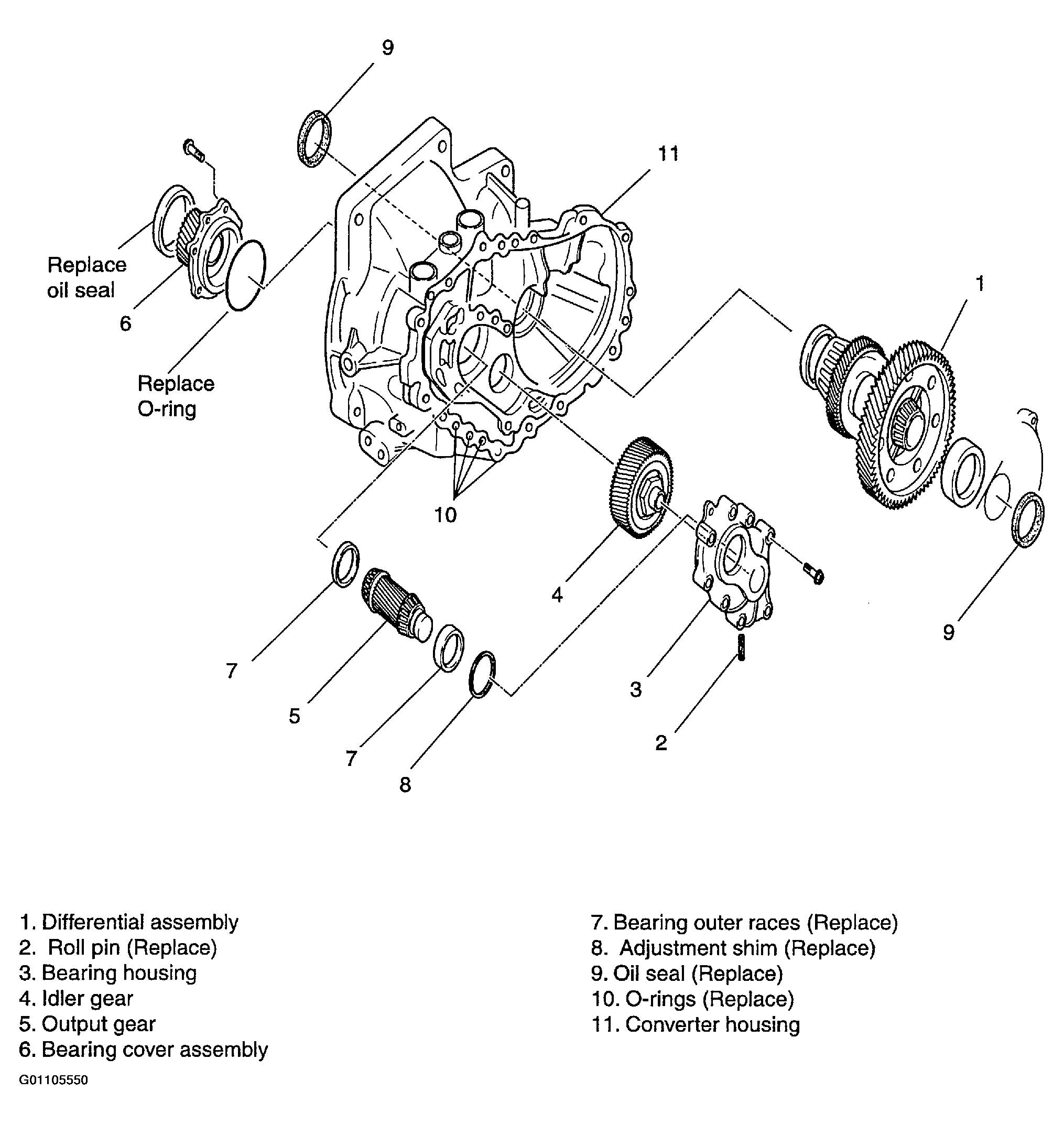

Fig 3: Identifying Transaxle Components (3 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

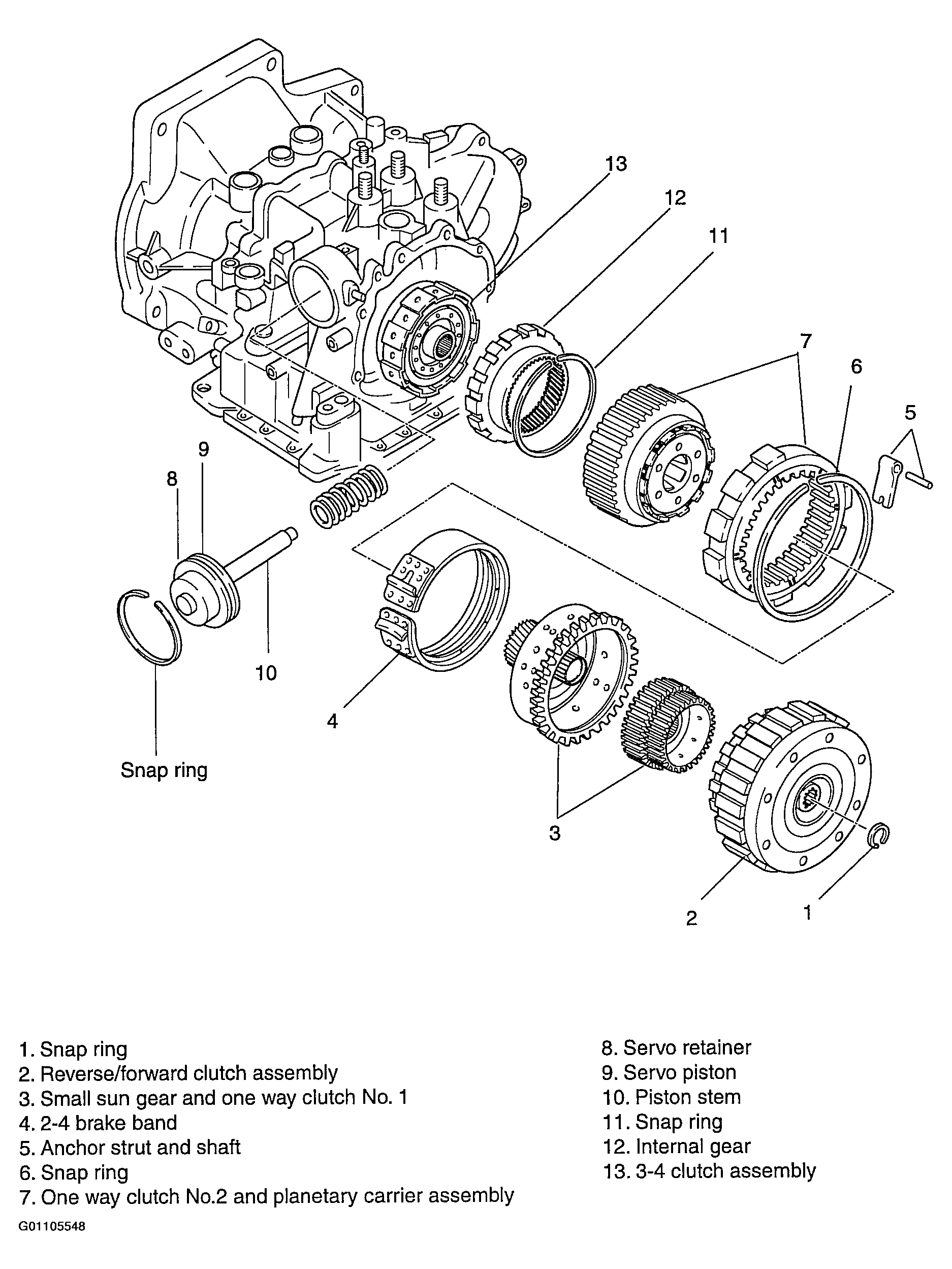

Fig 4: Identifying Transaxle Components (4 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
