Evaluation Of Line Pressure Test

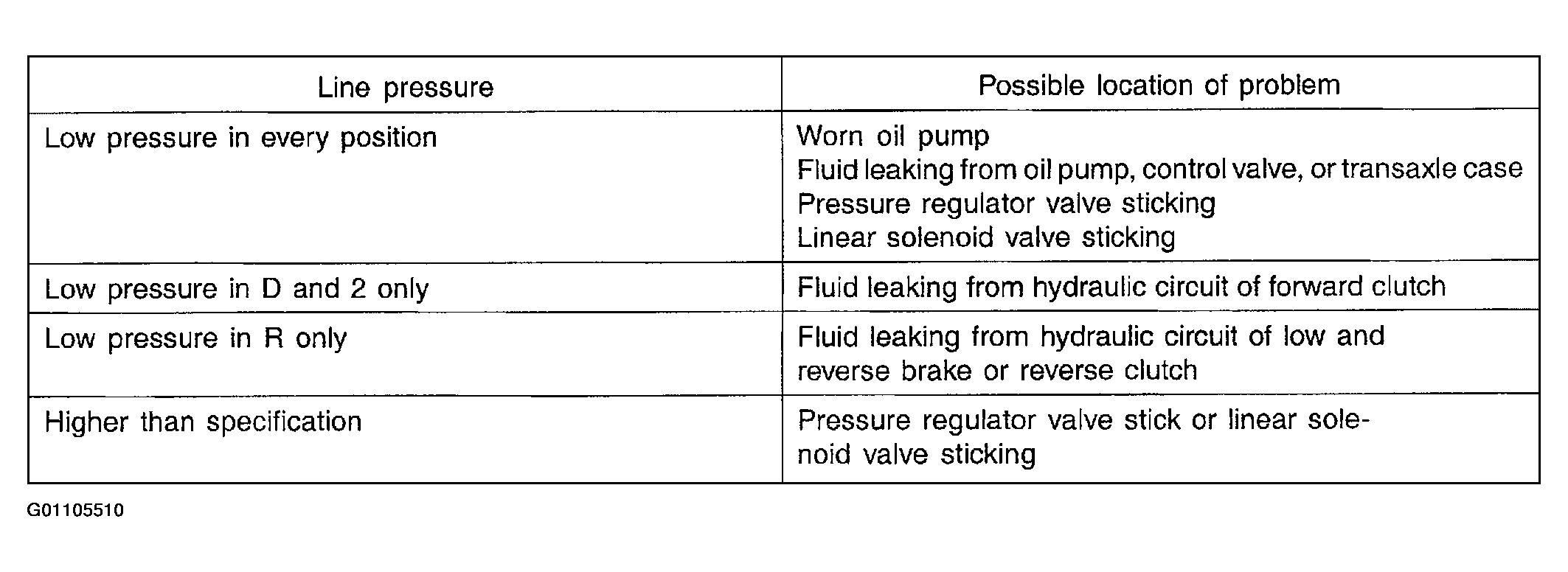

Fig 1: Illustrating Evaluation Of Line Pressure Test

G01105510

Courtesy of KIA MOTORS AMERICA, INC.
