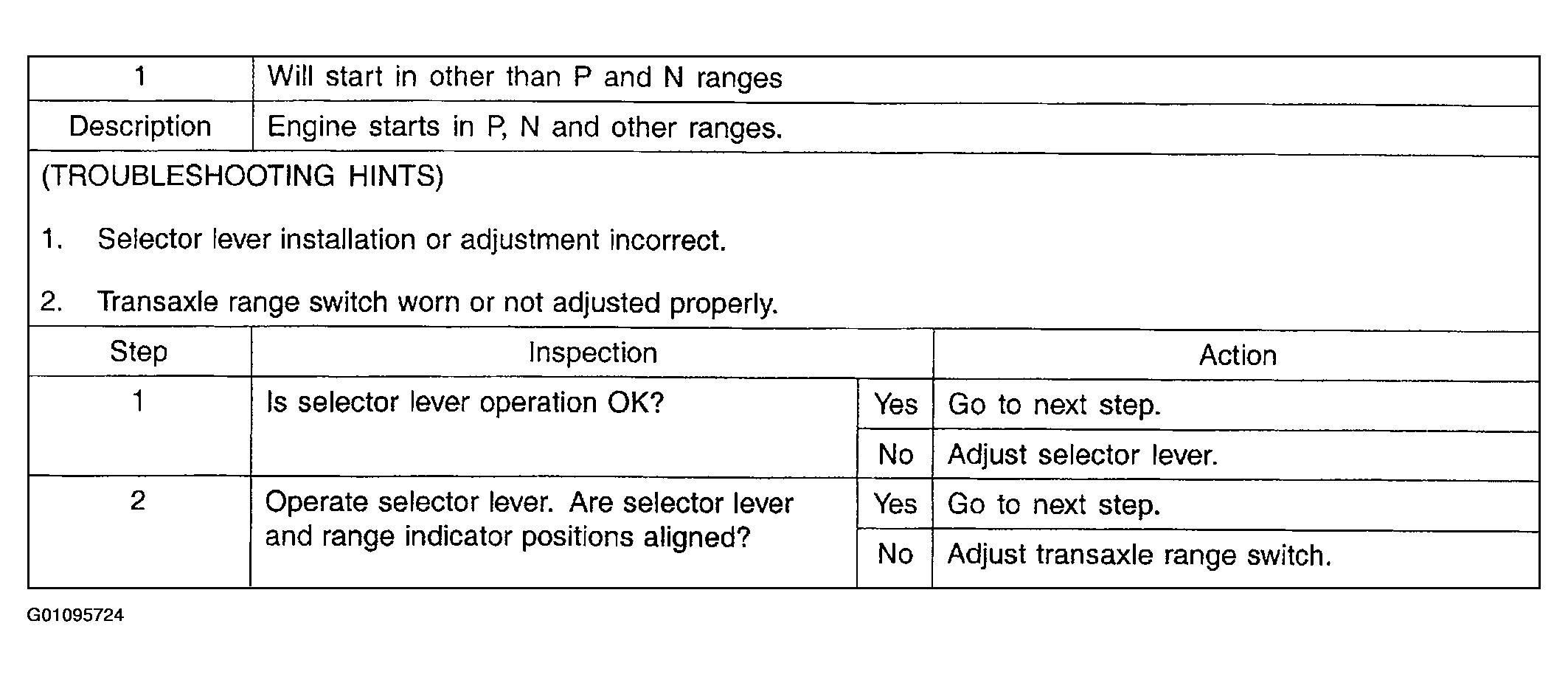

Troubleshooting Chart
Description: Further describes symptom. Confirm that chart addresses actual symptom before beginning troubleshooting.
Troubleshooting hints: This describes hints. This describes possible point of malfunction.
Step: This shows order of troubleshooting. Proceed with troubleshooting as indicated.
Inspection: This describes an inspection to quickly determine malfunction or parts. If a detailed procedure is necessary to perform inspection.
Action: This recommends appropriate action to take as a result (Yes/No) of inspection. How to perform action is described in illustration.
