Diagnostic Trouble Code Inspection Procedures

  1. Connect SST (0k2CA 089 HSP) to data link connector.

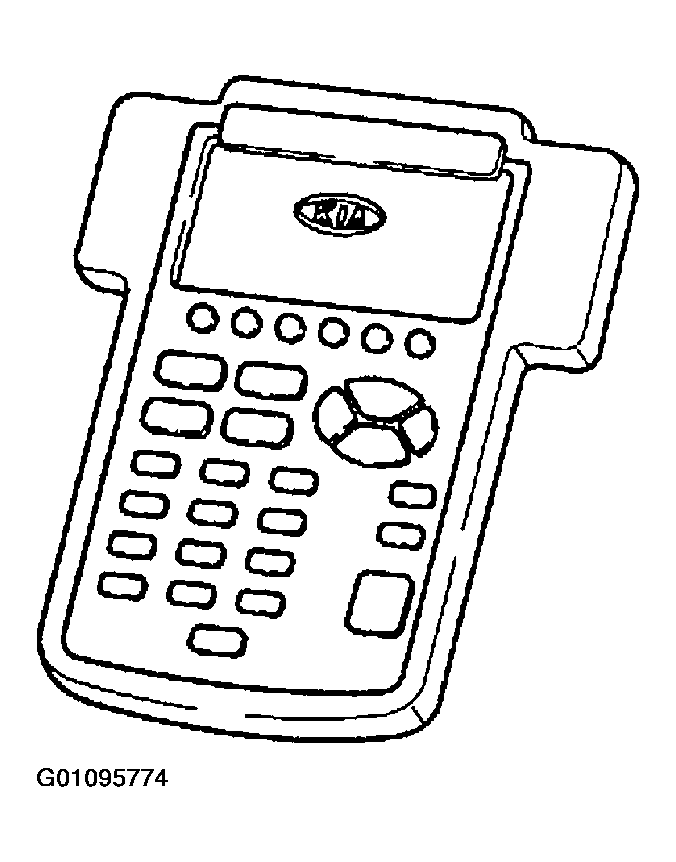

    Fig 1: Illustrating Service Tool
    G01095774Courtesy of KIA MOTORS AMERICA, INC.
  2. Turn ignition switch to ON.
  3. Check diagnostic trouble code(s), referring to Hi-scan pro operating manual.
  4. If a diagnostic trouble code(s) is displayed, check for cause by using number on diagnostic trouble code table. Repair as necessary.
  5. After repairs, perform After-Repair procedure to verify that there are no remaining diagnostic trouble codes.
