After-Repair Procedure

  1. Cancel diagnostic trouble code memory by using SST (0K2CA 089 HSP).
  2. Remove SST (0K2CA 089 HSP) from data link connector.
  3. Drive vehicle at 31 mph (50 km/h), and depress accelerator pedal fully to activate kickdown. Stop vehicle gradually.

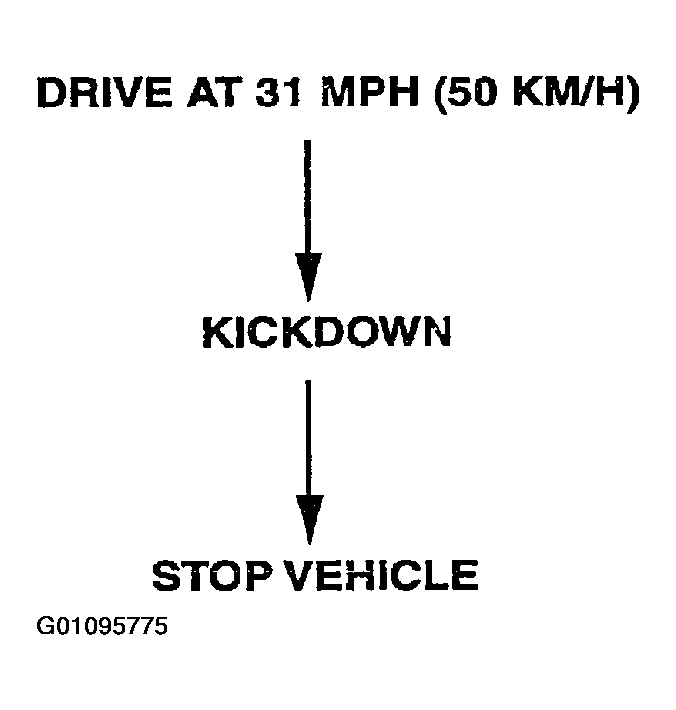

    Fig 1: Illustrating Vehicle Drive Cycle
    G01095775Courtesy of KIA MOTORS AMERICA, INC.
  4. Connect SST (0K2CA 089 HSP) to data link connector.
  5. Turn ignition switch to ON.
  6. Verify that no diagnostic trouble codes are displayed.
  7. Remove SST (0K2CA 089 HSP) from data link connector.
