Fluid Leaks: Components

  1. Gaskets, O-rings, and plugs.
  2. Oil hoses, oil pipes, and connections.
  3. Oil cooler.

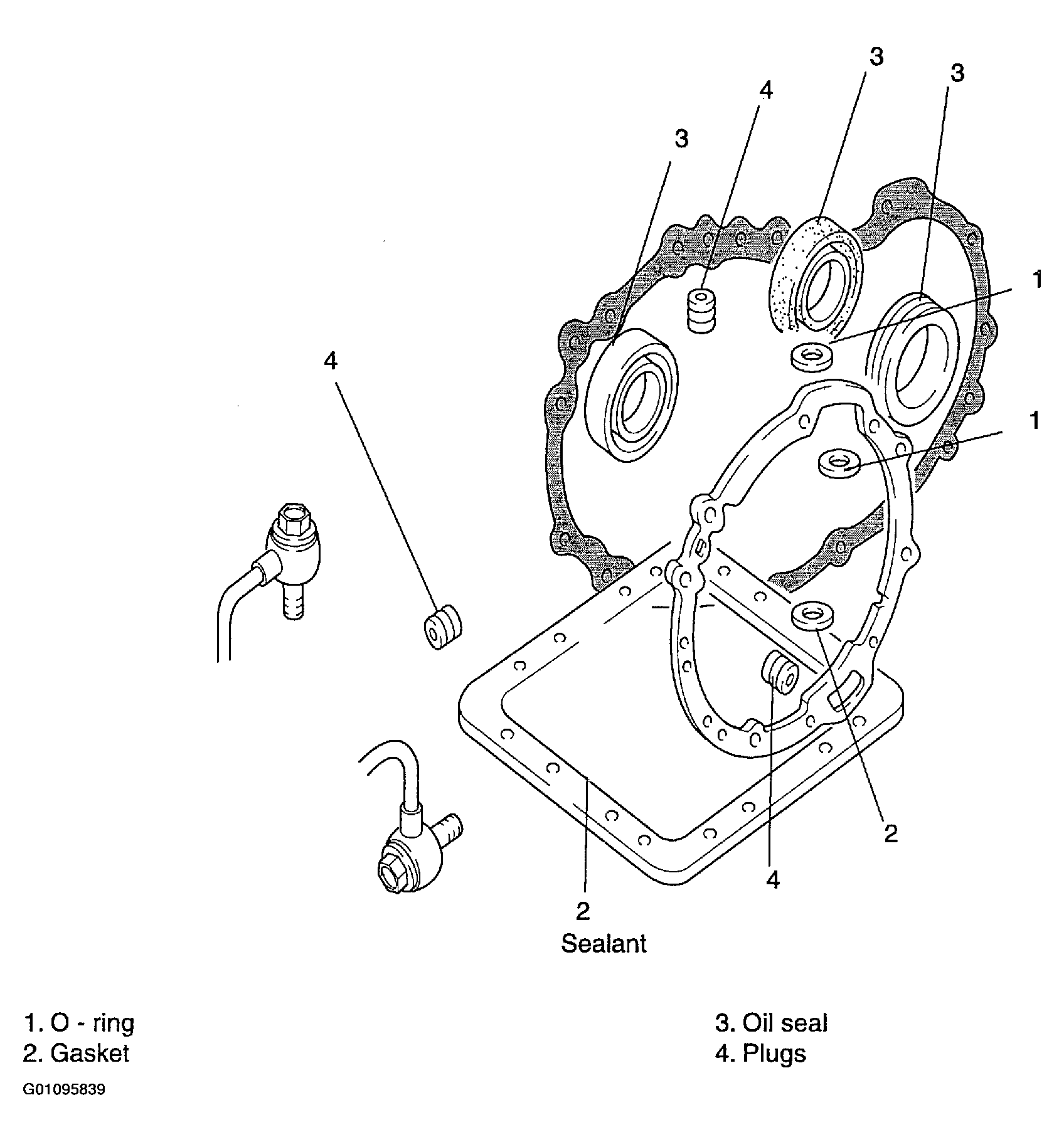

Fig 1: Identifying Fluid Leak Components
G01095839Courtesy of KIA MOTORS AMERICA, INC.
