Diagnostic Trouble Codes: Notes
NOTE:
According to TCM logic, transaxle range DTCs P0707 and P0708 trouble code accompanies vehicle speed sensor DTC P1500 trouble code.
Therefore, DTCs P0707 and P0708 should be repaired first. Check that DTCs P0707 and P0708 are cleared, and then inspect DTC P1500
Therefore, DTCs P0707 and P0708 should be repaired first. Check that DTCs P0707 and P0708 are cleared, and then inspect DTC P1500

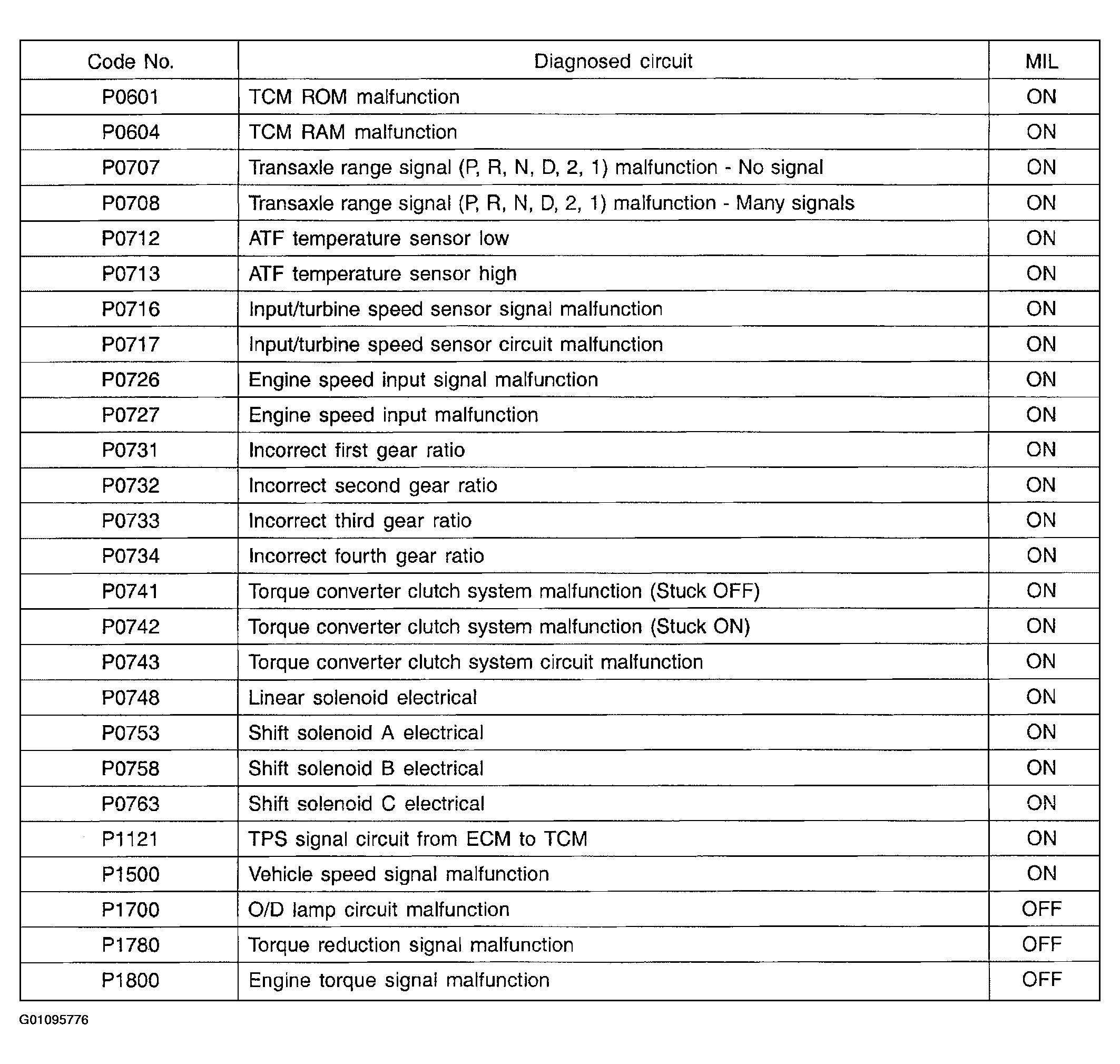

DTC INDEX
| DTC | Description |
|---|---|
| DTC P0601, P0604 | TCM ROM/RAM |
| DTC P0707, P0708 | TRANSAXLE RANGE SIGNAL MALFUNCTION |
| DTC P0712, P0713 | ATF SENSOR |
| DTC P0716, P0717 | INPUT/TURBINE SPEED SENSOR |
| DTC P0726, P0727 | ENGINE SPEED INPUT |
| DTC P0731 | INCORRECT FIRST GEAR RATIO |
| DTC P0732 | INCORRECT SECOND GEAR RATIO |
| DTC P0732 | INCORRECT THIRD GEAR RATIO |
| DTC P0734 | INCORRECT FOURTH GEAR RATIO |
| DTC P0741, P0742 | TORQUE CONVERTER CLUTCH SYSTEM MALFUNCTION |
| DTC P0743 | TORQUE CONVERTER CLUTCH SYSTEM CIRCUIT MALFUNCTION |
| DTC P0748 | LINEAR SOLENOID ELECTRICAL |
| DTC P0753 | SHIFT SOLENOID "A" ELECTRICAL |
| DTC P0758 | SHIFT SOLENOID "B" ELECTRICAL |
| DTC P0763 | SHIFT SOLENOID "C" ELECTRICAL |
| DTC P1121 | TPS SIGNAL CIRCUIT FROM ECM TO TCM |
| DTC P1500 | VEHICLE SPEED SIGNAL MALFUNCTION |
| DTC P1700 | O/D OFF LAMP CIRCUIT MALFUNCTION |
| DTC P1780 | TORQUE REDUCTION SIGNAL MALFUNCTION |
| DTC P1800 | ENGINE TORQUE SIGNAL MALFUNCTION |
