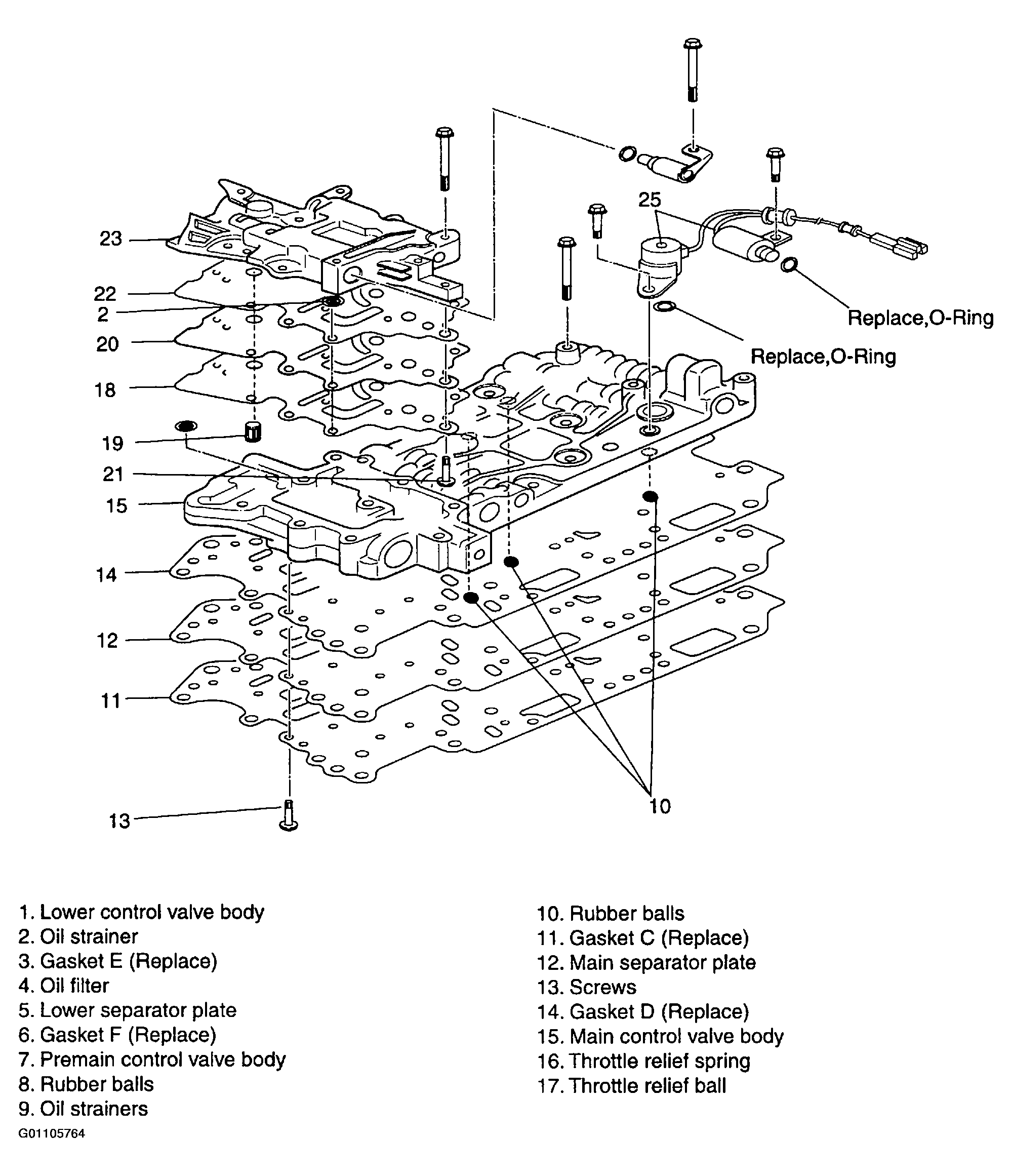

Valve Body Assembly: Disassembly: Notes

1. Remove oil pipe assembly.

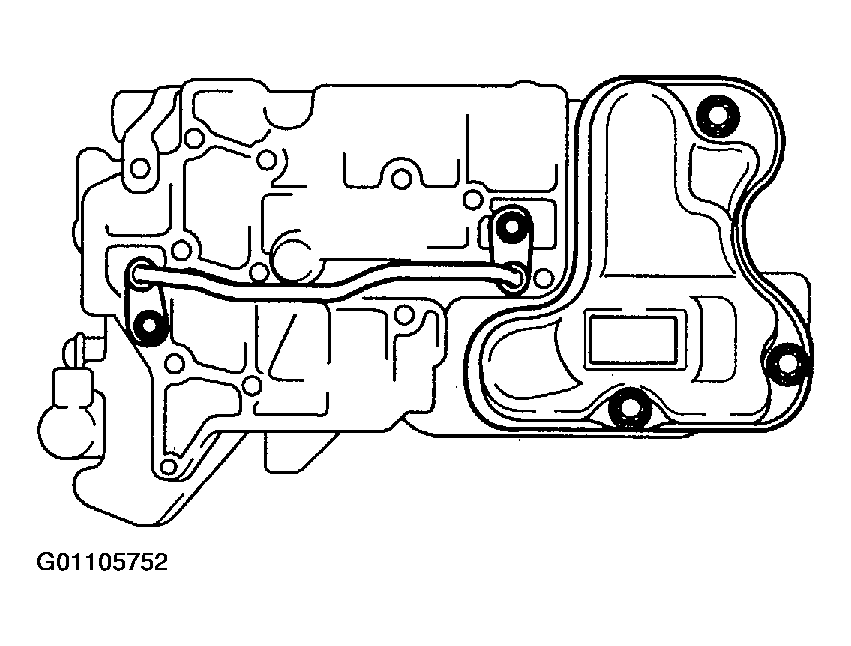

   Fig 1: Removing Oil Pipe Assembly

   Courtesy of KIA MOTORS AMERICA, INC.
2. Remove O-rings from oil pipe assembly.
3. Remove shift solenoid "A".
4. Remove torque converter clutch solenoid valve and oil strainer.

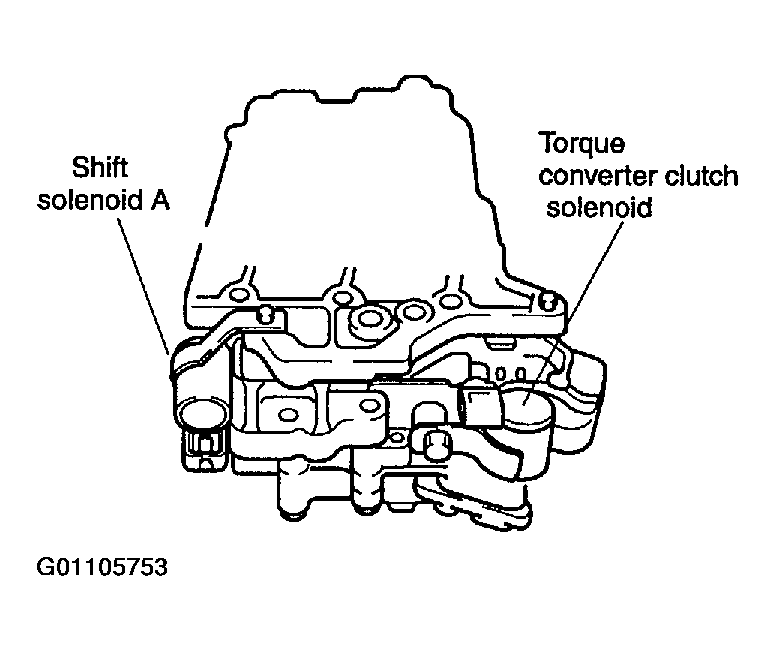

   Fig 2: Removing Shift & Torque Converter Clutch Solenoid Valves

   Courtesy of KIA MOTORS AMERICA, INC.

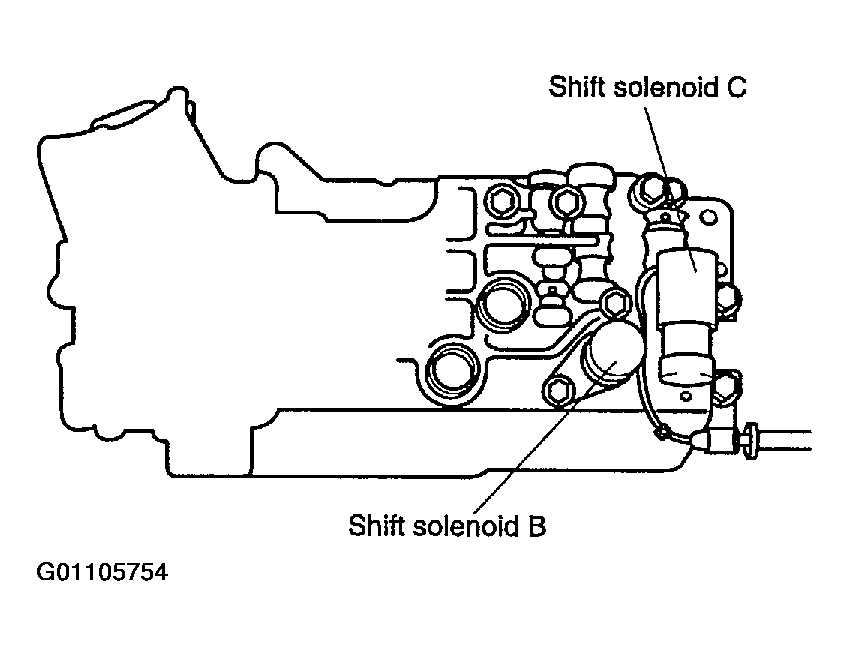

5. Remove shift solenoids "B" and "C'.
   Fig 3: Removing Shift Solenoids "B" And "C"

   Courtesy of KIA MOTORS AMERICA, INC.
6. Remove linear solenoid valve.

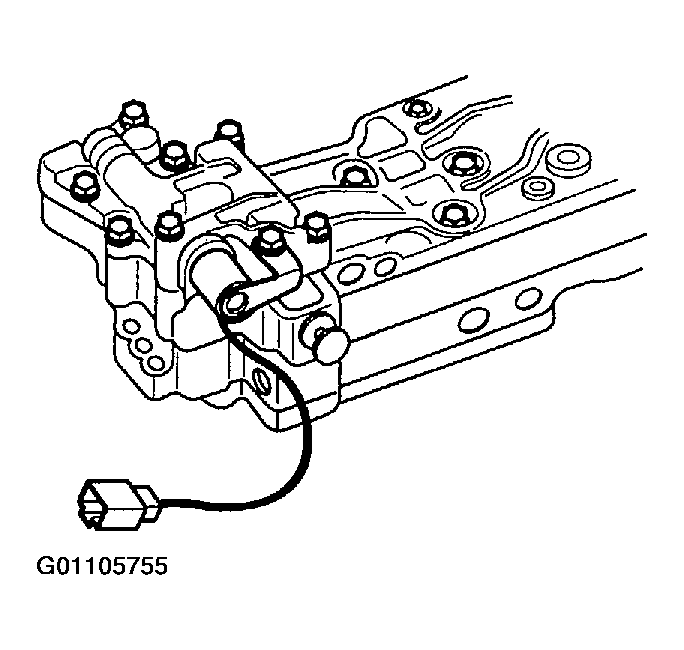

   Fig 4: Removing Linear Solenoid Valve

   Courtesy of KIA MOTORS AMERICA, INC.
7. Remove nine upper control valve body bolts.

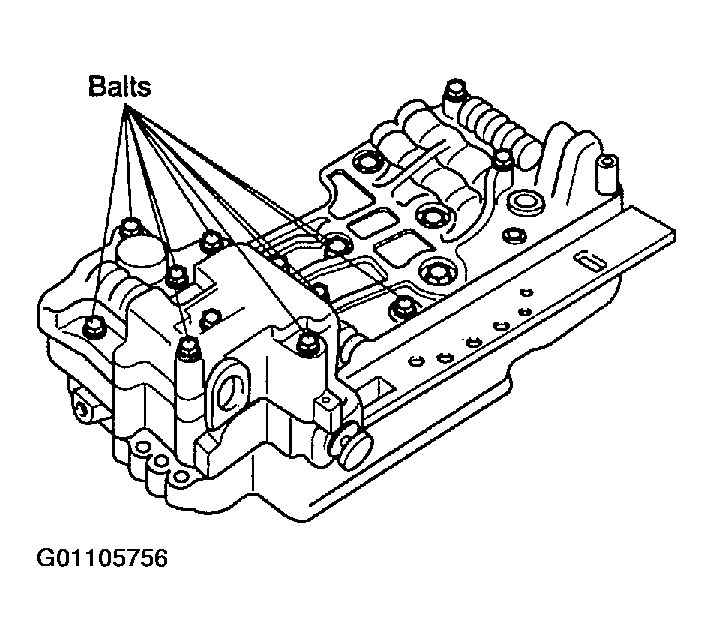

   Fig 5: Remove Upper Control Valve Body Bolts

   Courtesy of KIA MOTORS AMERICA, INC.
8. Remove two screws from upper control valve body.
9. Remove gasket B, upper separator plate, oil filter, oil strainer and gasket A.

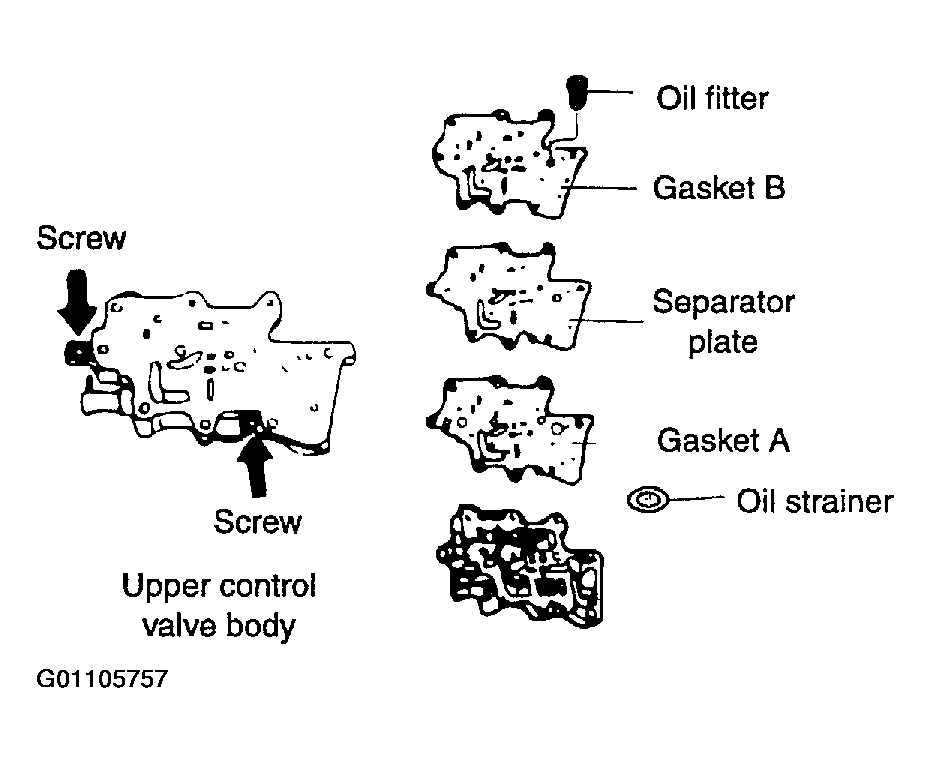

   Fig 6: Removing Gasket B, Upper Separator Plate, Oil Filter, Oil Strainer And Gasket A

   Courtesy of KIA MOTORS AMERICA, INC.
10. Remove seven main control valve body bolts then remove main control valve.

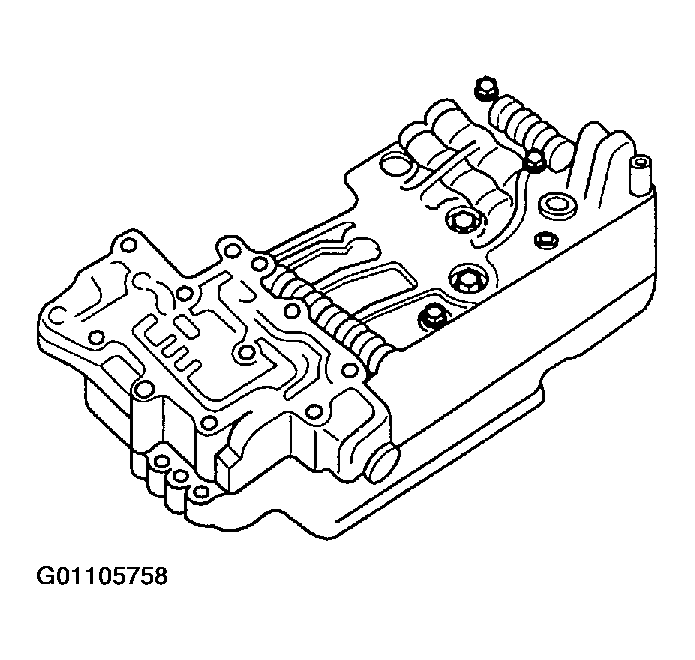

    Fig 7: Removing Main Control Valve

    Courtesy of KIA MOTORS AMERICA, INC.

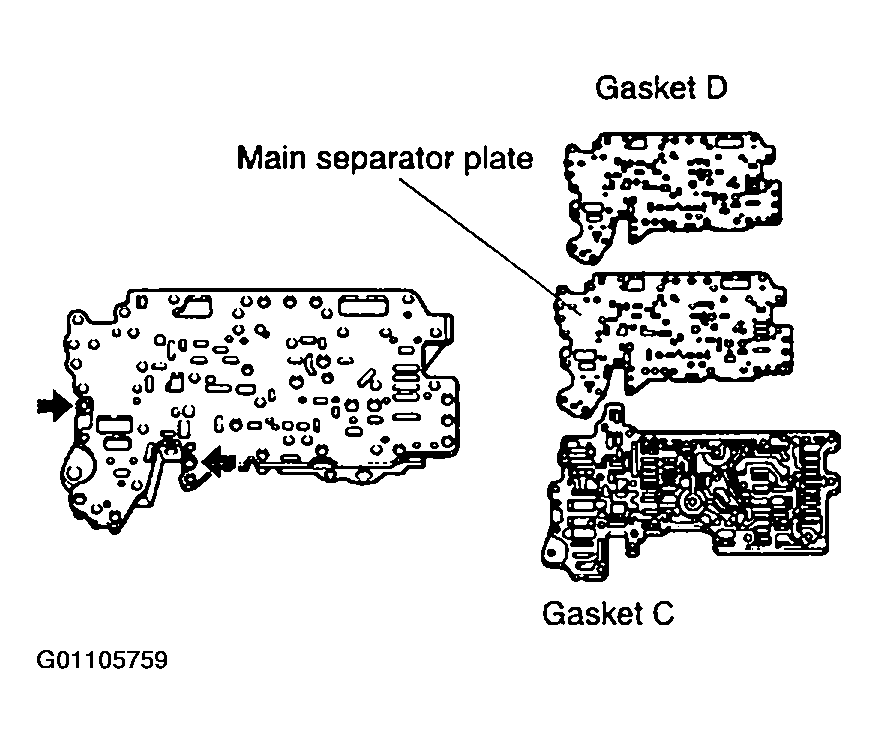

11. Remove gasket D, main separator plate and gasket C.
    Fig 8: Removing Gasket D, Main Separator Plate And Gasket C

    Courtesy of KIA MOTORS AMERICA, INC.
12. Remove four rubber balls from main control valve body.

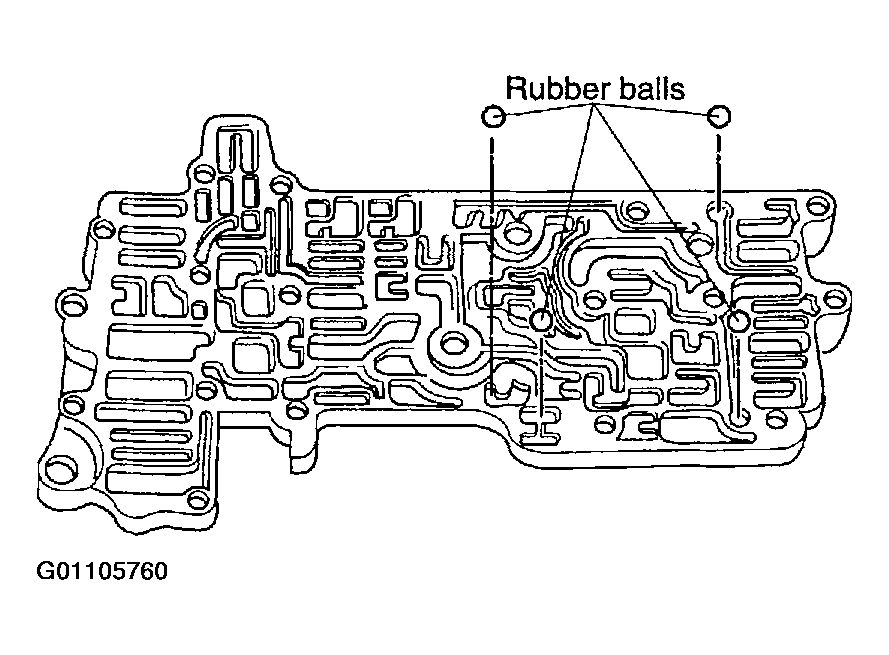

    Fig 9: Removing Four Rubber Balls From Main Control Valve Body

    Courtesy of KIA MOTORS AMERICA, INC.

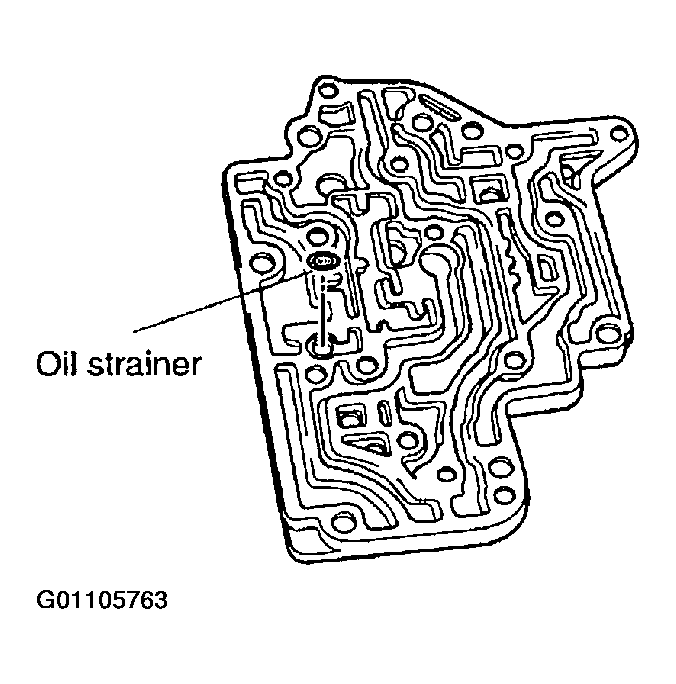

13. Remove oil strainer, steel ball and two rubber balls from premain control valve body.
    Fig 10: Removing Oil Strainer, Steel Ball And Two Rubber Balls From Premain Control Valve Body

    Courtesy of KIA MOTORS AMERICA, INC.
14. Remove six bolts then remove premain control valve body.

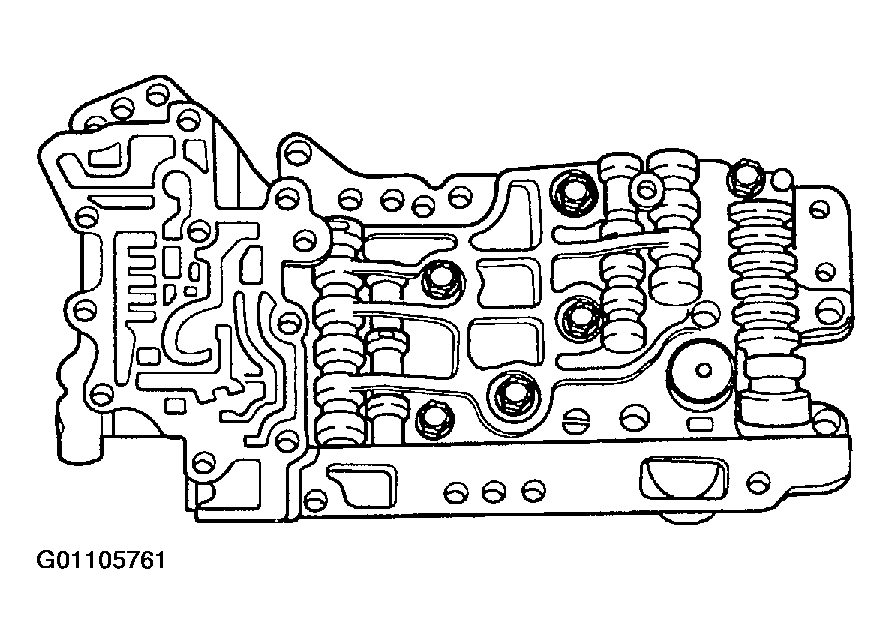

    Fig 11: Removing Premain Control Valve Body

    Courtesy of KIA MOTORS AMERICA, INC.
15. Remove gasket E, lower separator plate, oil filter, and gasket F.

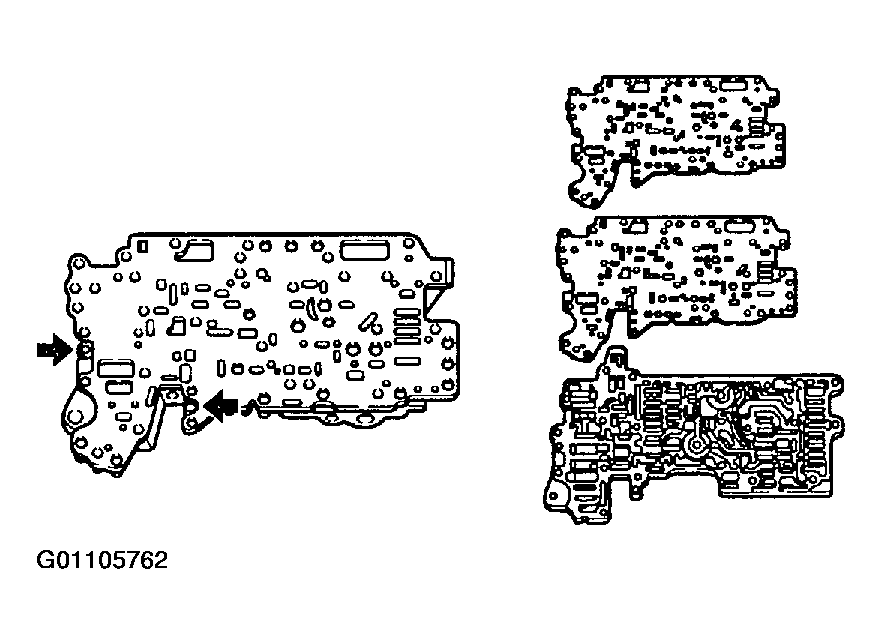

    Fig 12: Removing Gasket E, Lower Separator Plate, Oil Filter, And Gasket F

    Courtesy of KIA MOTORS AMERICA, INC.
16. Remove oil strainer from lower control valve body.
