Home >> Kia >> 2003 >> Rio Base, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Diagnosis & Overhaul >> Component Disassembly, Inspection & Reassembly >> Transaxle Case >> Notes

Transaxle Case: Notes

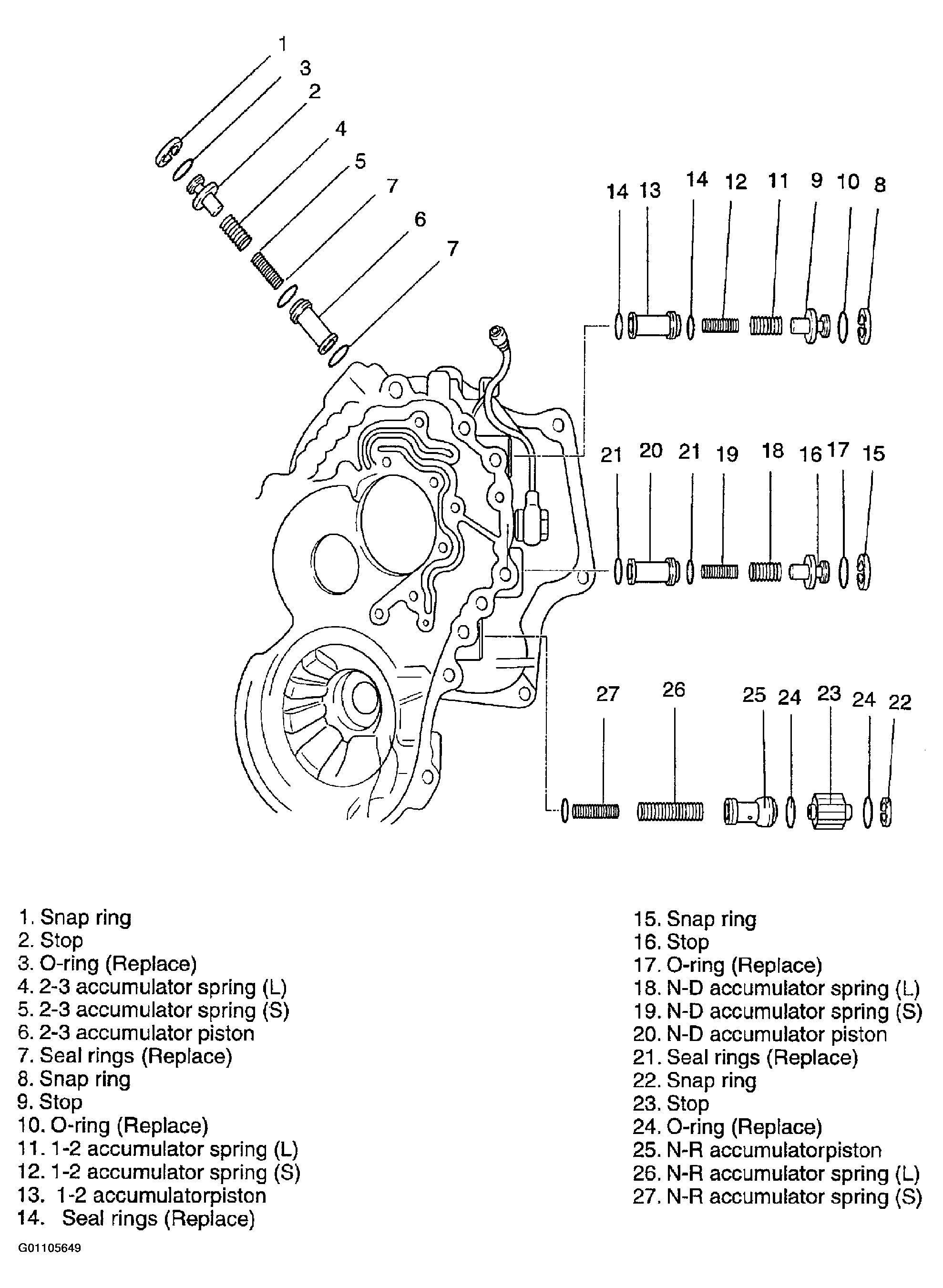

Fig 1: Illustrating Transaxle Case Components

G01105649

Courtesy of KIA MOTORS AMERICA, INC.
