Main Control Valve Body: Reassembly

Insert 3-4 shift spring, 3-4 shift valve and stop plug. Secure them with stop pin.
Insert low reducing spring, low reducing valve and stop plug. Secure them with stop pin.
Insert 1-2 shift spring, 1-2 shift valve and stop plug. Secure them with stop pin.

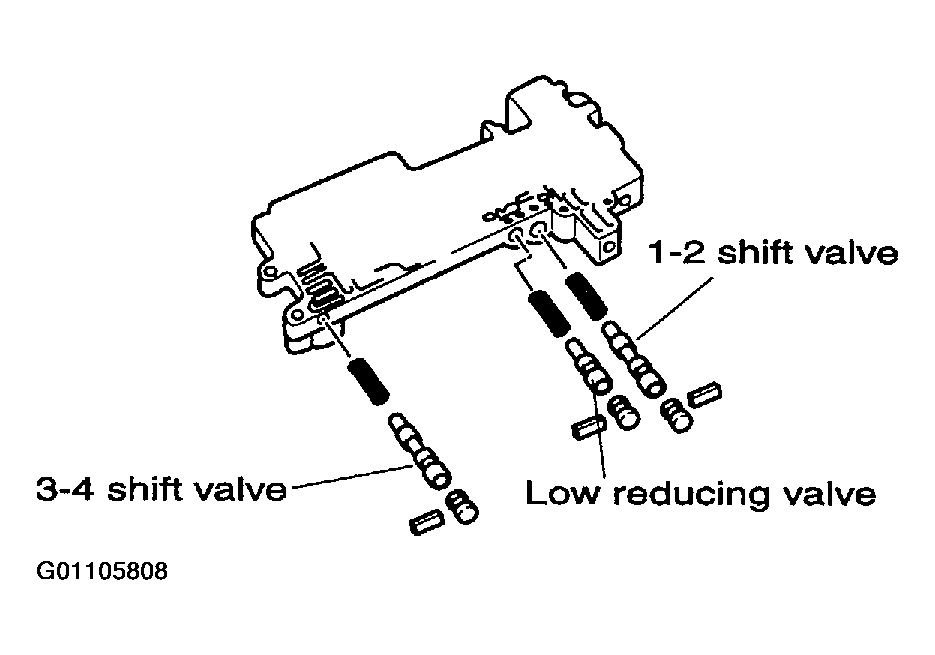

Fig 1: Inserting 3-4, 1-2 Shift Components And Low Reducing Valve
Courtesy of KIA MOTORS AMERICA, INC.
Insert pressure regulator valve, pressure regulator spring, pressure regulator spring seat, regulator plug sleeve, pressure regulator plug and stop plug. Secure them with roll pin.

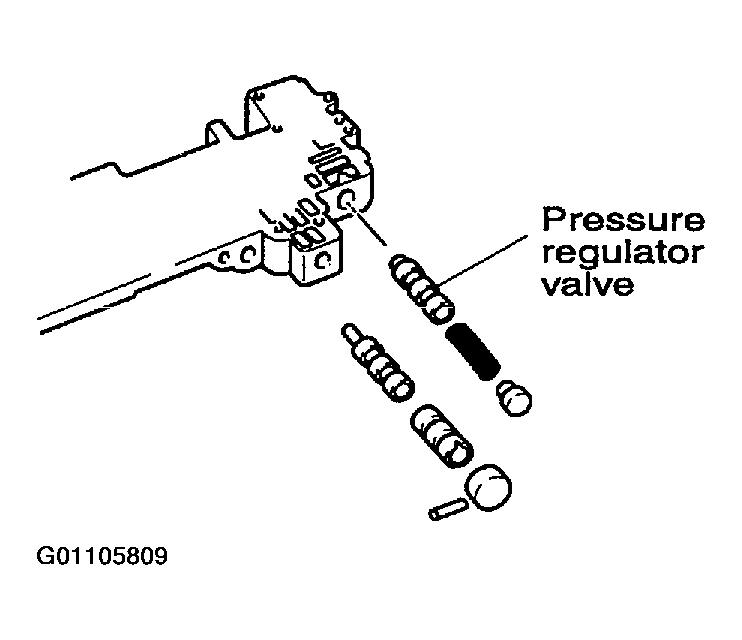

Fig 2: Inserting Pressure Regulator Components
Courtesy of KIA MOTORS AMERICA, INC.
Insert 2-3 timing valve and 2-3 timing spring. Secure them with spring retainer.
Proceed to insert manual valve.

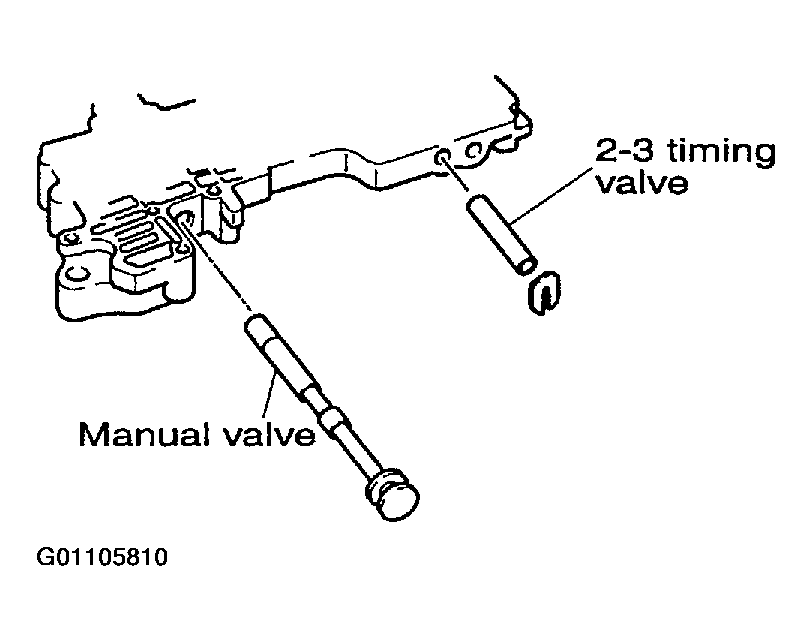

Fig 3: Inserting 2-3 Timing Valve And 2-3 Timing Spring & Manual Valve
Courtesy of KIA MOTORS AMERICA, INC.
