Main Control Valve Body: Inspection

  1. Measure spring free lengths.

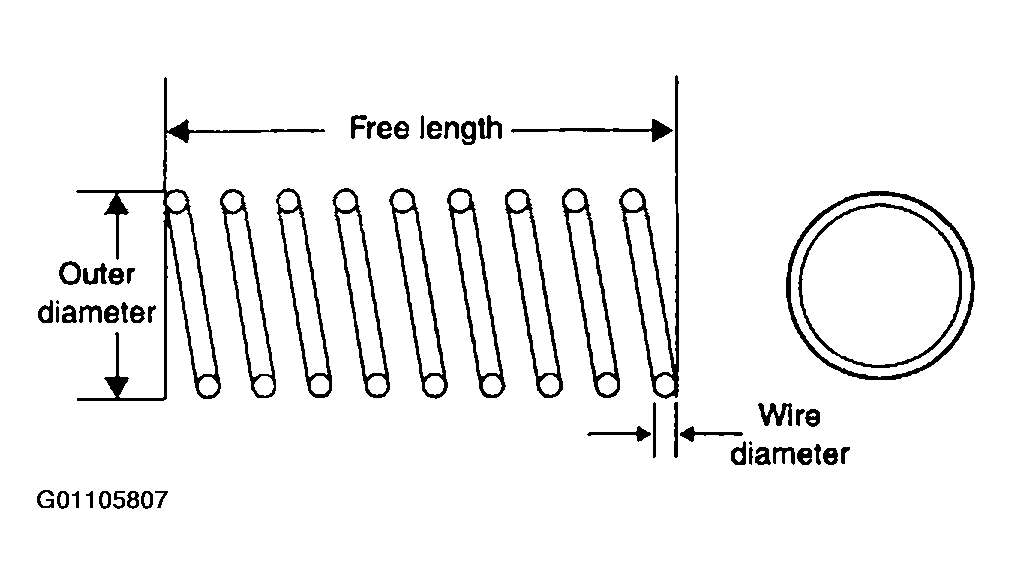

    Fig 1: Measuring Spring Free Lengths
    G01105807Courtesy of KIA MOTORS AMERICA, INC.

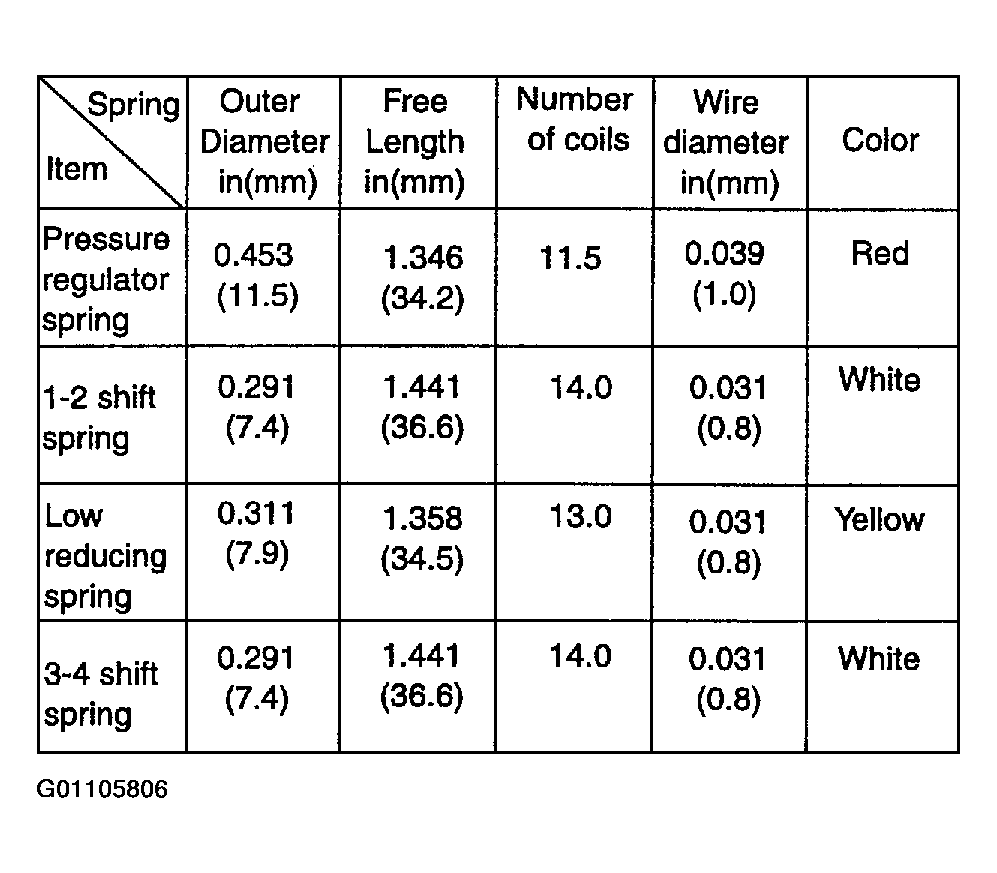

    Fig 2: Spring Free Length Specification Chart
    G01105806Courtesy of KIA MOTORS AMERICA, INC.
  2. If not within specification, replace spring(s).
