Main Control Valve Body: Component

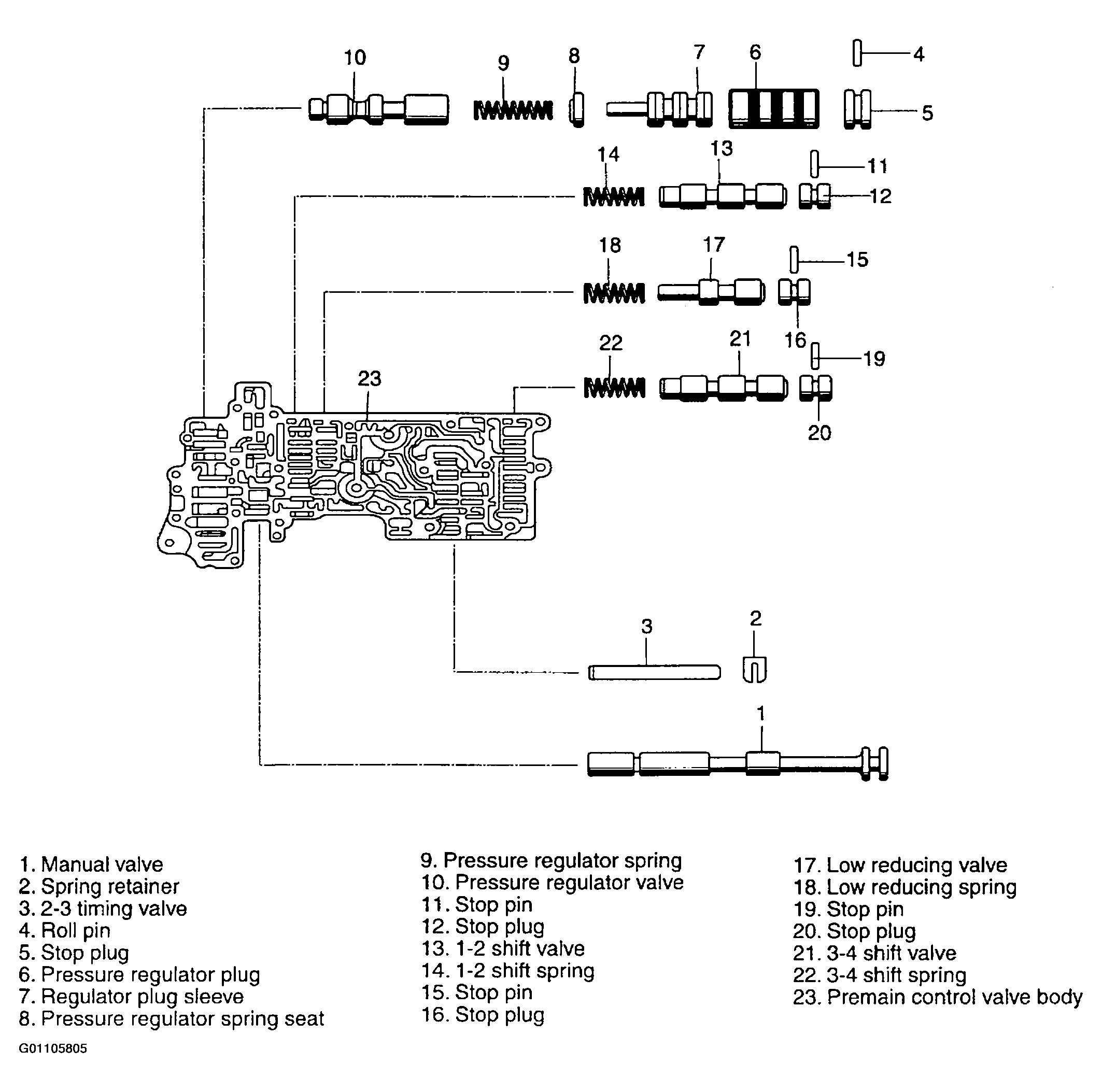

Fig 1: Illustrating Main Control Valve Body Components

G01105805

Courtesy of KIA MOTORS AMERICA, INC.
