Component Disassembly, Inspection & Reassembly: Differential: Pre-Inspection

Backlash of side gear and pinion gear

1. Before disassembly, measure backlash of side gears and pinion gears. If not within specification, replace differential assembly.

   Backlash

   Standard:

   0.001~0.004 in (0.025~0.1 mm)

   Maximum:

   0.020 in (0.5 mm)

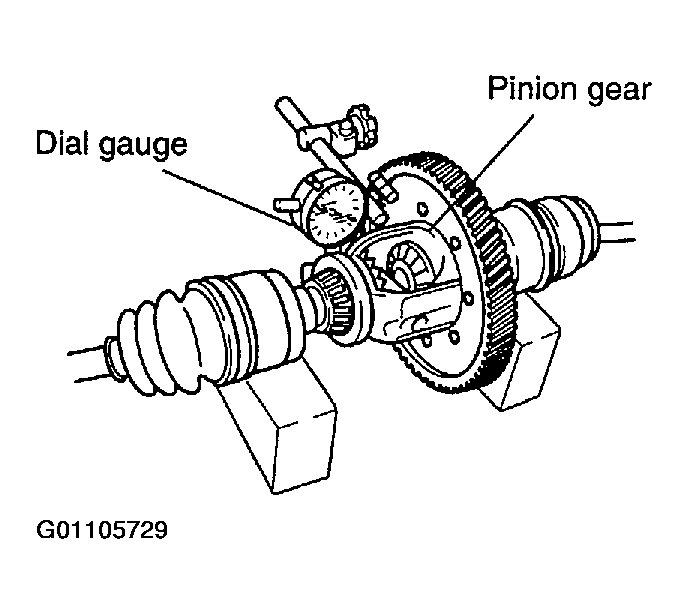

Fig 1: Measuring Side Gear Backlash

Courtesy of KIA MOTORS AMERICA, INC.
