Solenoid Valve Operation Table: O/D Off System

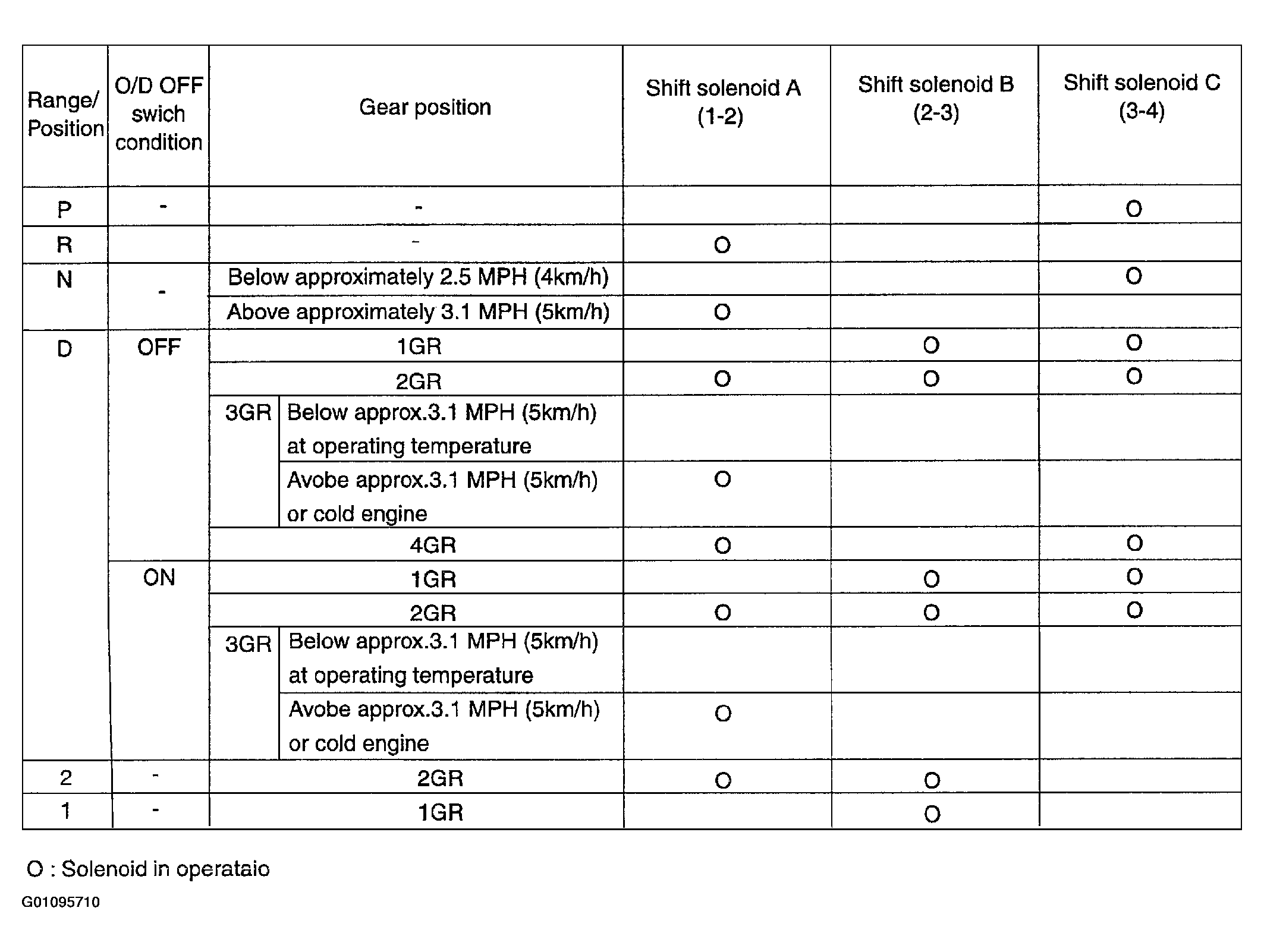

Fig 1: Solenoid Valve Operation Table

G01095710

Courtesy of KIA MOTORS AMERICA, INC.
