Shift Lever: Removal

  1. Disconnect negative battery cable.
  2. Remove ash tray then remove two screws.
  3. Disconnect cigarette lighter connector then remove center panel.
  4. Remove rear console and front console.
  5. Shift selector lever to P range.
  6. Remove selector cable mounting bolts.
  7. Remove selector cable nut.
  8. Loosen the shift lock cable nut and then disconnect the shift lock cable.
  9. Remove the console bracket.
  10. Disconnect the O/D OFF Connector.
  11. Loosen the set plate nut after raising the vehicle then disconnect the selector lever.

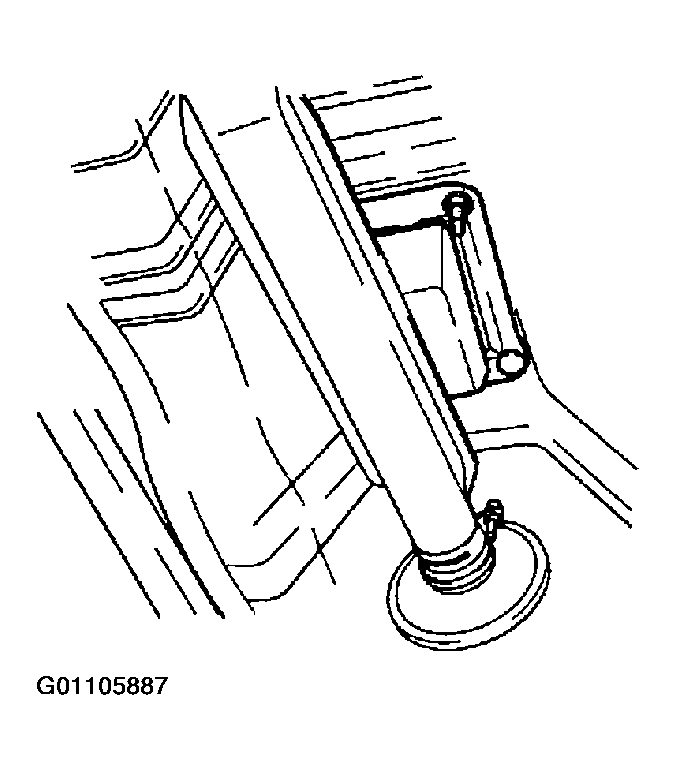

    Fig 1: Loosening The Set Plate Nut
    G01105887Courtesy of KIA MOTORS AMERICA, INC.
