Shift Lever: Reassembly
- Install the selector lever to the base plate.
- Install the guide plate to the base plate.
Tightening torque:
61~86.81 lb. in (6.9~9.8 N.m, 70~100 kg.cm)
- Apply grease (spec: O-GL02) to inside of roller.
- Shift selector lever to P range.
- Loosely install spring plate and assist plate.
Tightening torque:
18~26 lb. in (2.0~2.9N.m, 20~30kg.cm)

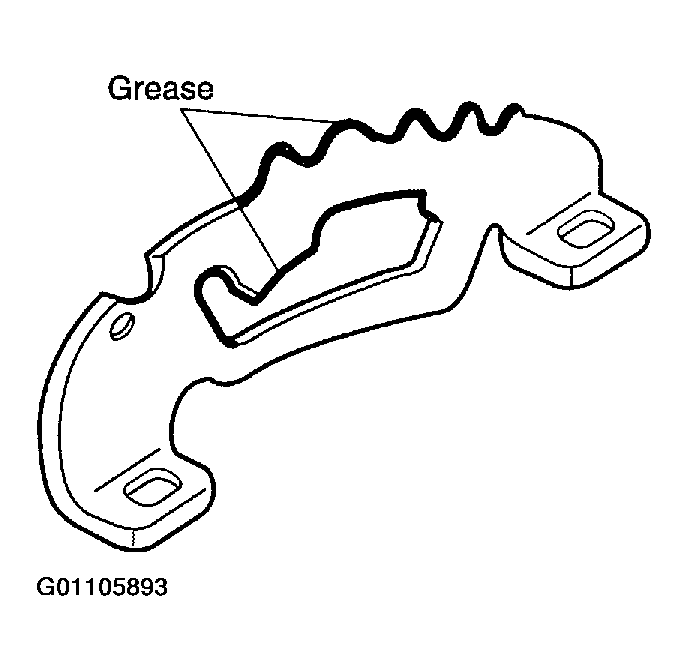

- Apply grease (0-GL02) to inside and outside of the guide plate.
