Shift Lever: Installation
- Install selector lever then tighten selector lever base plate nuts.
Tightening torque:
11.5~16.6 lb. ft (15.7~22.6 N.m, 1.6~2.3 kg.m)

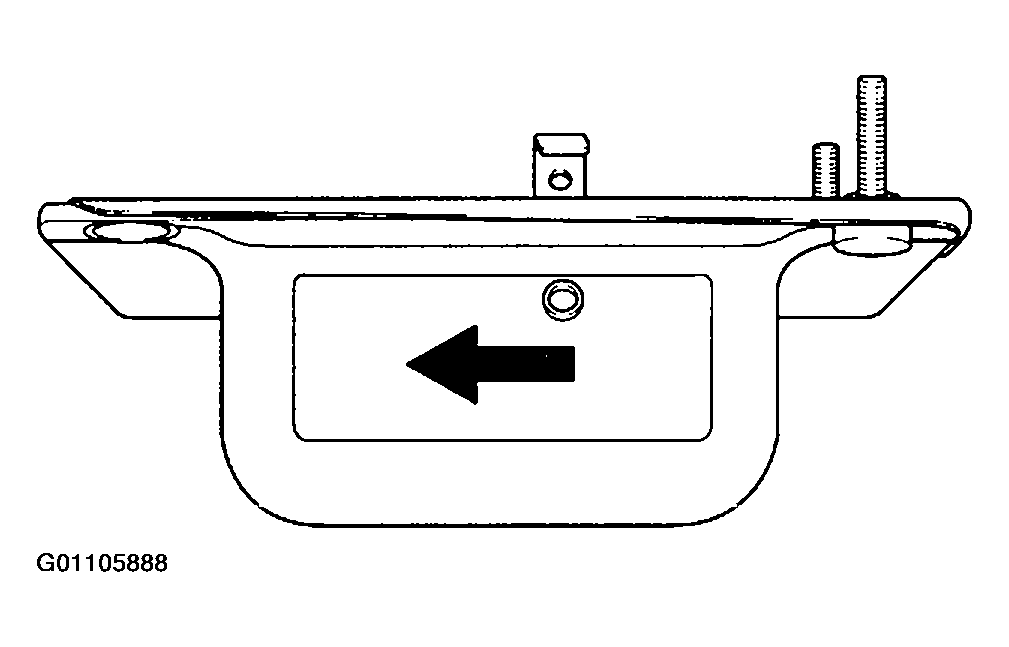

NOTE: Install the set plate with the arrow headed to the front as shown in the figure. - Install the console bracket.
- Connect the O/D OFF Connector.
- Shift selector lever to P range.
- Tighten selector lever base plate nut.
Tightening torque:
60~86 lb. in (6.8~9.8 N.m, 70~100 kg.cm)
- Tighten selector cable mounting bolt and nut.
Tightening torque:
60~86 lb. in (6.8~9.8 N.m, 70~100 kg.cm
- Tighten the shift lock cable nut.
Tightening torque:
7~10.8 lb. ft (9.8~14.7 N.m, 1.0~1.5 kg.m)
- Install the front and rear console.
- Install cover panel then connect cigar lighter connector.
- Install Ash tray.
- Connect negative battery cable.
- Verify correct operation of selector lever.
