Shift Lever: Component

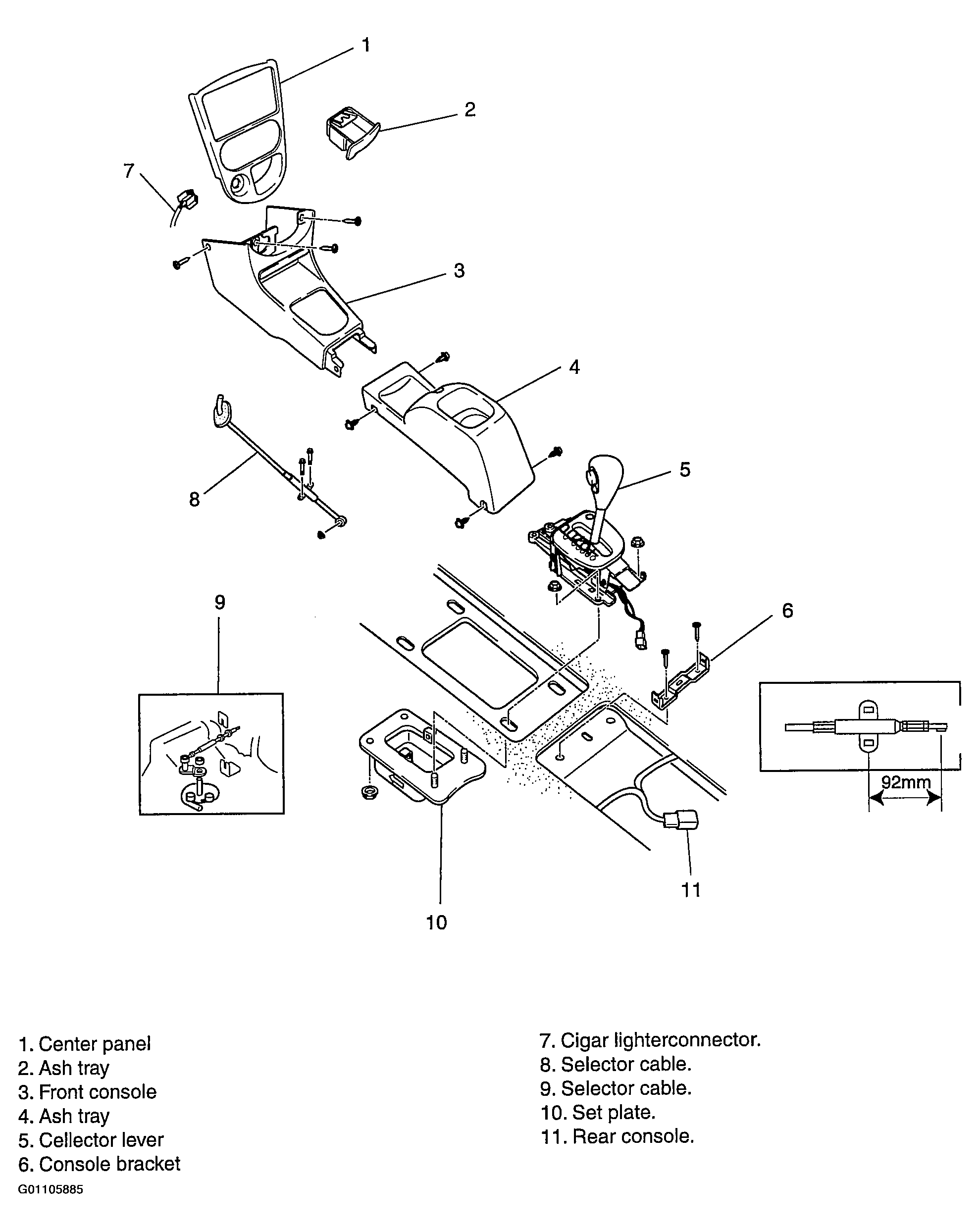

Fig 1: Illustrating Shift Lever & Console Components
Courtesy of KIA MOTORS AMERICA, INC.

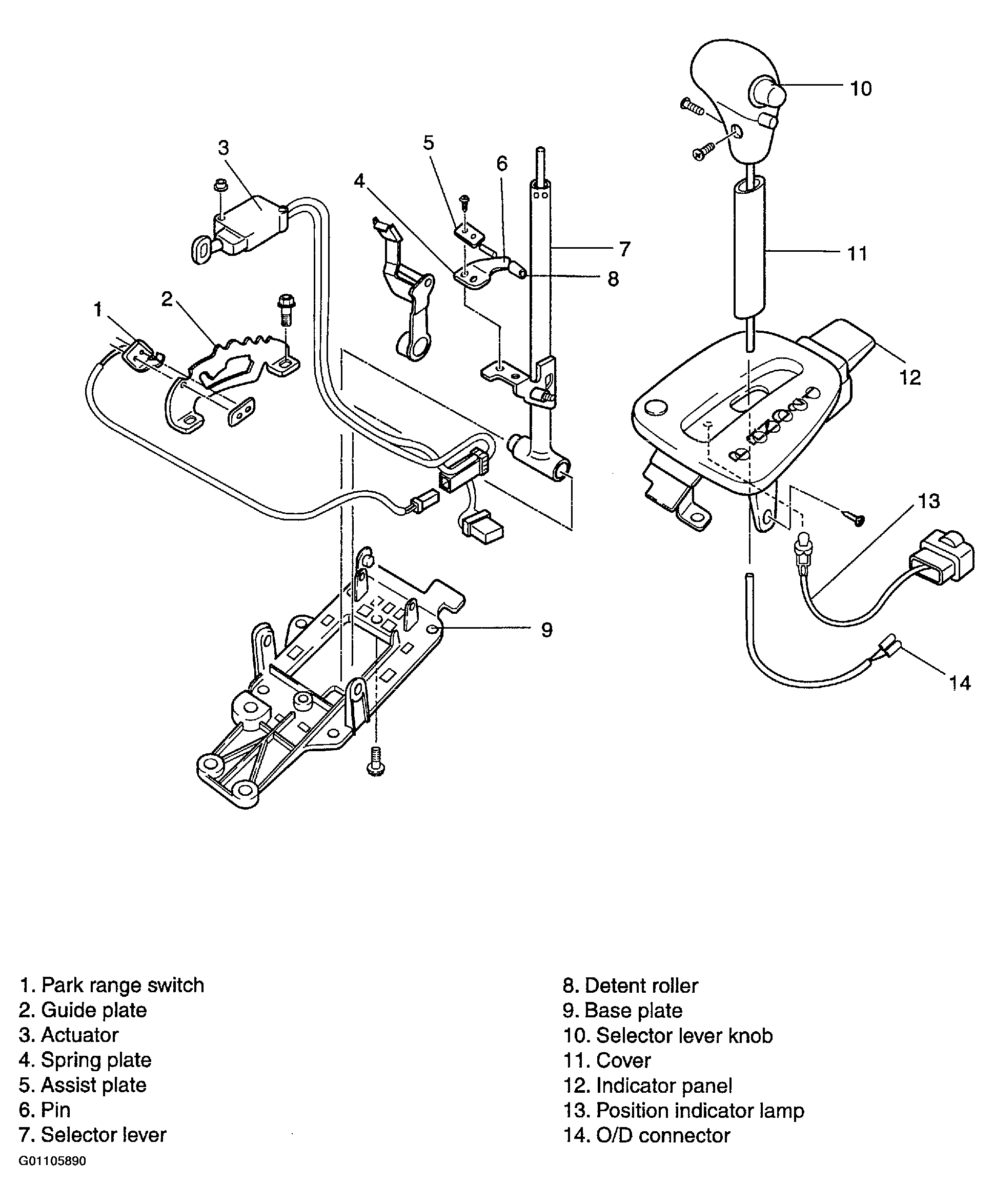

Fig 2: Illustrating Shift Lever Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
