Operation inspection

NOTE: Shift selector lever from P range to other ranges with ignition switch ON and brake pedal depressed.

Verify that selector lever can only be shifted as shown in figure.
Verify that there is a click at each range when shifted from P to 1 range.

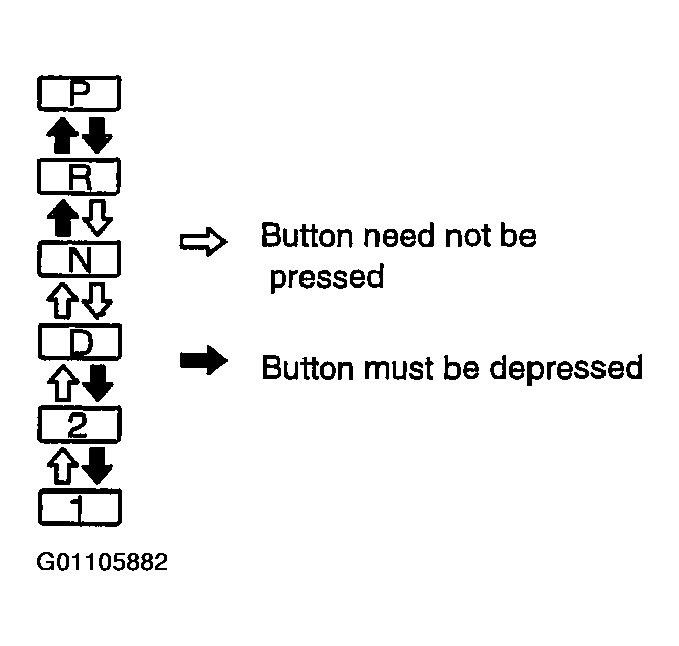

Fig 1: Identifying Selector Lever Button Positions
Courtesy of KIA MOTORS AMERICA, INC.
Verify that positions of selector lever and indicator are aligned.
Verify that button returns smoothly when pushed.
