Selector Lever: Adjustment

  1. Shift selector lever to P range.

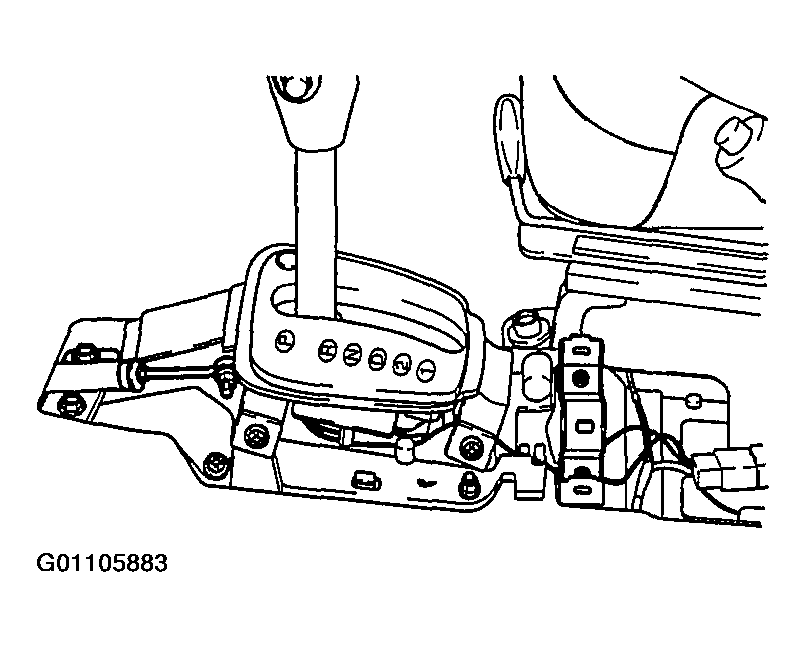

    Fig 1: Illustrating Selector Lever
    G01105883Courtesy of KIA MOTORS AMERICA, INC.
  2. Loosen the selector cable adjust nut at the transaxle side then verify that the position of selector lever is P range. (If not, turn the adjust nut to P range.).

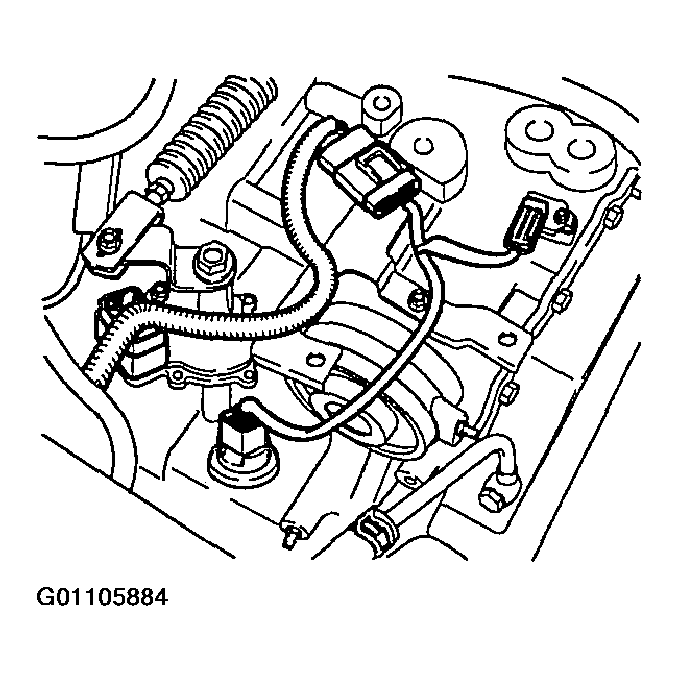

    Fig 2: Illustrating Selector Lever Adjuster
    G01105884Courtesy of KIA MOTORS AMERICA, INC.
  3. Tighten the selector cable adjust nut at the transaxle side.

    Tightening torque:

    5.8~8.0 lb. ft (7.8~10.8 N.m, 0.8~1.1 kg.m)
