O/D Off Switch

  1. Turn ignition switch ON.
  2. Verify that the O/D OFF indicator light is not illuminated. Depress O/D OFF switch and verify that the O/D OFF indicator light illuminates.

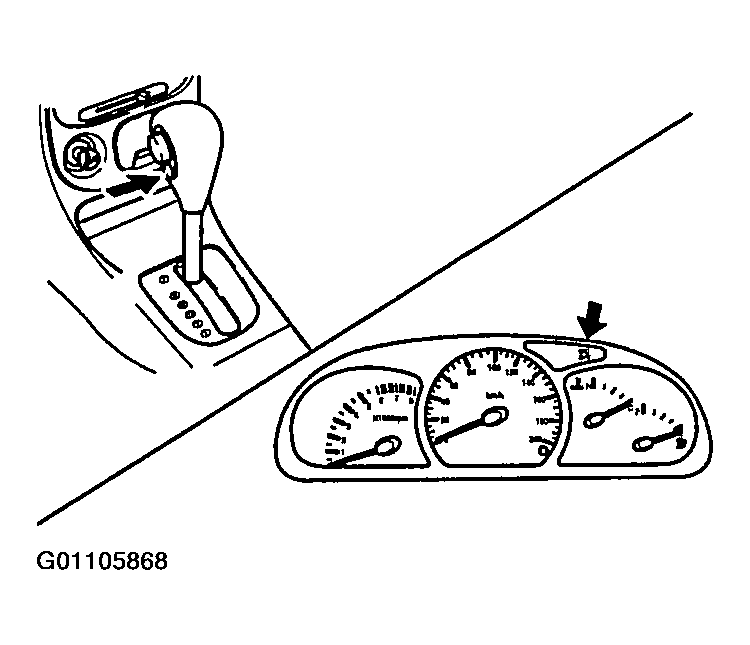

    Fig 1: Testing O/D Off Switch
    G01105868Courtesy of KIA MOTORS AMERICA, INC.
  3. If O/D OFF indicator light does not operate, continue with inspection of voltage test.
