Auto Transaxle (Electrical System): Inspection

Voltage

1. Remove Console.
2. Turn ignition switch ON.
3. Measure voltage at O/D switch connector.

   B+: Battery Positive Voltage

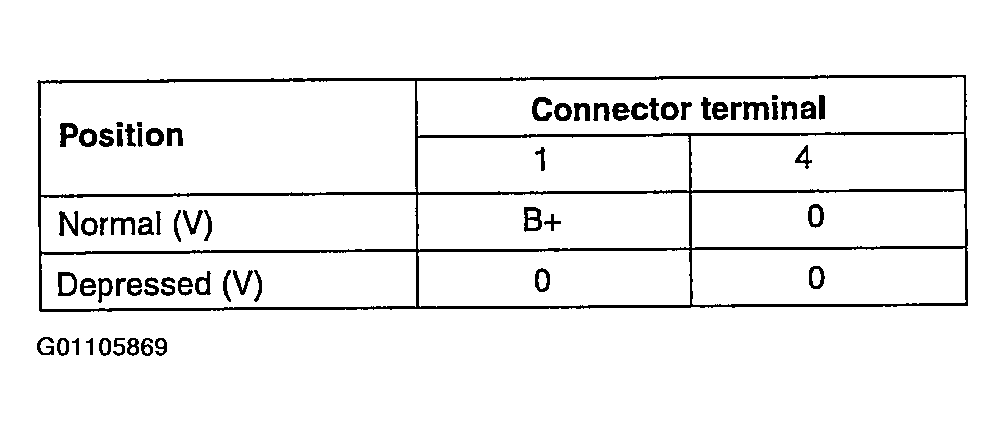

   Fig 1: Switch Voltage Specification Chart

   Courtesy of KIA MOTORS AMERICA, INC.
4. If not as specified, check for continuity to ground at O/D switch.

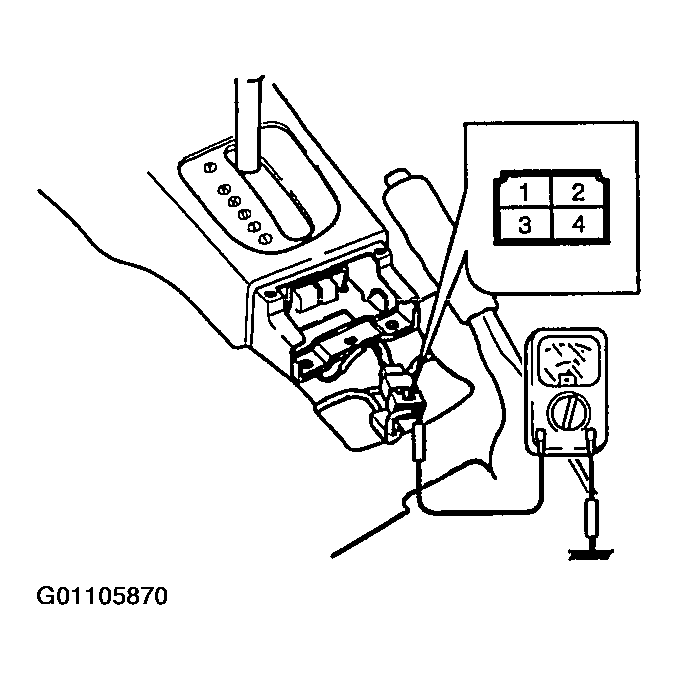

   Fig 2: Testing Switch Continuity To Ground

   Courtesy of KIA MOTORS AMERICA, INC.
