Continuity Inspection

  1. Disconnect negative battery cable.
  2. Disconnect O/D switch connector.
  3. Check for continuity at O/D switch terminal H-05.

    O-O: Continuity

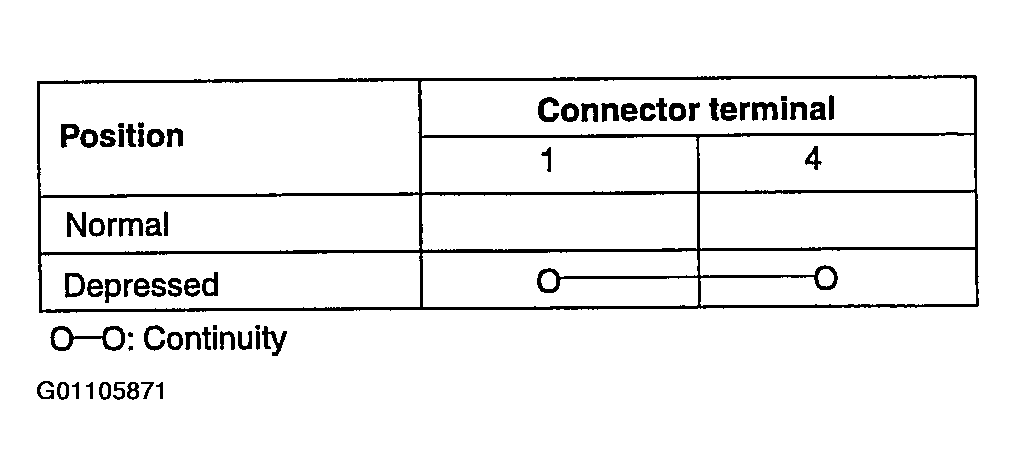

    Fig 1: Testing Switch Continuity
    G01105871Courtesy of KIA MOTORS AMERICA, INC.
  4. Replace selector lever knob if not as specified.
  5. Check wiring harness for continuity if switch is operating correctly (O/D switch to transaxle control module, O/D switch to body ground).

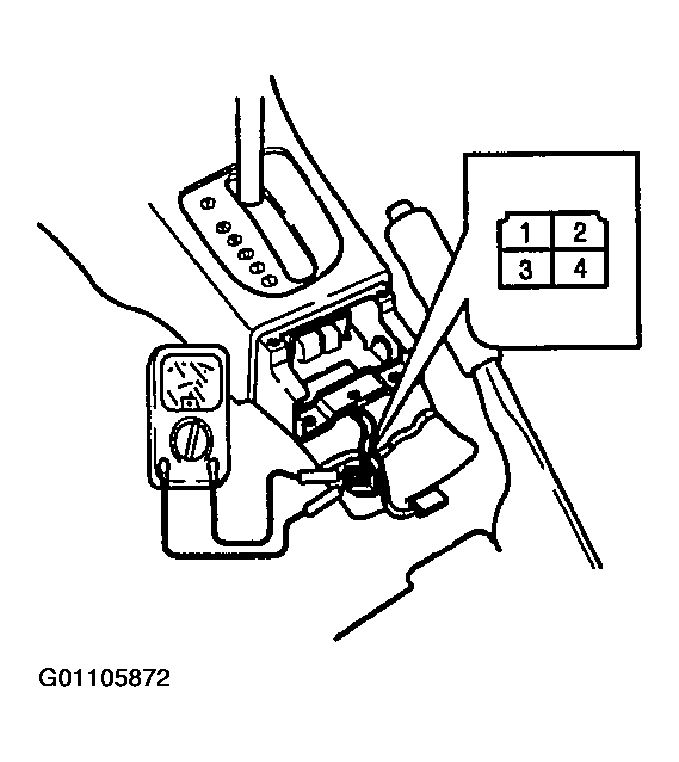

    Fig 2: Testing Switch Continuity To Control Module & Ground
    G01105872Courtesy of KIA MOTORS AMERICA, INC.
  6. Connect O/D switch connector.
  7. Install console.
  8. Connect negative battery cable.


  1. Disconnect negative battery cable.
  2. Disconnect transaxle range switch connector.
  3. Check for continuity at transaxle range switch.
    Fig 1: Identifying Range Switch Connector Pinout
    G01105875Courtesy of KIA MOTORS AMERICA, INC.

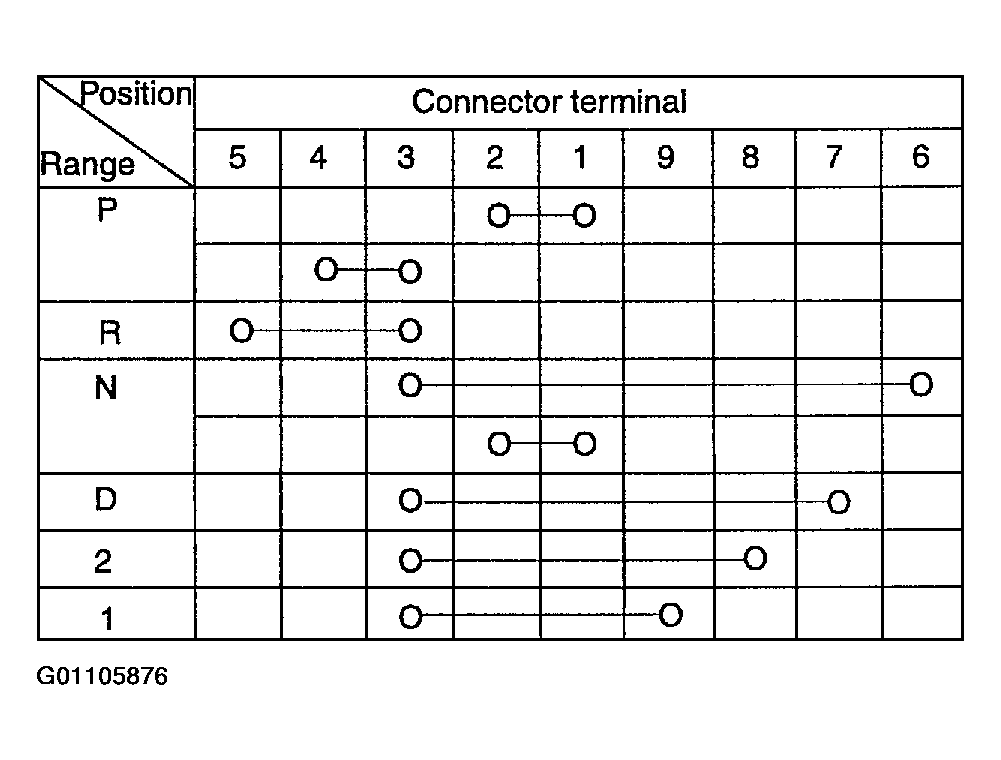

    Fig 2: Range Switch Continuity Chart
    G01105876Courtesy of KIA MOTORS AMERICA, INC.
  4. If not as specified, replace or adjust transaxle range switch.
  5. Connect transaxle range switch connector.
  6. Connect negative battery cable.


  1. Disconnect 55-pin connector from transaxle control module.
  2. Check continuity between terminals A, D, G and B and C ground.
  3. If not correct, check wiring for an open or short circuit.
