ATF Temperature Sensor

Resistance inspection

1. Remove air cleaner and fresh air duct.
2. Connect ohmmeter between terminals 5 and 8.
   Fig 1: Identifying ATF Temperature Sensor Connector Pinout

   Courtesy of KIA MOTORS AMERICA, INC.
3. Measure resistance while warming up ATF (driving vehicle).
4. Verify that the resistance drops as shown in following figures.

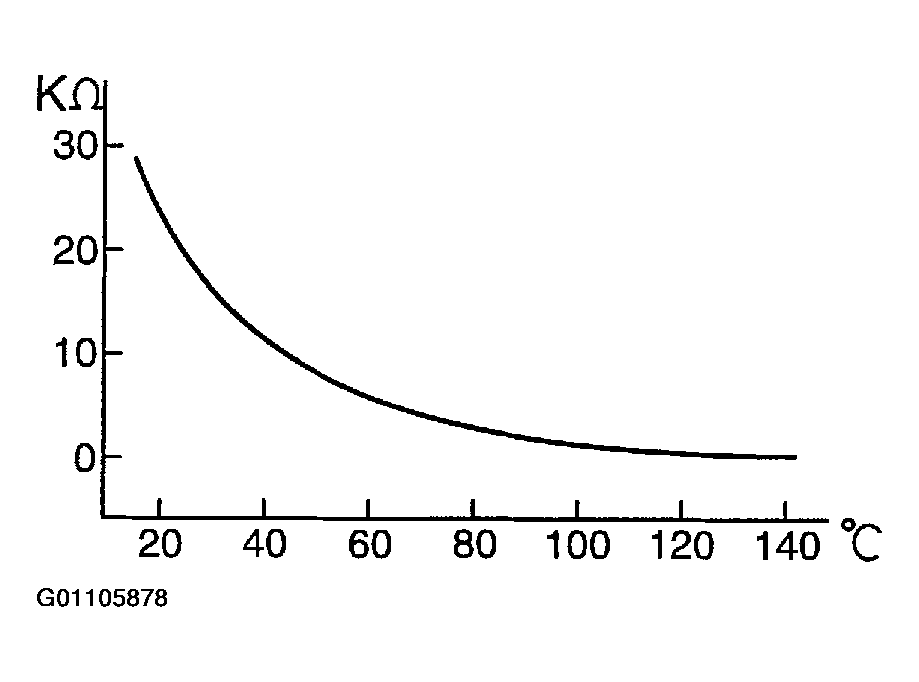

   Fig 2: Transaxle Fluid Temperature Sensor Continuity Graph

   Courtesy of KIA MOTORS AMERICA, INC.

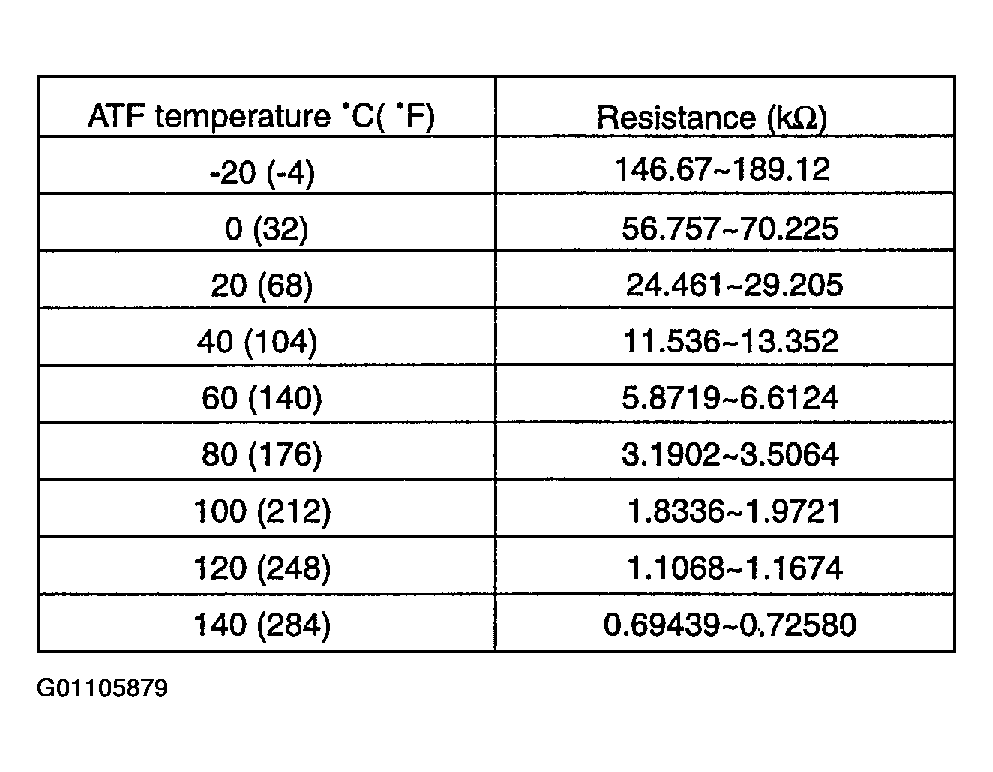

   Fig 3: Transaxle Fluid Temperature Sensor Continuity Chart

   Courtesy of KIA MOTORS AMERICA, INC.
5. If not as specified, replace transaxle fluid temperature sensor and connector wiring as an assembly.
6. Install air cleaner and fresh air duct.
